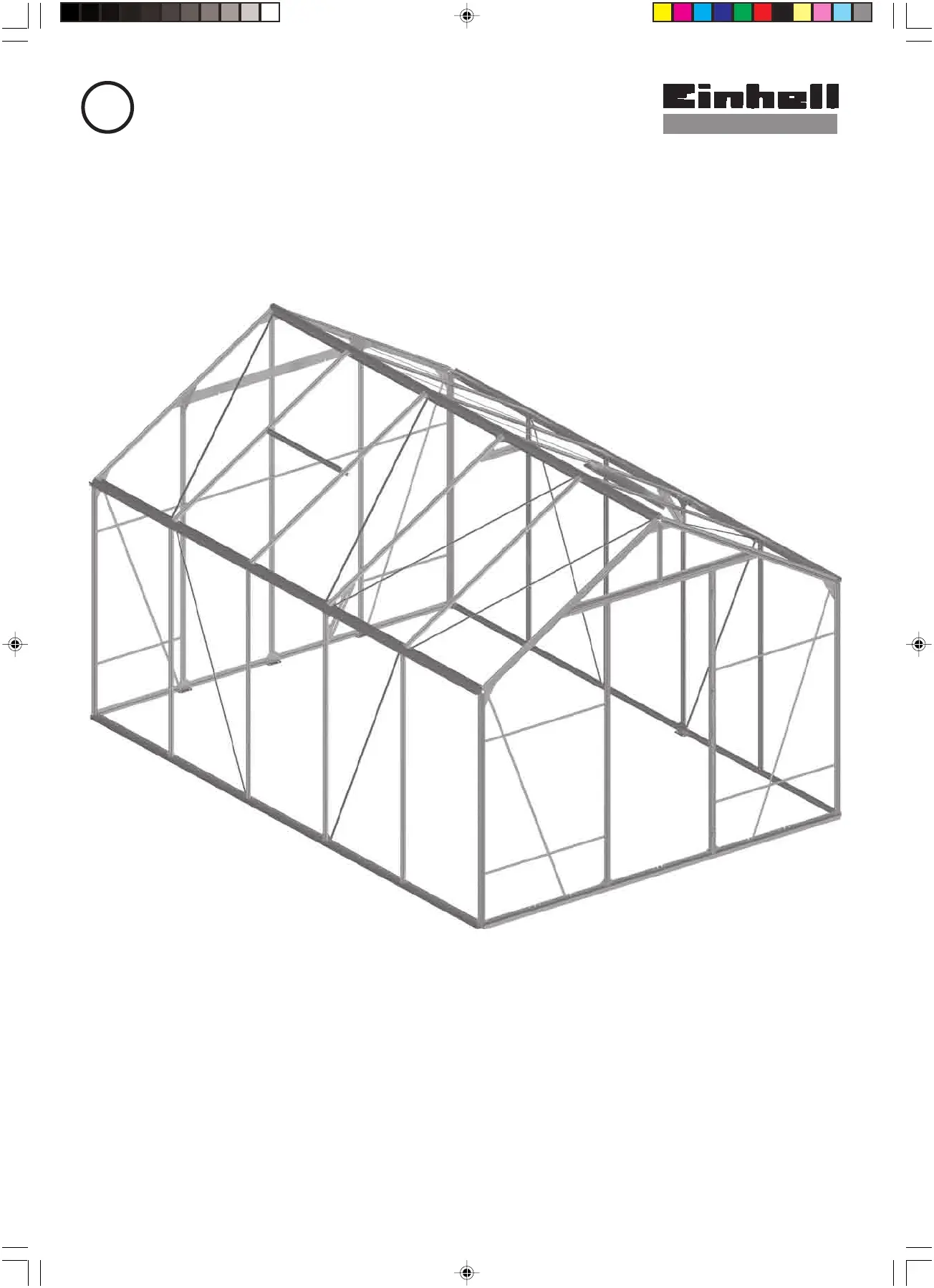

Illustration: Greenhouse with 5 panels / Figure: Serre à 5 pans / Afbeelding: serre met 5 velden
Bild: Växthus med fem fält / Figura: serra a 5 pannelli / Obzek: Skleník 5 polí / Obrázok: Sklek s 5 poľami
OPAL / SMARAGD / RUBIN
Assembly Instructions Part 1: Aluminum profiles page 3
Instructions de montage, partie 1: Profils en aluminium page 13
Montage-instructies deel 1: aluminiumprofielen pagina 23
Monteringsanvisningar del 1: Aluminiumprofiler sida 33
Istruzioni per il montaggio Parte 1: Profilati in alluminio pagina 43
Montážní návod část 1: Hliníkoprofily strana 53
Návod na montáž časť 1: Hliníko profily strana 63
GB
F
NL
S
I
CZ
SK
ABA_OSR_Teil1_Titel+GB.pmd 04.04.2006, 15:041
2
ABA_OSR_Teil1_Titel+GB.pmd 04.04.2006, 15:042
3
Important safety instructions for installation
•We recommend that the installation should be performed
by 2 persons.
•To prevent the risk of accidents, please keep children
at a safe distance while installing the greenhouse.
•Always wear protective gloves during installation of the
aluminum profiles. This will protect your hands
against the risk of being cut or trapped.
•Once you have fully assembled the greenhouse, retighten
all of the nuts and bolts with an open-ended spanner
or a ring spanner.
Note
The manufacturer cannot be held liable for damages due to
storm, wind, water or snow loads. No guarantee is offered
in terms of compensation for consequential damage or
financial losses. We reserve the right to make changes to
the product as part of our process of continuous technical
improvement. This may result in minor differences in the
descriptions and/or illustrations.
If any component damage is evident then the affected
components should be replaced with genuine replacement
parts. A complete list of individual replacement parts can
be found in part 2 of the assembly instructions.
Assembly and safety information / list of tools
Dear customer,
Thank you for choosing an Einhell product. We hope that
you enjoy using your greenhouse. This aluminum
greenhouse is a product which has been designed with the
greatest of care. Not only does it feature extremely sturdy
profiles, but its compact and modular design allows you to
assemble it in next to no time.
These assembly instructions are split into two parts –
Aluminum Profiles“ and „Plastic Web Panels“. Before you
set up the greenhouse, please take the time to carefully
read through both parts of these assembly instructions to
avoid damaging the equipment or setting it up incorrectly.
Once you have finished setting up the greenhouse, please
keep the instructions safe for future reference.
Aluminum profiles:
The individual article numbers are stamped into the rele-
vant aluminum profiles. Please check the stamped
numbers before assembling individual profiles.
Please ensure that all packaging materials are recycled
through the appropriate channels.
Safety
stepladder
Spirit levelTape measure
or folding rule
Drill or cordless
screwdriver
ScissorsMasonry drill
Ø 2.0 mm drill bit
Socket wrench Rubber malletOpen-ended spanner
or ring spanner
(size 10 / 13)
Allen key
(size 4)
Phillips
screwdriver
(size 2-3)
Flat blade
screwdriver
(size 2-3)
size 7
size 10
List of toolsList of toolsList of toolsList of toolsList of tools
You will require the following tools for assembly and installation:
Please note:
All bags of components for installation and assembly contain spare nuts and bolts.
When assembling the greenhouse, make sure that the profiles are all perfectly square.
Check the horizontal and vertical positions of the profiles with a spirit level. Make sure that all profiles are
assembled in their defined end positions, pushed together as far as they will go.
!
Notes on the assembly instructions:
In the assembly instructions, the 5-panel model (2 panels + 3 panels) serves as a reference model.
The overview diagrams all show this model. The other greenhouses are only different to this model in terms
of the number of side panels. If you have purchased one of the other models, please refer to the relevant
assembly instructions for your greenhouse.
!
GB
ABA_OSR_Teil1_Titel+GB.pmd 04.04.2006, 15:043
