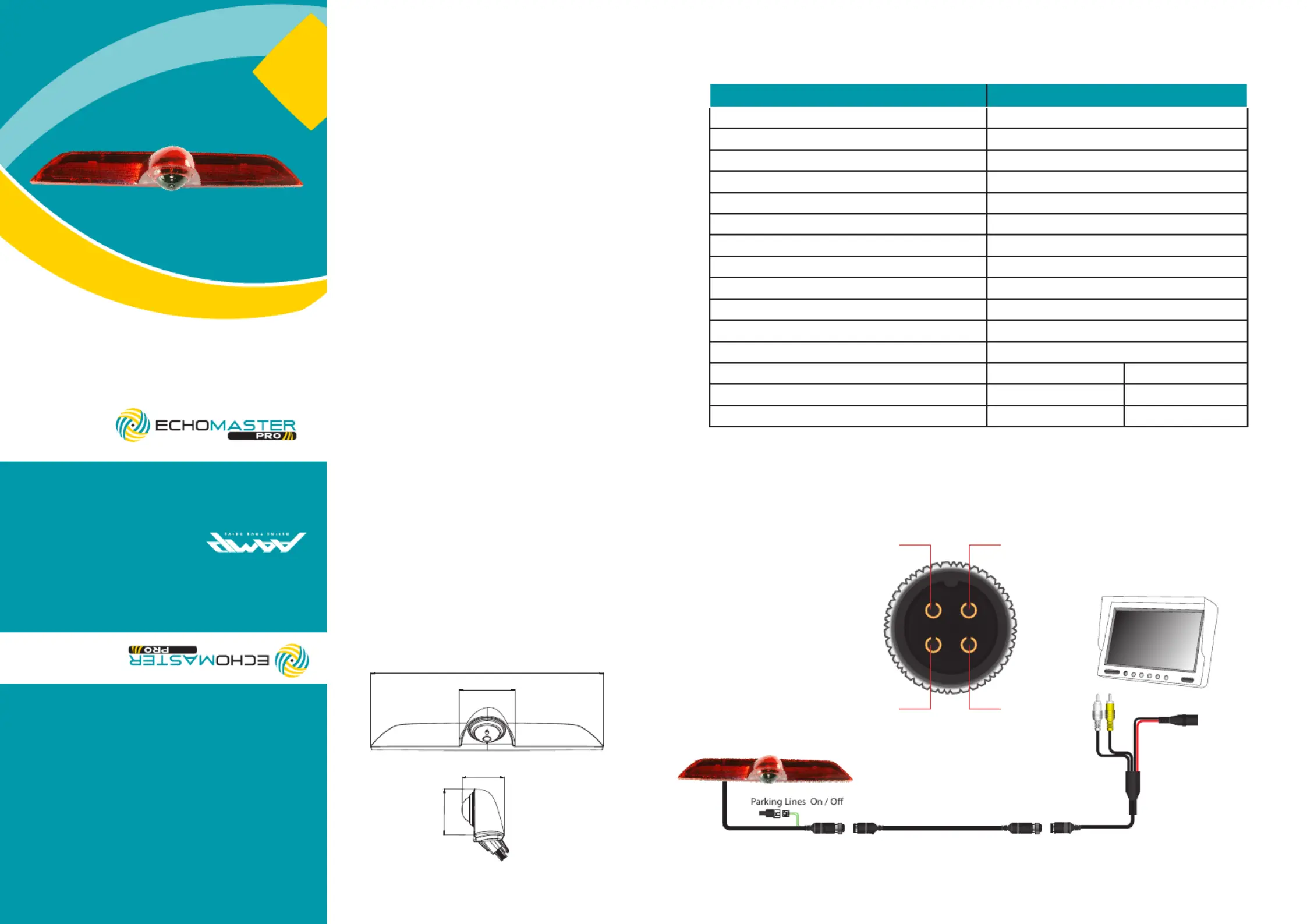

User Manual
3rd Brake Light Camera for
Fullsize Ford Transit (2014-18)
Introduction
Thank you for purchasing your EchoMaster Pro
automotive camera.
The following part numbers are supported:
u PCAM-FFT14-P
u PCAM-FFT14-N
EchoMaster cameras are designed to improve safety
during driving by providing high quality images of
surrounding areas and obstacles in the vicinity of the
vehicle. They will also improve vehicle maneuvering
capability by displaying blind spots not normally visible
to the driver.
Please ensure you read and understand all aspects
of this manual before tting or using your EchoMaster
Camera. Choose a suitable mounting place dependent
on the application. Ensure that there are no wiring
harnesses or hoses/pipes located behind this panel
before drilling.
Key Features
u 1/3” CMOS Sensor
u Operates at 0.1 LUX minimum, 0 LUX with IR night vision
u IP68 Rated
u 170 Degree Viewing Angle
Box Contents
u Camera
u User Manual
u Wiring Harness
Wiring Diagram & Pin Out
Dimensions (mm)
SpeciïŹcations
PCAM-FFT14-P I PCAM-FFT14-N
Sensor Type 1/3” CMOS
LEDs 6
Illumination 0.1 LUX minimum, 0 LUX with IR night vision
Viewing Angle 170 degrees
Mirror Image Yes
Normal View No
Water/Debris-Proof IP68
Audio Yes
Power Supply 9-16V DC
Current <150mA
Working Temperature -30ÂșC - +70ÂșC
Dimensions (mm) D (76.5) x W (390 x H (70.5)
System PAL NTSC
TV Lines 580 580
Resolution 762 x 504 762 x 504
1
23
4
POWER +12V VIDEO
AUDIOGROUND
1
2 3
4
10M Included or 15M (option)
VIDEOAUDIO
Parking Lines On / O (Green)
GND (Black)
+12V (Red)
390
70.5
76.5
