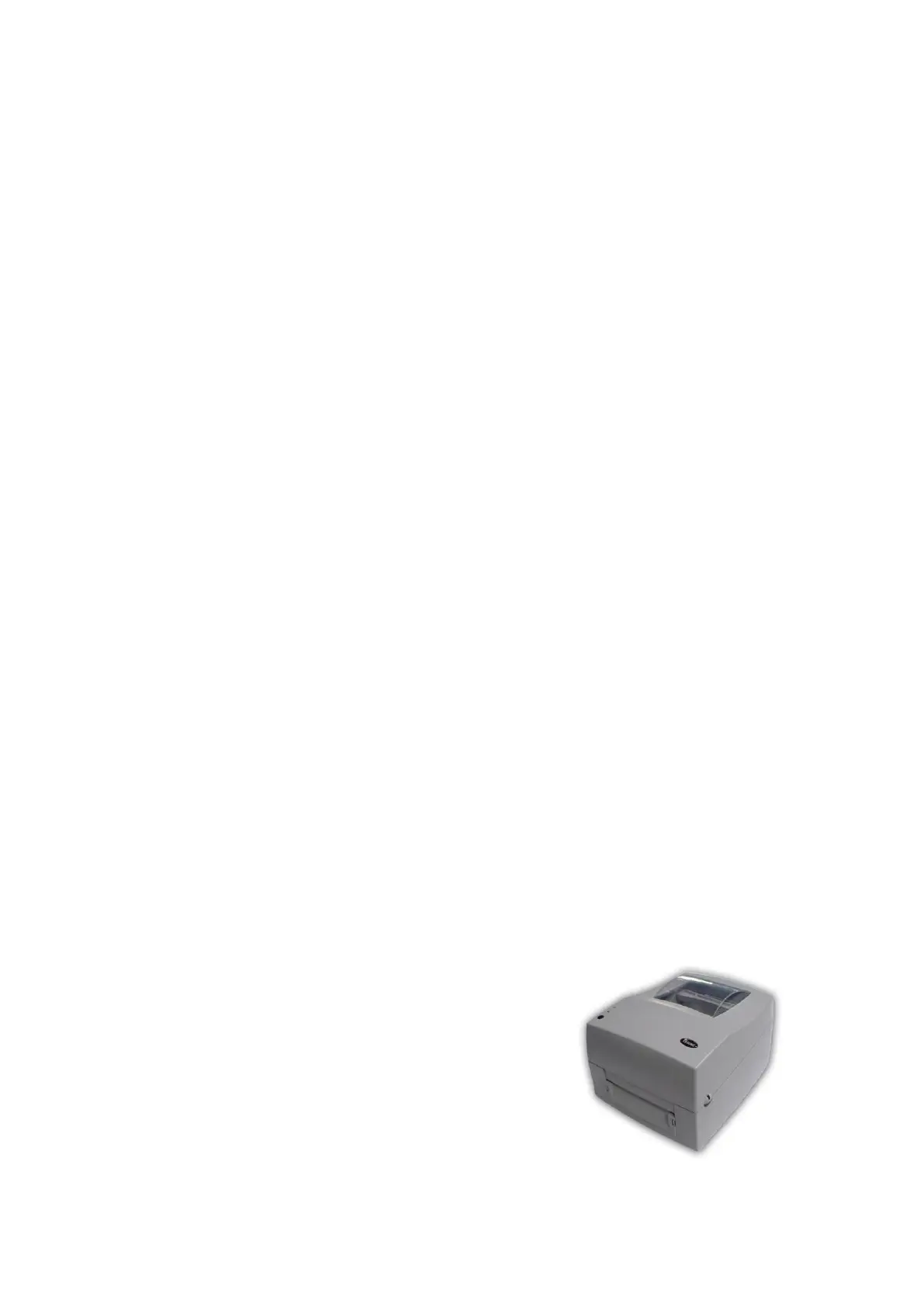

EC- - FT 420
BARCODE LABEL PRINTER
User’s Manual
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/ec-line/ec-ft-420/html/bg2.png)
EC FT- Barcode Printer 420 User Manual ® Copyright 2010 P. 1
1 General
1.1 Printer Accessories
1.2 General Specifications
1.3 Communicate Interface
1.4 Printer Parts
2 PRINTER INSTALLATIONS
2.1 Ribbon Installation
2.2 Label Installation
2.3 Label Roll Core
2.4 Installation Instruction
2.5 PC Connection
3 Control Panel
3.1 FEED Key
3.2 Notice
4 Maintenance and Adjustment
4.1 Thermal Print Head Cleaning
4.2 Troubleshooting
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/ec-line/ec-ft-420/html/bg3.png)
EC FT- Barcode Printer 420 User Manual ® Copyright 2010 P. 2
1. General
1.1. Printer Accessories
After unpacking, please check the accessories that come with the package and store
appropriately.
1
Barcode Printer
2
Power Cord
3
Printer Cable (Parallel)
4
Label Axis
5
Ribbon Axis X 2 Pieces
6
Empty Ribbon Roll
7
Label
8
Ribbon Axis
9
CD
10
Warranty Card
1.2. General Specifications
Model
FT-420
Resolution
203dpi/ (8 dot/mm)
Print
Model
Thermal Transfer / Direct Thermal
CPU
32bit
Sensor
Type :Label gap and black mark sensing
Detection: Label length auto sensing or program command
setting
Print Speed
50.8mm(2.0inch)/Sec 101.6mm(4.0inch)/Sec —
Print Length
1727 mm(68inch )
Print Width
25 mm(1inch) ~ 104 mm(4.10inch)
Media
Paper Roll External Diameter: Maximum Diameter 105mm
Paper Roll Axis: 26mm
Paper Width:25mm 110mm —
Paper Thickness:0.06mm 0.3mm —
Media Type: Label gap, Back Mark, Continuous
Ribbon
Types Outward Roll (wax hybrid resin) :
Length 300 M :
External Diameter: 64mm(Max)
Core Inner Diameter: 25.4 mm (1Inch. )
Width:30 mm to 110 mm (1.18 Inch. To 4.33 Inch.)
