1. Do not use chlorine or caustic chemicals, such as laundry bleach or drain-opening types,
in the system. These products damage the seals in toilets and dump valves.
2. Do not permit foreign objects (paper towels, paper cups, diapers, sanitary napkins, etc.)
to be ushed through the toilet.
3. Mechanical seal toilets, like Dometic units, are designed to only discharge directly into
a holding tank. Horizontal pipe runs as found in conventional residential or commercial
plumbing systems cannot be accommodated.
4. Toilet bowl must be regularly cleaned and winterized according to “Cleaning” and
“Winterization and Storage” procedures or your warranty coverage may be voided.
Important Information Before Operation
To prepare the Dometic toilet for use, check to be sure water supply to the toilet is
connected. Turn on water supply and check system for leaks. Flush toilet and check for
leaks.
To properly use the Dometic toilet, follow these simple instructions:
1. To add water to the toilet, lift or raise
the ush pedal until desired water level is
reached. Generally, more water is required
only when ushing solids.
2. To flush toilet, push pedal all the way down
until contents leave toilet bowl. Water ow
pressures vary at different locations,
therefore holding the ush pedal down for
4-8 seconds may be required. Minimum
ow at the toilet of two gpm (7.6 lpm) is
required for proper rim and bowl wash.
3. Release ush pedal by allowing it to snap back,
which permits positive sealing around the ush ball.
4. A small amount of water should remain in bowl.
Note
Holding ush pedal down longer than necessary results in excessive water use.
Operation
Toilet Model Identification
The model identication label is located on
the toilet base and will show the model
number and serial number. For model 210
and 510H toilets, remove base cover to
locate identication label (see Warranty).

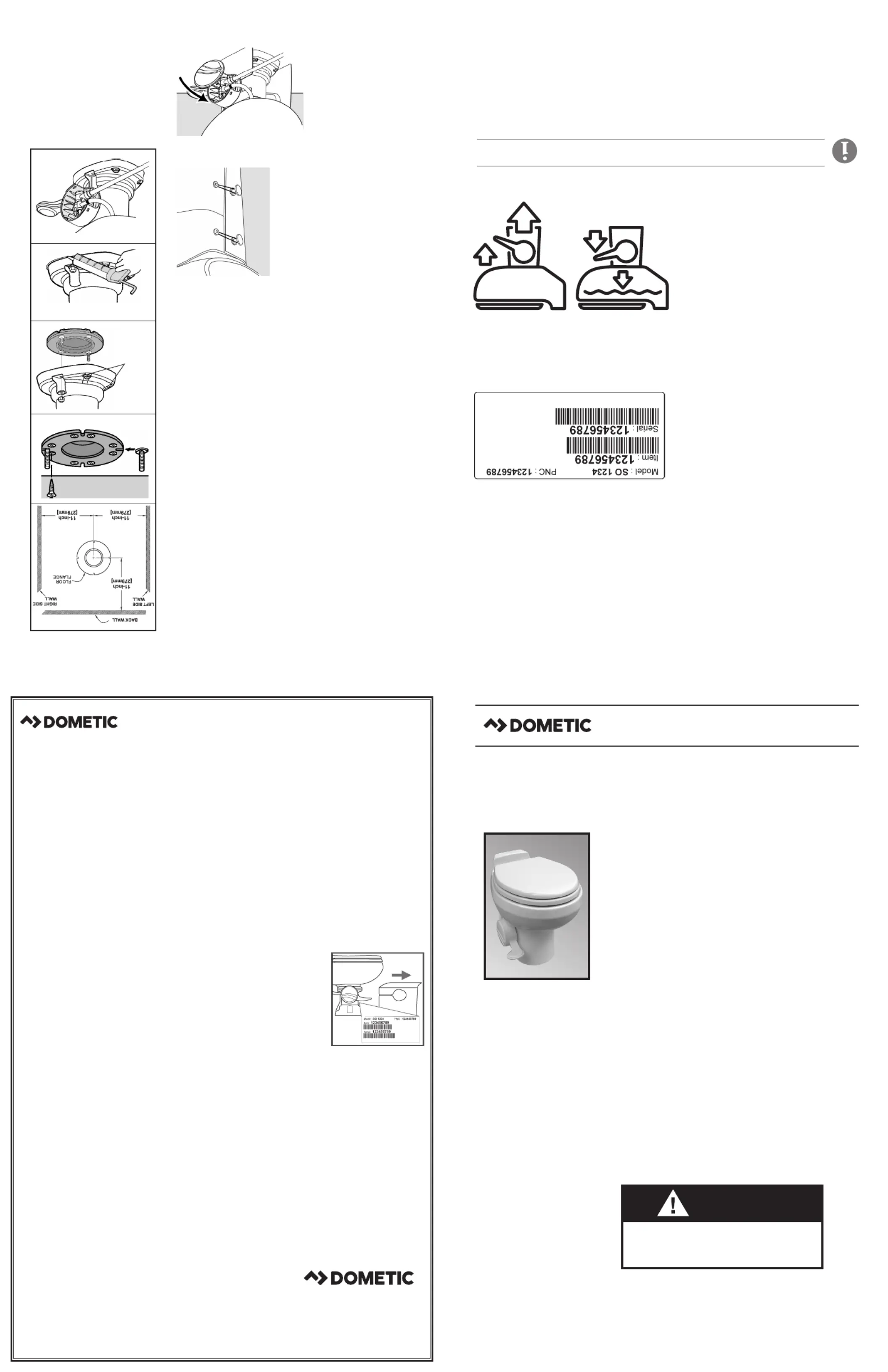

Installation
1. To replace an older toilet, turn off water supply to toilet.
Disconnect water line at toilet water valve. Unscrew oor bolt
nuts and remove toilet. Discard old oor seal and mounting
bolts. The old oor ange may be used if it is in good
condition and fastener holes are positioned as shown in
Figure A. Make sure center of oor ange is at least 11 inches
from back wall (Figure A).
2. If installing new oor ange, make certain that the toilet
mounting bolts align properly with Dometic toilet mounting
pattern (Figure B).
3. Secure ange to oor using at least four at-head screws (one
each at the front, back, right and left sides of ange) through
countersunk holes. Insert oor bolts into slotted holes at right
and left sides of ange (Figure B).
4. Position oor seal by pressing the oor bolts up through holes
in the seal.
5. Set toilet in place with bolts protruding up through
mounting holes in base (Figure C).
6. Install washers and hex nuts provided with toilet. Snug nuts
down equally with standard 7/16-inch open end wrench.
Install two wood screws provided in two holes at rear of base.
(Figure C).
7. If toilet is being installed in a shower stall, apply a 1/4-inch
bead of glazing compound around the perimeter of the base
(Figure D).
8. Connect water supply line to water valve (1/2 in. NPT) inlet
using appropriate ttings or an extension (Figure E).
9. Turn on water supply and ush toilet to test for leaks.
10. Attach pedal cover to ush pedal (see instructions below) after
making sure there are no leaks at connections.
11. FOR MODEL 510H, put base cover in front of toilet base,
aligning ush pedal with opening on side of cover. Push base
cover against front of base, making sure it does not interfere
with ush pedal operation. Fasten two sides together in back
of base using elastic bands.
Fig. D
Insert
two
wood
screws
in rear
of base.
Fig. B
Fig. C
Fig. E
Fig. A
FRONT
Attaching Pedal Cover
1. Align cover with pedal
and press into place
so that tab locks into
space at rear of pedal.
2. To release cover, press
on tab at back of
pedal and pull off.
COVER
510H
Dometic®
Gravity-Discharge Toilets
INSTRUCTION MANUAL
This manual must be read and understood before
adjustment, maintenance, or service is performed.
Modification of this product can result in property
damage.
WARNING
IMPORTANT NOTICE
Dometic® toilet systems must be
installed according to Dometic’s
recommended procedures.
Limited Warranty
THE SELLER NAMED BELOW MAKES THE FOLLOWING WARRANTY WITH RESPECT TO
DOMETIC GRAVITY-FLUSH MODEL 510H
1. TWO-YEAR LIMITED WARRANTY
1A. This Limited Warranty will be in effect for two years from the date of purchase.
1B. This Limited Warranty is made only to the First Purchaser (hereinafter called the “Original Purchaser”) who
acquired the product for Original Purchaser’s personal, family, or household-type use. The Original Pur-
chaser should retain a copy of the sales receipt or invoice as evidence of the date of purchase because
proof of purchase is required to obtain warranty service.
1C. If this product is placed in commercial or business use, it will be warranted, to the Original Purchaser only, to
be free of defects in material and workmanship for a period of 90 days from the date of purchase.
1D. This warranty covers all parts of the Dometic toilet which is warranted to be free of defects in material and
workmanship under normal use. This warranty does not cover conditions unrelated to the material and
workmanship of the product. Such unrelated conditions include, but are not limited to, (a) faulty installation
and any damage resulting from such; (b) the need for normal maintenance and any damage resulting from
failure to provide such maintenance; (c) failure to follow Seller’s instructions for use of this product, includ-
ing failure which may result from not following winterization procedures; (d) any accident that results in
damage to this product; (e) scratching or staining of any ceramic or plastic component; and (f) acts of God,
or misuse of any part of this product and any alteration by anyone other than the Seller.
1E. For Original Purchaser (ONLY) to obtain the benets of this Warranty during the 2-year period (for personal
use) or 90-day period (for commercial use), the following shall apply:
(a) Original Purchaser shall contact the local dealer from whom the product
was purchased; or contact the Seller Customer Service Department at
1-800-321-9886 (8 a.m.-5 p.m. ET, USA) and provide the local dealer or
Seller Customer Service Department with sales receipt or invoice, product
model and serial number from product. The product model identication
label is located on the toilet base under the pedestal cover (see illustration).
(b) If product, while still under warranty, is returned to local dealer where
purchased, the local dealer will repair, replace or refund the product per this
Warranty and as authorized by the Seller. Seller will provide necessary
replacement parts or product free of charge to Original Purchaser, including
freight on such replacement parts or product, and Seller will pay direct labor
charges for such repair or replacement.
(c) Under no circumstances will Seller pay or be liable for any of Original Purchaser’s or dealer’s travel
charges or other expenses associated with bringing the product or recreation vehicle to the dealer for re-
pair, for providing dealer with access to the product or vehicle, or for downtime of the product or vehicle.
(d) Original Purchaser may be required to return defective product or parts when requested by Seller;
in such event, Seller will pay related freight costs.
2. THE SELLER DOES NOT AUTHORIZE ANY PERSON OR COMPANY TO CREATE OR EXTEND ANY
WARRANTY OBLIGATIONS OR LIABILITY ON ITS BEHALF.
3. REPAIR OR REPLACEMENT OF, OR REFUND FOR, DEFECTIVE PRODUCT, AT SELLER’S OPTION,
SHALL BE THE ORIGINAL PURCHASER’S SOLE REMEDY UNDER THIS LIMITED WARRANTY.
IN NO EVENT SHALL SELLER BE LIABLE FOR PURCHASER’S INCIDENTAL OR CONSEQUENTIAL
DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
4. SELLER DISCLAIMS ALL OTHER WARRANTIES WITH RESPECT TO THE PRODUCT, WHETHER
EXPRESS OR IMPLIED, AND SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW
LIMITATIONS ON IMPLIED WARRANTIES OR HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMITATION MAY NOT APPLY TO YOU.
5. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM STATE TO STATE.
Location of product ID label
REVISION A
Form No. 600344934 7/17
©2017 Dometic Corporation
Dometic Corporation, Sanitation Division
13128 State Rt. 226, P.O. Box 38
Big Prairie, OH 44611 USA
1-800-321-9886 • Fax: 330-496-3097
www.Dometic.com
Deodorants and Special Tissue
Your Dometic toilet requires the regular addition of a deodorant product to reduce malodors
and to help break down holding tank contents. Several factors should be considered in
selecting a deodorant product.
Liquid or Granulated. Liquid products work more quickly by readily going into solution.
Granulated powder formulations have the advantage of requiring less storage space and are
less likely to leak if the package is inadvertently damaged.
How Much Deodorant and How to Add It. The deodorant is added directly into the toilet
bowl, then ushed into the holding tank. Follow bottle or package instructions. Conditions of
extremely warm weather, longer waste holding time and larger tank capacities may require
more deodorant treatment. Also, to maintain optimum efciency in odor control, the waste
holding tank should be cleaned thoroughly at least once or more each season depending on
use.
Why Not Use Household Toilet Paper in Your Toilet. Household tissues often contain ad-
hesives which bond together the paper bers from which the tissue is made. The adhesives
prevent the tissue from breaking apart, and their use in “ultra-low ow” systems can cause
system clogging. Dometic tissue is especially designed for use in low water toilet systems.
Its rapid dissolving properties minimize the amount of residual paper in the holding tank and
allow deodorizers to work more efciently.
Dometic Brands versus Other Brands. We constantly strive to provide our system own-
ers with effective products that have minimal environmental impact and good value. Many
deodorant products do not measure up to our standards of performance and value.

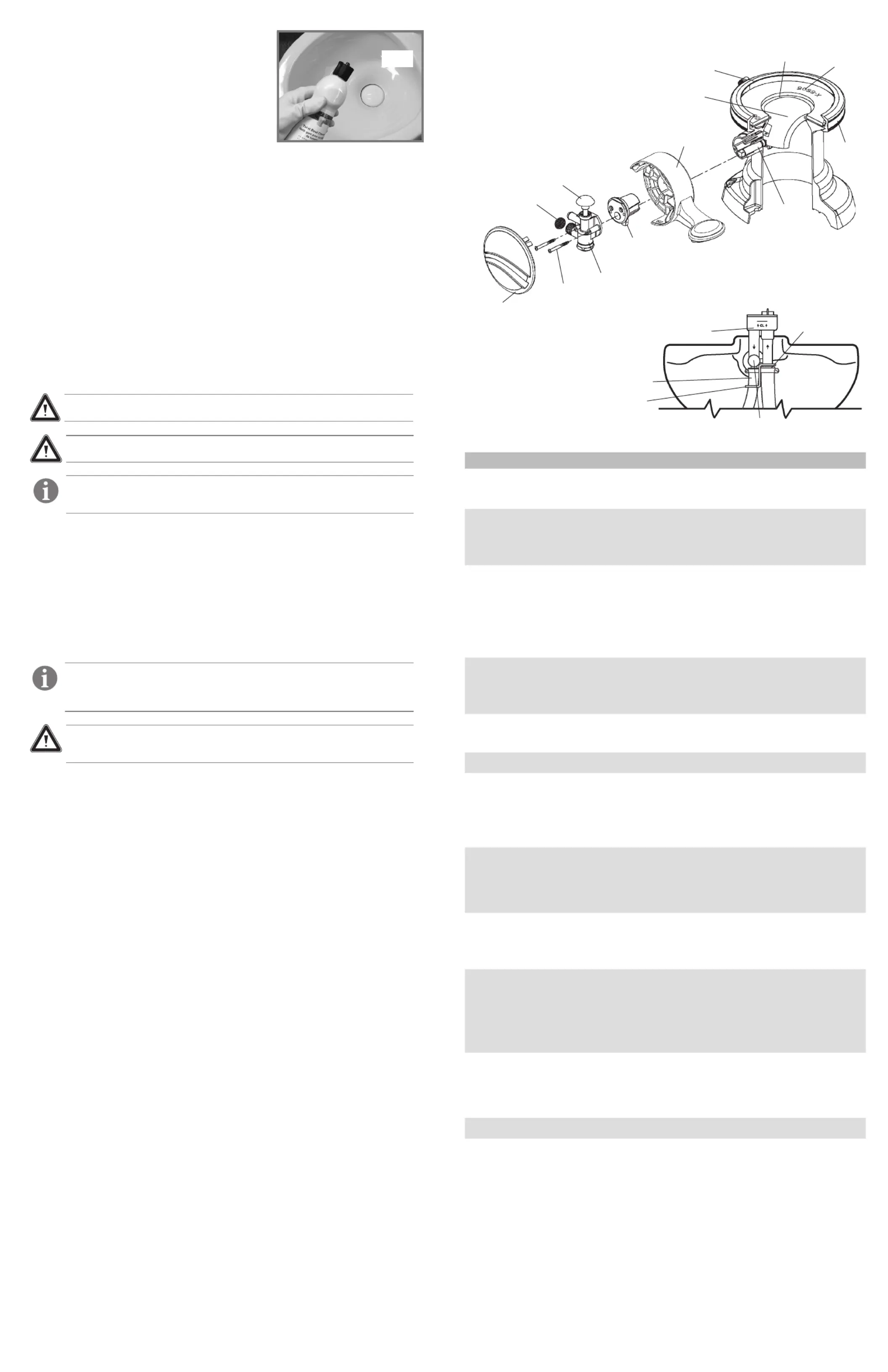

Dometic toilet base
assembly
BAND CLAMP
FASTENER
FLUSH BALL
SPRING
CARTRIDGE
WATER VALVE ASSEMBLY
TOP VALVE CAP
FILTER SCREEN
WATER
VALVE
SCREWS
VALVE BODY
SHAFT
FLUSH PEDAL
PEDAL
COVER
BAND
CLAMP
SEAL DISK
Dometic toilet bowl,
rear view
VACUUM
BREAKER
WATER VALVE HOSE
CONNECTION
VACUUM BREAKER/BOWL CONNECTION
Troubleshooting Guide
HAND SPRAYER
HOSE CONNECTION *
STRAIN RELIEF
BRACKET *
* Applies only to toilet models
supplied with hand sprayers.
Winterization and Storage
When a Dometic toilet is stored for long periods of time or may be exposed to temperatures below
freezing, the toilet must be winterized or stored according to one of the following procedures.
Caution
This toilet is not intended for use when exposed to temperatures below freezing.
Caution
Never use automotive-type antifreeze in freshwater systems.(ethylene glycol)
Note
Use nontoxic antifreeze designated for potable water systems. (propylene glycol)
(See vehicle owner’s manual.)
Storage options
Non-toxic Antifreeze Winterization (recommended method)
1. Pour antifreeze in potable water tank according to instructions from antifreeze manufacturer.
2. Flush toilet several times until antifreeze has owed completely through toilet. For toilets with
hand sprayer, the hand sprayer must be turned on to assure antifreeze is cycled through the
sprayer.
Drain Water from Toilet
1. Turn off water supply to toilet.
2. Remove water supply line from water valve.
3. Place a small container under water valve inlet to catch draining water.
4. Press ush pedal and allow water to completely drain from water valve and vacuum breaker.
5. Leave water line disconnected until threat of freezing temperature is past.
Note
Never leave vehicle or premises unoccupied for extended periods of time with
municipal water supply or onboard water pump turned on when there is a possibility
of freezing temperature.
Caution
Toilet warranty does not cover freeze damaged water valve that may result from
improper winterization.
Problem Possible Cause Service Instruction
1. Toilet emits odor (ush ball
open).
a. Odor emitting from base of toilet.
b. Plugged holding tank vent line.
a. Use Dometic brand tank
deodorants.
b. Clear obstruction from vent line.
2. Water will not stay in bowl. a. Loose band clamp.
b. Improper seal around ush ball
due to dirt or debris on ush ball.
c. Worn or damaged seal.
d. Worn or damaged ush ball.
a. Tighten band clamp fastener.
b. Inspect ush ball for foreign de-
bris. Clean ush ball if needed.
c. Replace seal.
d. Replace ush ball.
3. Flush ball will not close
completely.
a. Too much friction between ush
ball and ball seal.
b. Water valve screws are too tight.
c. Defective spring cartridge.
a. Lubricate between ush ball and
seal with lubricant (e.g. silicone
spray, furniture polish).
b. Loosen screws slightly.
c. Check spring tension by
pushing ush lever down, then
release it suddenly. If lever does
not snap back to original posi-
tion, replace spring cartridge.
4. Flush ball will not open. a. Broken shaft.
b. Shaft not fully engaged in the
spring cartridge.
a. Replace shaft.
b. Rotate ush ball slightly until
shaft lines up with square in
spring cartridge and is fully
engaged.
5. Water does not shut off in toilet
(toilet overows).
a. Worn or defective water valve.
b. Worn or defective spring car-
tridge.
a. Replace water valve.
b. Replace spring cartridge.
6. Hand sprayer leaks. a. Hand sprayer is defective. a. Replace hand sprayer.
7. Water does not enter toilet bowl
properly.
a. Insufcient water ow rate at
toilet.
b. Water valve clogged.
c. Plugged rim wash holes in toilet.
a. Check water ow rate at toilet.
Rate should be 2 gpm
(7.6 lpm) at toilet.
b. Remove and clean screen
located on water valve.
c. Clean holes. If still a problem,
replace toilet bowl.
8. Water is leaking from water
valve.
a. Water valve body cracked due to
freeze damage.
b. Water line connection is loose or
not seated properly.
c. Defective water valve.
d. Stripped threads.
a. Replace water valve.
b. Insure that threads are not
cross-threaded and tighten.
c. Replace water valve.
d. Replace water valve.
9. Water is leaking from
bottom of toilet base.
a. Toilet is not secured to oor.
b. Worn or defective toilet mount-
ing oor seal.
c. Cracked base.
d. Worn or defective oor ange.
a. Tighten toilet mounting bolts.
b. Replace oor seal between oor
ange and toilet base.
c. Replace base assembly.
d. Replace oor ange.
10. Water is leaking from rear of
toilet.
a. Loose vacuum breaker.
b. Damaged or defective vacuum
breaker.
c. Cracked or defective toilet bowl.
a. Make sure vacuum breaker stem
is pushed fully into sealing
grommet in back of bowl.
b. Remove white cap from vacuum
breaker. Flush toilet. If water
leaks during ush, vacuum
breaker needs to be replaced.
c. Replace toilet.
11. Water is leaking from the
base/toilet connection.
a. Band clamp may be loose.
b. Ball/bowl seals may be worn or
defective.
a. Remove plastic base cover (on
applicable models) and tighten
band clamp fastener.
b. Replace ball/bowl seals.
Cleaning
For routine cleaning, use Dometic Toilet Bowl Cleaner. If
this cleaner cannot be found in your area, contact Dometic
for your nearest dealer. If the cleaner is not available, use
most any non-abrasive bathroom and toilet bowl cleaner.
Please follow label instructions.
FLUSH BALL CLEANING: After a period of time, mineral
deposits from hard water may build up on the ush ball or seal,
resulting in a slow water leak. To prevent this, periodically clean
the ush ball and seal.
1. Remove minor debris from the ush ball and seal by slowly pressing and releasing the ush pedal
several times. This will loosen and rinse debris from the surfaces. Repeat several times for
stubborn buildup.
2. If step 1 does not fully clean the ball and seal, clean with a soft bristle brush and Dometic Toilet
Bowl Cleaner. Turn off water supply to toilet. Fully clean the top of the ush ball and under the
seal where it contacts the ush ball.
3. After cleaning underside of seal, apply light downward pressure to top of seal while brushing
around full perimeter of seal.
4. Turn on water supply. Press ush lever to open ush ball, and use brush and water to rinse away
cleanser and loosened deposits.
Fig. A
Produktspezifikationen
| Marke: | Dometic |
| Kategorie: | Toilette |
| Modell: | Traveler 510HS |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Dometic Traveler 510HS benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Toilette Dometic
4 Oktober 2024
24 September 2024
3 September 2024
3 September 2024
2 September 2024
2 September 2024
2 September 2024
2 September 2024
2 September 2024
2 September 2024
Bedienungsanleitung Toilette
- Toilette Sanyo
- Toilette Philips
- Toilette Camry
- Toilette IKEA
- Toilette Coleman
- Toilette Rocktrail
- Toilette Haier
- Toilette Fiamma
- Toilette Easy Home
- Toilette Kohler
- Toilette Thetford
- Toilette Vetus
- Toilette Campingaz
- Toilette Miomare
- Toilette Gustavsberg
- Toilette Jabsco
- Toilette Sanibroyeur
- Toilette Villeroy And Boch
- Toilette Duravit
- Toilette Pressalit
- Toilette Schütte
- Toilette Tiger
- Toilette AXA
- Toilette Kogan
- Toilette Enders
- Toilette SereneLife
- Toilette Geberit
- Toilette Ridgid
- Toilette PolyJohn
- Toilette Summer Infant
- Toilette Sloan
- Toilette Satellite
- Toilette CurAqua
- Toilette Barumi
- Toilette Fienza
- Toilette MCombo
- Toilette TMC
- Toilette TOTO
- Toilette Sunwind
- Toilette Stimex
- Toilette Caroma
Neueste Bedienungsanleitung für -Kategorien-
1 Oktober 2024
1 Oktober 2024
30 September 2024
10 September 2024
6 September 2024
6 September 2024
6 September 2024
6 September 2024
5 September 2024
5 September 2024
