Seite 1/8
Gravity-Discharge Toilet
Operation manual
EN
500 Series
Toilets
Model 111
Toilet
General safety instructions 2 . . . . . . . . . . . . . .
Toilet model identication . . . . . . . . . . . . . . . 2
Operation 2 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 3. . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Winterization and storage 4 - 5. . . . . . . . . . . .
Deodorants and special tissue 5 . . . . . . . . . . .
Customer service 5 . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 6 - 7. . . . . . . . . . . . . . . . . . . .
Limited warranty 8 . . . . . . . . . . . . . . . . . . . . . .
Table of contents
Specifications
Water
Supply
Fitting 0.5 in. NPT
Flow rate 2.0 gpm / 9.5 lpm
minimum
Discharge Floor
ange
3 in./76 mm ID ABS or
PVC ange connection
directly over waste
holding tank
Specications subject to change without notice.
2
To prepare the Dometic toilet for use, check to be sure water supply to the toilet is
connected. Turn on water supply and check system for leaks. Flush toilet and check for leaks.
To properly use the Dometic toilet, follow these simple instructions:
1. To add water to the toilet, lift or raise
the ush pedal until desired water level
is reached. Generally, more water is
required only when ushing solids.
2. To flush toilet, push pedal all the way
down until contents leave toilet bowl.
Water ow pressures vary at different
locations, therefore holding the ush
pedal down for 4-8 seconds may be
required. Minimum ow at the toilet of
two gpm (7.6 lpm) is required for proper
rim and bowl wash.
3. Release ush pedal by allowing it to snap back,
which permits positive sealing around the ush ball.
4. A small amount of water should remain in bowl.
Note
Holding ush pedal down longer than necessary results in excessive water use.
1. Do not use chlorine or caustic chemicals, such as laundry bleach or drain-opening types, in
the system. These products damage the seals in toilets and dump valves.
2. Do not permit foreign objects (paper towels, paper cups, diapers, sanitary napkins, etc.) to
be ushed through the toilet.
3. Mechanical seal toilets, like Dometic units, are designed to only discharge directly into
a holding tank. Horizontal pipe runs as found in conventional residential or commercial
plumbing systems cannot be accommodated.
4. Toilet bowl must be regularly cleaned and winterized according to “Cleaning” and
“Winterization and Storage” procedures or your warranty coverage may be voided.
General Safety Instructions
Operation
Toilet Model Identification
The model identication label is located on
the toilet base under the pedestal cover
and will show the model number and serial
number. Remove base cover to locate
identication label (see page 5).
Caution!
This manual must be read and understood before adjustment, maintenance or service is
performed. Modication of this product can result in property damage.
3

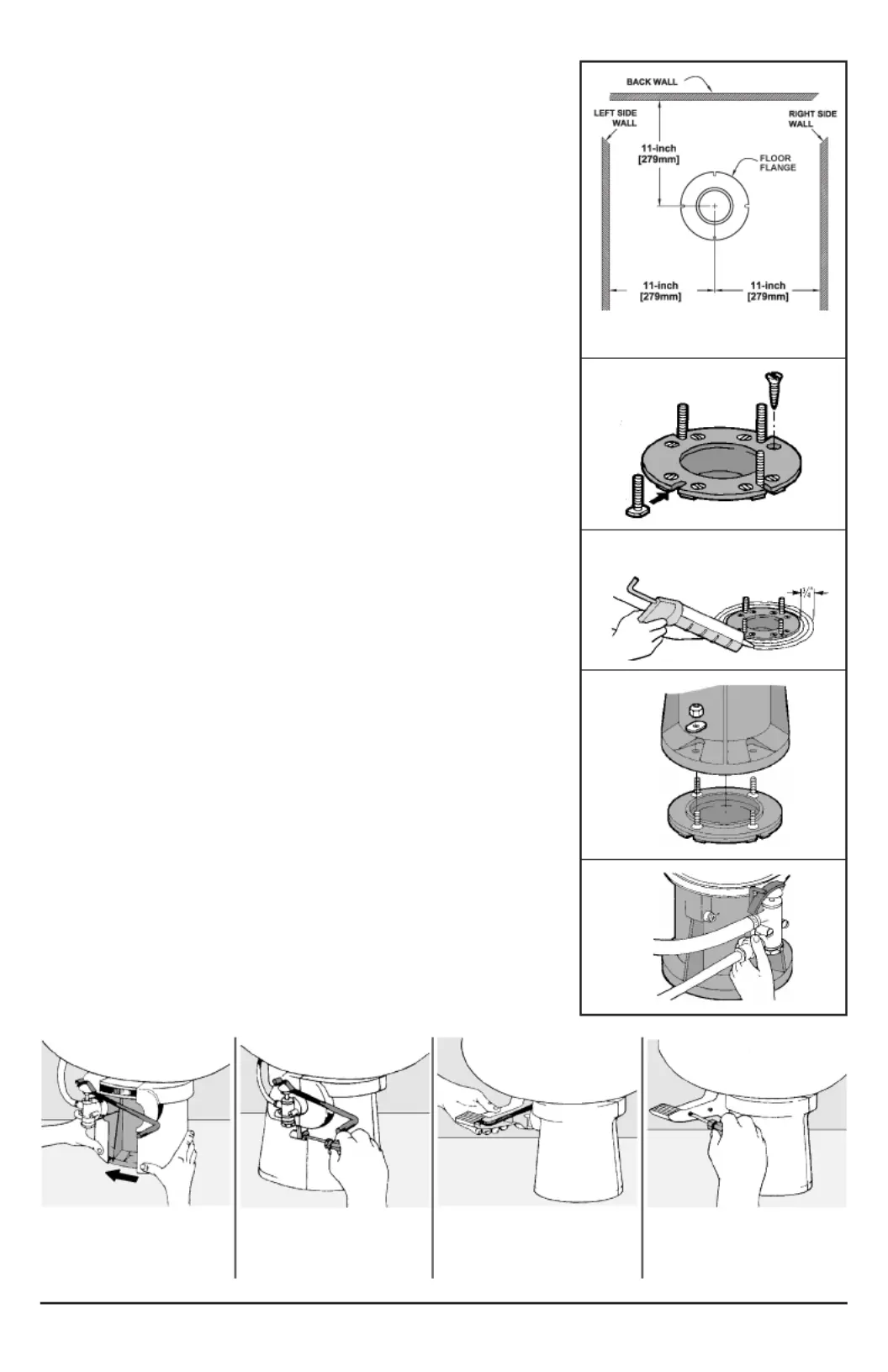

Installation
1. To replace an older toilet, turn off water supply to toilet.
Disconnect water line at toilet water valve. Unscrew oor bolt
nuts and remove toilet. Discard old oor seal and mount-
ing bolts. The old oor ange may be used if it is in good
condition and has fastener holes that are positioned correctly.
Make sure center of oor ange is at least 11 inches
(279 mm) from back wall (Figure A).
NOTE: If old oor ange cannot be used and cannot be
removed, please use a Dometic Universal Mounting Kit, avail-
able from your Dometic dealer.
2. When installing new oor ange, make certain that the toilet
mounting bolts align properly with Dometic toilet mounting
pattern.
3. Secure ange to oor using at head screws through
countersunk holes in ange. Insert oor bolts into slotted
holes in ange (Figure B).
4. If toilet is being installed in a shower stall, apply a 1/4" thick
by 3/4" wide bead of glazing compound around the circum-
ference of the oor ange (Figure C).
5. Dometic toilet models 111, 510 and 511 will accept handicap
or household decorative seats. Remove existing seat and
replace with new seat if desired.
6. Position oor seal by pressing the oor bolts up through
holes in the seal.
7. Set toilet in place with bolts protruding up through mounting
holes in base (Figure D).
8. Install washers and hex nuts provided with toilet. Tighten
nuts down equally with standard 7/16" open end wrench.
Remove excess glazing compound from around base in
shower stall installation.
9. Connect water supply line to water valve (1/2" NPT) inlet
using appropriate ttings or an extension (Figure E).
10. Turn on water supply and ush toilet to test for leaks.
11. Attach pedestal and pedal covers to toilet base
(see instructions below).
Attaching Pedestal and Pedal Cover
2. Tall model – screw
cover together. Short
model – snap together.
1. Wrap pedestal cover
around base so that it
closes as shown.
3. Slide pedal cover onto
foot pedal rod.
4. Secure side plate onto
pedal cover
with screws.
Fig. B
Fig. D
Fig. E
Fig. A
Fig. C
