Seite 1/37

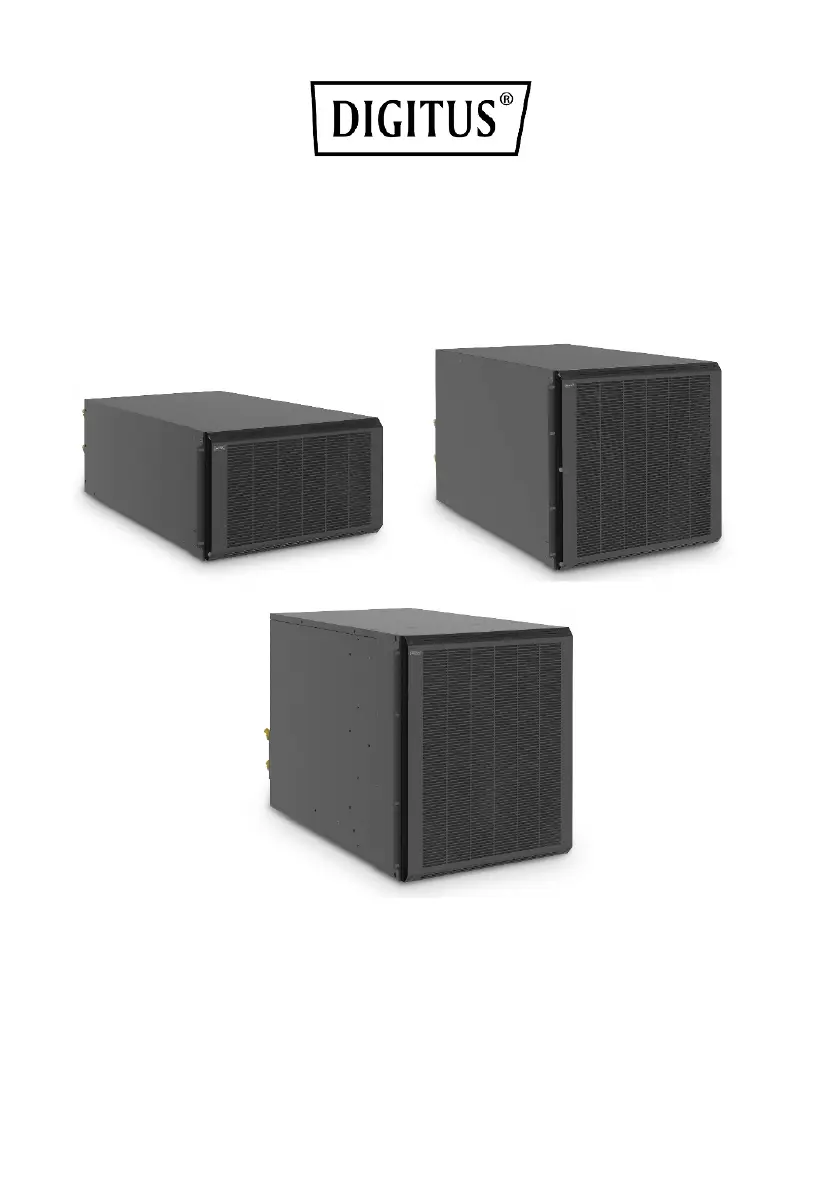

Split Rack Cooling Unit
User Manual
DN- 2 ( 9733 3.9 kW)
DN- 3 ( 9733 7.2 kW)
DN-97334 (12 kW)
2
Table of Contents
1. S ecurity Information................................................................................... 3
1.1. Symbol Description ............................................................................. 3
1.2. Handle Information 4 ............................................................................
2. General Information ................................................................................... 6
2.1. Product Identification ......................................................................... 6
2.2. Size ...................................................................................................... 8
2.3. Envrionmental Requirements ............................................................. 9
3. Installation .................................................................................................. 9
3.1. Installation Preparation ...................................................................... 9
3.2. Unpacking Inspection ....................................................................... 12
3.3. Installation ........................................................................................ 12
3.3.1. Outdoor Installation .................................................................. 12
3.3.2. Indoor Installation ..................................................................... 15
4. Commissioning ......................................................................................... 16
4.1. Leak, Pressure and Vacuum .............................................................. 16
4.2. Add The Amount Of Lubricating Oil .................................................. 17
4.3. Boot Check ........................................................................................ 18
4.4. R un The Debugger ............................................................................ 19
4.4.1. Refrigerant Charge Quantity ..................................................... 19
4.4.2. Debugging Content .................................................................... 20
5. Maintenance ............................................................................................. 20
5.1. Daily Operations ............................................................................... 20
5.2. Common Fault Alarm Phenomenon and Measures ......................... 21
6. Control System ......................................................................................... 25
6.1. Interface Description ........................................................................ 25
3
1. Security Information
1.1. Symbol Description
Installation, operation, or maintenance of equipment before servicing, please
read the manual carefully and keep in mind. Other matters on the
information in this manual or equipment, the following symbols illustrate
messages may appear to warn of potential danger or attention.
Add this symbol indicates that fails to comply with the
instructions; there will be a risk of electric shock resulting in injury
to persons in the "Danger" or "Warning" safety label.
This is a safety alert symbol used to alert to potential personal
injury hazards. Follow all safety information with the symbol, to
avoid personal injury or death that may arise.
DANGER
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not
avoided, can result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
can result in minor or moderate injury.
