Seite 1/10
✔1.5 mm strong steel sheet
✔Load capacity up to 800 kg
✔Standard colors grey and black
✔Large range of equipment available
482,6 Network Cabinet Unique Seriesmm (19“)
DN- U-8/10-1 19 26
Abstract
482.6 Network Cabinet Unique Series, 600, 800 mm width - 600, 800, 1000, 1200 mm depth mm (19“)
Features
- Safety class IP20
- Lateral metal struts front door with safety glass -point-locking (600 mm width cabinets) , 1
- Complete metal frame front door with safety glass -point-locking (800 mm width cabinets) , 1
- Lock system with swinghandle on front door (ready for profile half cylinder; adapter included)
- Door stop is easy to change
- door opening angle on front- and rear doors 120°
- Double wing opening rear door (800 mm width cabinets); Single opening rear door (600 mm width cabinets)
- Side panels are lockable and removable
- i l. pieces of leveling feet already pre-configured under the cabinet nc 4
- 482.6 - and rear side inside of the cabinet, galvanized mm (19“) profile rails mounted on the front
- 482.6 mm (19“) profile rails are adjustable in depth and with height unit marking
- Load capacity of 482.6 mm (19“) profile rails: 800 kg
- 2 pieces of mounted depth support bars for more stability from 26U (4 pieces from 32U)
- 800 mm width cabinets are equipped with vertical cable management ducts in the front
- Sliding cable entry with rubber sealing on the base
- Roof and base with brushed cable entries left and right (on cabinets from 800 mm width)
- Cable entry with brush strip at the top and bottom of the cabinet rear wall (on cabinets from 26U)
- Special roof construction for fan unit with added lid which can be unmounted
- Several earthing points for cabinet components
- Incl. installation set (screws, cage nuts, washers)
- Cabinet is completely mounted
Product Overview
The Network Cabinets of the Unique Series were designed for the user-friendly installation of active- and
passive network components accompanied by a neat cable management. Each cabinet consists of up to
1.5 mm strong steel sheet material which ensures a very good stability as a robust steel construction due to
special plate curving technique. The color is created by powder coating. For certain conditions, where the
set-up location is difficult to reach, the cabinet can be disassembled. Doors can be easily detached and the door
stop can be changed. The roof is equipped with an added lid which contains air ventilation slots for a better air
circulation. Furthermore, is ready for the mounting of an air ventilation unit. Each network cabinet contains it
2 pairs (4 pieces) of 482.6 mm (19”) profile rails inside which are galvanized and with height unit marking
(countable from both directions). They are variable in depth and connected with additional depth support bars
to realize extensive 2.6 48 mm (19”) equipment installations. An important aspect for each installation is the
cable management. The base of each cabinet is equipped with a sliding cable entry panel with rubber sealing.
Cabinets from 26U are equipped with two cable entries with brush strips on the rear side above- and
underneath the door. For cabinets with 800 mm width, the possibilities of cable management get enhanced
with additional cable entries with brushes left and right in the top and base chassis. Furthermore, there are
mounted vertical cable ducts with shutter left and right to the 482.6 mm (19”) profile rails in the front (on
cabinets with 800 mm width). An extensive portfolio of accessories for cable management, shelves, etc.
will help to meet many requirements in daily use.
Product Video
View a product video of “ ” on the official DIGITUS® Professional YouTube ChannelDN-19 42U-8/8-1
(when using this PDF on a computer, smartphone or tablet, please click on the YouTube logo below.
Alternatively you can also scan the QR code below):

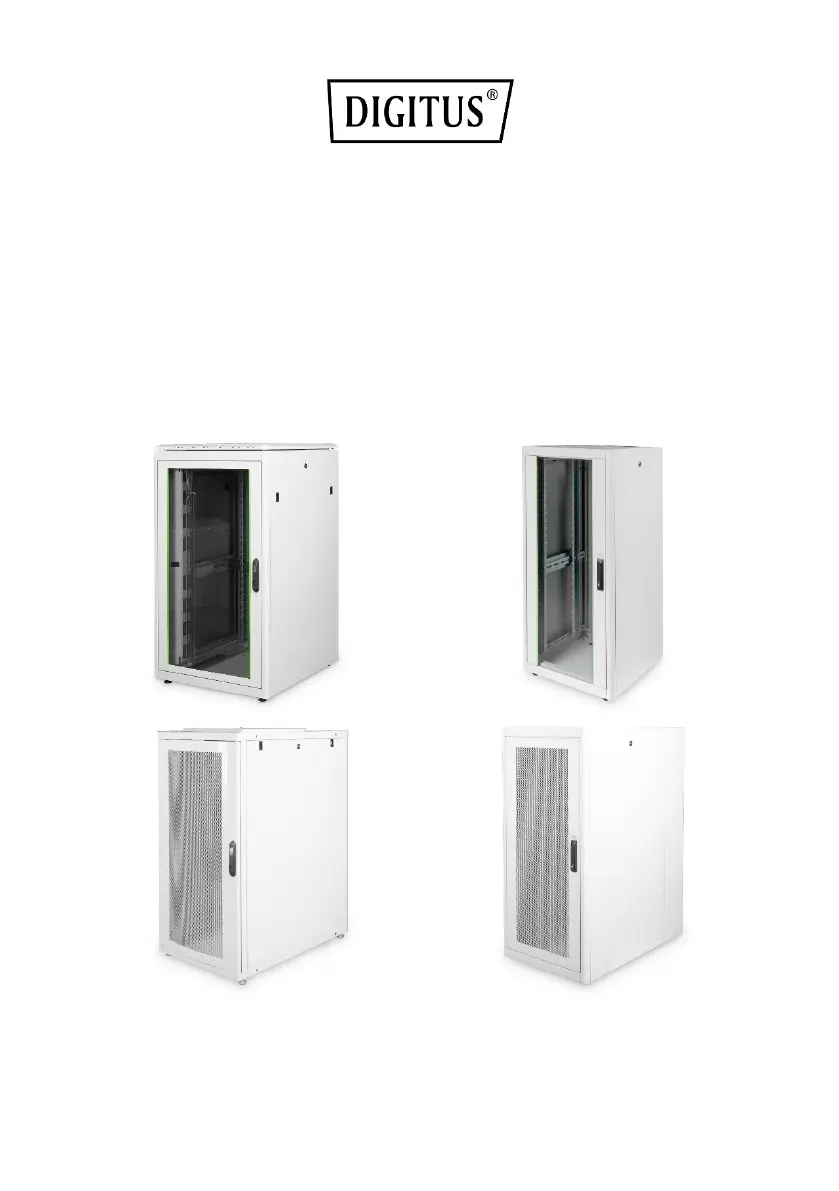

Product Images
