Datasheet

DIGITUS Network Rack Unique Series - 800x1000 mm

(WxD)

DN-31130

EAN 4016032476801

42U network cabinet, Unique, 2053x800x1000 mm steel front

door, grey

The Network Racks of the Unique Series were designed for the user

friendly installation of active- and passive network components

accompanied by a neat cable management. Each rack consists of up to

1.5 mm strong steel sheet material which ensures a very good stability

as a robust steel construction due to special plate curving technique.

The color is created by powder coating in grey (RAL 7035) and black

(RAL 9005). For certain conditions, where the set-up location is difficult

to reach, the rack can be disassembled. Doors can be easily detached

and the door stop can be changed from right to left. The roof is

present with an added lid which contains air ventilation slots for a

better air circulation. Furthermore the roof is ready for the mounting

of an air ventilation unit. Each network rack contains 2 pairs (4 pieces)

of 483 mm (19”) profile rails inside which are galvanized and with

height unit marking (countable from both directions). They are

variable in depth and connected with additional depth support bars to

realize extensive 483 mm (19”) equipment installations. An important

aspect for each installation is the cable management. The base of

each rack is equipped with a sliding cable entry panel with rubber

sealing. Racks from 26U are equipped with two cable entries with

brush strips on the rear side above- and underneath the door. For

cabinets with 800 mm width, the possibilities of cable management

get enhanced with additional cable entries with brushes left and right

in the top and base chassis. Furthermore there are mounted vertical

cable ducts with shutter left and right to the 483 mm (19”) profile rails

in the front (on cabinets from 800 mm width). An extensive portfolio

of accessories for cable management, shelves, etc. will help to meet

many requirements in daily use.

The DIGITUS® Professional Unique Series is made for high

demand IT-Infrastructure Solutions - designed and developed on

highest standard in Germany

• Steel front door, single door

• Lock system with pivot lever on front door (ready for profile half

cylinder; adapter included)

• Steer rear door with a round lock, double folding

• Cable entry with brush strip at the top and bottom of the cabinet

rear side

• 1-point-locking-mechanism on all doors

• 120° door opening angle on front- and rear doors

• Side panels are lockable and removable

• incl. 4 pieces of leveling feet already pre-configured under the

rack

• 483 mm (19“) profile rails mounted on the front- and rear side

inside of the rack, galvanized

• 483 mm (19“) profile rails are adjustable in depth and with height

unit marking

• Built-in depth support bars for more stability

• Sliding cable entry with rubber sealing on the base

• Special roof construction for fan unit with added lid which can be

unmounted

• Several earthing points for rack components

• Equipment mounting depth min.-max.: 688-943 mm

• Cabinet type: Network cabinet

• Color: light grey, RAL 7035

• Depth: 1000 mm

• Front door: Steel door, closed, single opening

• Load capacity: 800 kg

• Rear door: Steel door and cable entry, double opening

• Side panels: Both sides

• Units: 42

• Width: 800 mm

• IP protection class: IP20

• Mounted: yes

Package contents

• 1x Network cabinet

• Installation set (36 x screws, 36 x captive nuts, 36 x washers)

• 1x Adapter for profile half-cylinder

• 4x Grounding cables (incl. nuts and washers)

• 2x Keys

www.digitus.info Druckfehler, Irrtümer und technische Änderungen sind vorbehalten. | Printing errors, falsities and technical changes remain reserved. 1

Datasheet

Logistics

Number

(pcs)

Weight

(kg)

Depth

(cm)

Width

(cm)

Height

(cm) cm³

Packaging Unit Carton 1 148.30 85.00 105.00 210.30 1,876,930.00

Packaging Unit Inside 1 148.30 85.00 105.00 210.30 1,876,930.00

Packaging Unit Single 1 148.30 85.00 105.00 210.30 1,876,930.00

Net single without Packaging 1 145.30 80.00 100.00 205.30 0.00

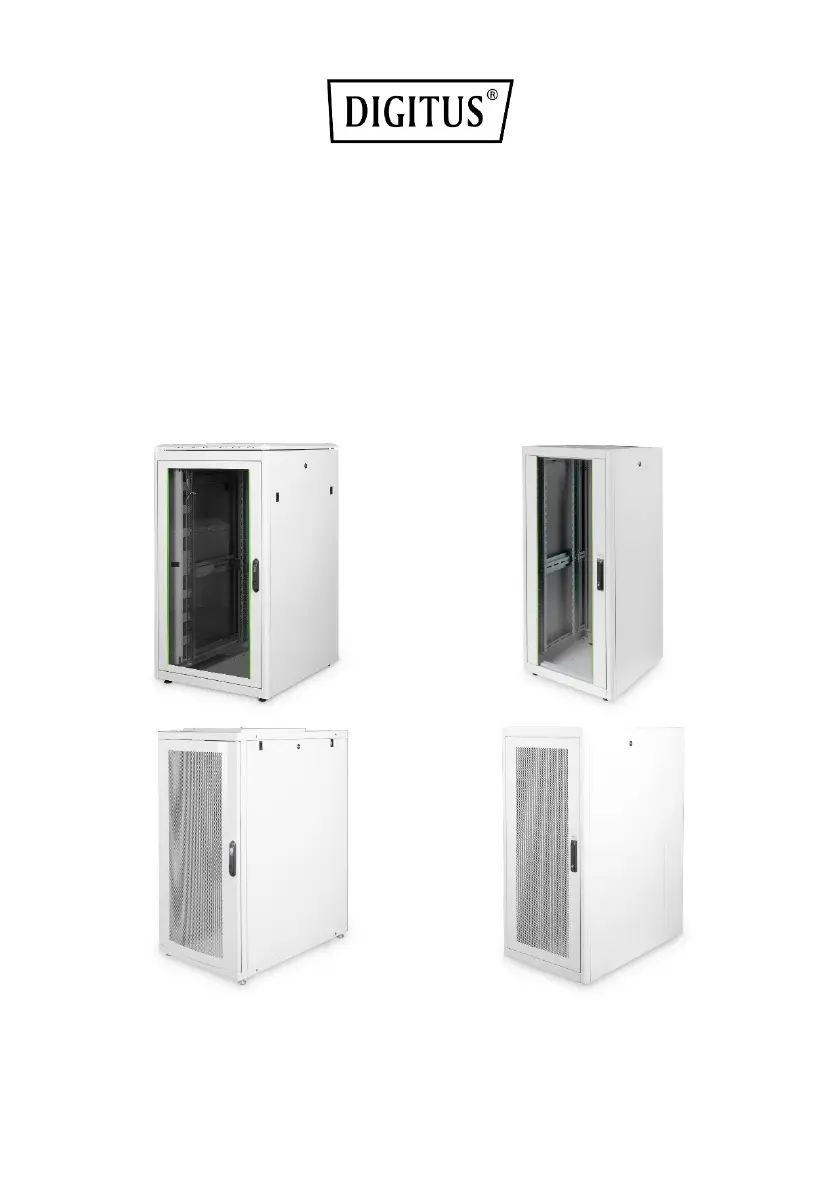

More images:
