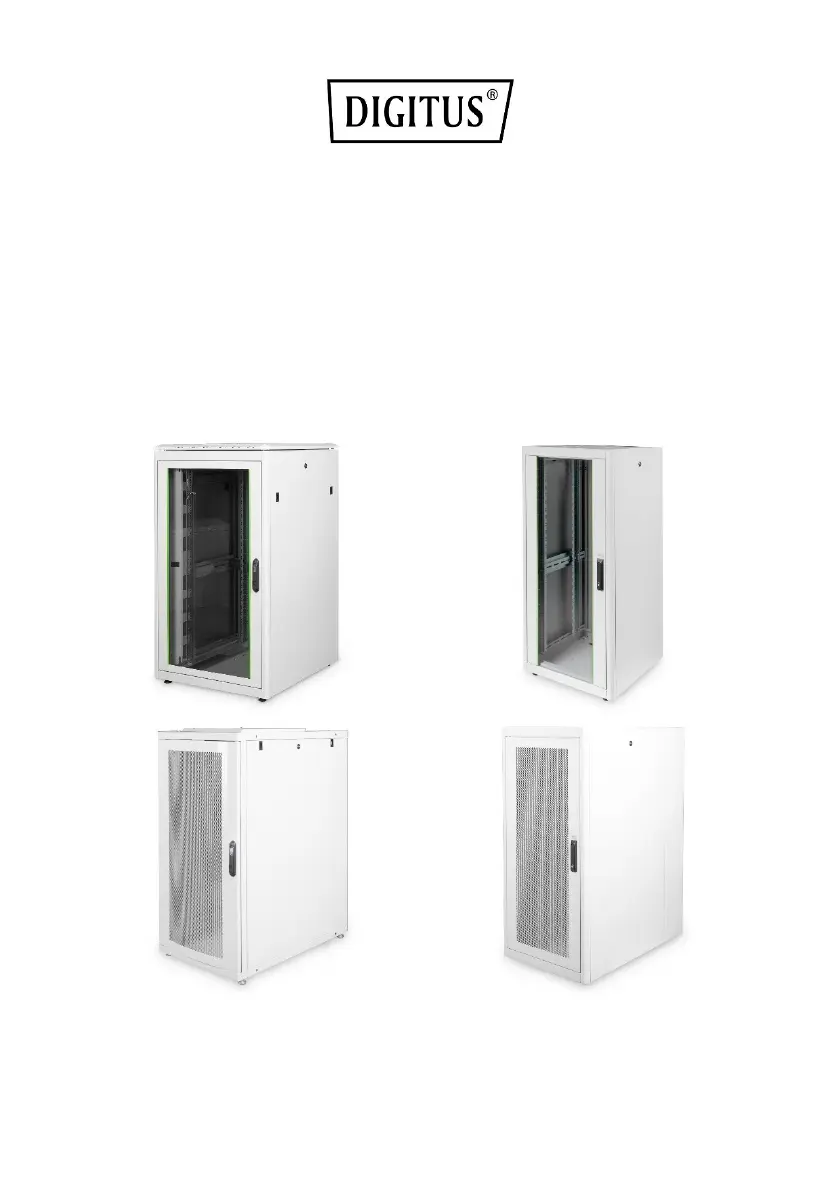

Cabinets - Free Standing Network Cabinets
All brand names and logos that are mentioned are trademarks or registered trademarks of the respective owners. The right to make design-related variations from the photos, mistakes and technical changes is reserved. All information is provided without guarantee. We assume no liability for printing errors. The right to delivery is reserved and subject to availability. Published by ASSMANN Elect ronic GmbH, Aufdem Schüffel 3, 58513 Lüdenscheid - Germany. 10/2022
Part number (example) DN-19 42U-8/8-V DN-19 42U-8/8-1 DN-19 42U-8/8-D
Series varioFLEX Unique Dynamic Basic
Standard sizes
Height units (U) 42U 22U, 26U, 32U, 36U, 42U, 47U 22U, 26U, 32U, 36U, 42U, 47U
Width (mm) 800 600, 800 600, 800
Depth (mm) 800 600, 800, 1000, 1200 600, 800, 1000, 1200
Shipping style Shipping style Mounted Mounted Mounted
Front door
Style (800 mm width cabinets) Complete steel frame with safety glass, single opening Complete steel frame with safety glass, single opening Lateral steel struts with safety glass, single opening
Style (600 mm width cabinets) Lateral steel struts with safety glass, single opening Lateral steel struts with safety glass, single opening Lateral steel struts with safety glass, single opening
Locking Pivot lever with lock,
ready for prole-half cylinder (adapter included)
Pivot lever with lock,
ready for prole-half cylinder (adapter included) Pivot lever with lock
Opening angle 270° 120° 120°
Rear door
Style (800 mm width cabinets) Steel door, double opening Steel door with cable entry brushes, double opening Steel panel, single piece
Style (600 mm width cabinets) Steel door, single opening Steel door with cable entry brushes, single opening Steel panel, single piece
Locking Pivot lever with lock,
ready for prole-half cylinder (adapter included) Lock Lock
Opening angle 270° 120°
Side panels Side panels Detachable with snap-in latches, lockable Detachable with snap-in latches, lockable Detachable, lockable
Fan area in roof
Fan area in roof 482.6 mm (19") blind panels for individual use Special construction for fan unit installation Punched-out holes
Fan area cover 482.6 mm (19") blind panels for individual use Top cover (lid) which can be unmounted
Vertical cable ducts Vertical cable ducts Installed in front (left & right) Installed in front (left & right)
Cable entry in base
Style (800 mm + 600 mm width cabinets) 482.6 mm (19") blind panels for individual use Cut-out with sliding cover Cut-out with screwed cover
Style (800 mm width cabinets) Additional cable entry brushes left & right Additional cable entry brushes left & right Additional punched out cable entries
with plastic covers left & right
Cable entry in top
Style (800 mm + 600 mm width cabinets) 482.6 mm (19") blind panels for individual use
Style (800 mm width cabinets) Additional cable entry brushes left & right Cable entry brushes left & right Punched out cable entries with plastic covers left & right
Load capacity of 19" rails Load capacity of 19" rails 1200 kg 800 kg 600 kg
