Delta reserves the right (1) to make changes in speciﬁcations and materials, and (2) to change or discontinue models, both without notice or obligation.

Dimensions are for reference only. See current full-line price book or www.specselect.com for ﬁnish options and product availability.

Refer to www.specselect.com for individual models. Note: Use this page front and back as a product submittal sheet.

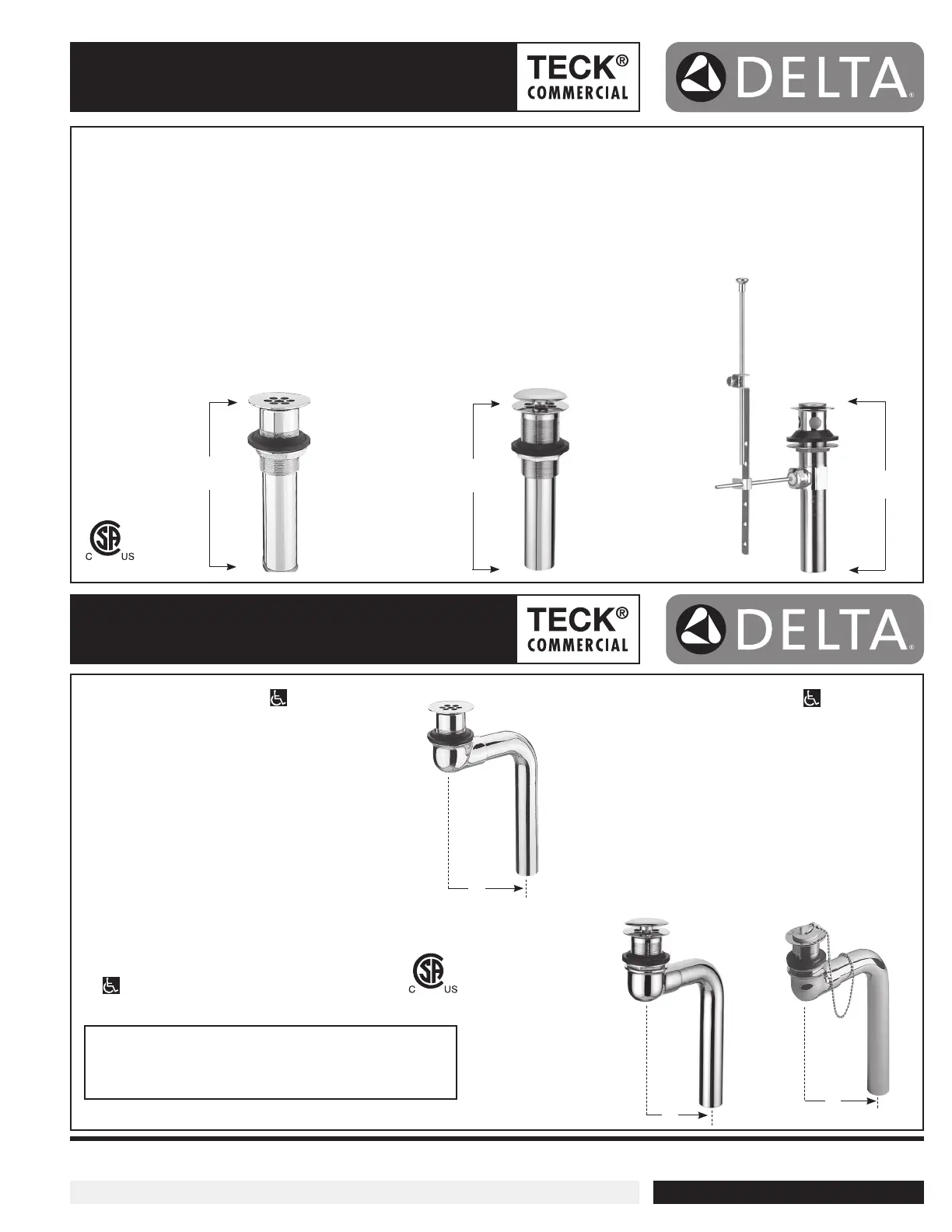

Cast Lavatory Wastes

Cast Wheelchair Lavatory Wastes

Specification: (example)

Chrome-plated, open grid, lavatory waste strainer.cast brass

o 33T260

32mm (1-1/4") size P.O. plug with overflow holes, 17 gauge,

19 hole grid pattern.

o 33T260-1

32mm (1-1/4") size C.O. plug less overflow holes, 17 gauge,

7 hole grid pattern.

o 33T260-1DC

Same as 33T260-1 but with drain cover.

Patented

Specification: (example)

o RP5651

32mm (1-1/4") size, chrome-plated metal

mechanical lift waste pop-up. Field installable for

removal or non-removal drain plug.

33T260-1

216mm

(8.5") 216mm

(8.5")

RP5651

203mm

(8.0")

Note: Measurements may vary ± 6mm (0.25")

Approvals:

• CSA certified

• Complies to ASME A112.18.2/CSA B125.2

• Indicates compliance to ICC / ANSI A117.1

( Contact Delta Representative for State and/or Local Approvals.)

33T290-1

33T290-1DC

Specification: (example)

32mm (1-1/4") size, polished chrome-plated,

offset open grid, lavatory waste strainer.cast brass

o 33T290

P.O. plug with overflow holes, 17 gauge, 127mm (5.0")

centers (See A), 19 hole grid pattern.

o 33T290-1

C.O. plug less overflow holes, 17 gauge, 127mm (5.0")

centers (See A), 7 hole grid pattern.

o 33T290-1DC

Same as 33T290-1 but with drain cover.

Patented

Specification: (example)

32mm (1-1/4") size, polished chromeplated,

offset chain and rubber stopper, lavatory cast brass

waste strainer.

o 33T295

P.O. plug with overflow holes

127mm (5.0") centers. (See A)

33T295

Engineer/Architect Approval

Model Speciﬁed:

Approval: Date:

33T260-1DC

DSP–33T Rev. G

Refer to www.specselect.com for individual models. Note: Use this page front and back as a product submittal sheet.

Delta reserves the right (1) to make changes in speciﬁcations and materials, and (2) to change or discontinue models, both without notice or obligation.

Dimensions are for reference only. See current full-line price book or www.specselect.com for ﬁnish options and product availability.

Specification: (example)

Polished chrome-plated , adjustable “P” trapcast brass body

o 33T311

32mm (1-1/4") size with

cleanout plug, 17 gauge

L = 368mm (14.5")

o 33T301

32mm ( 1-1/4") size less

cleanout plug, 17 gauge

L = 368mm (14.5")

o 33T360
