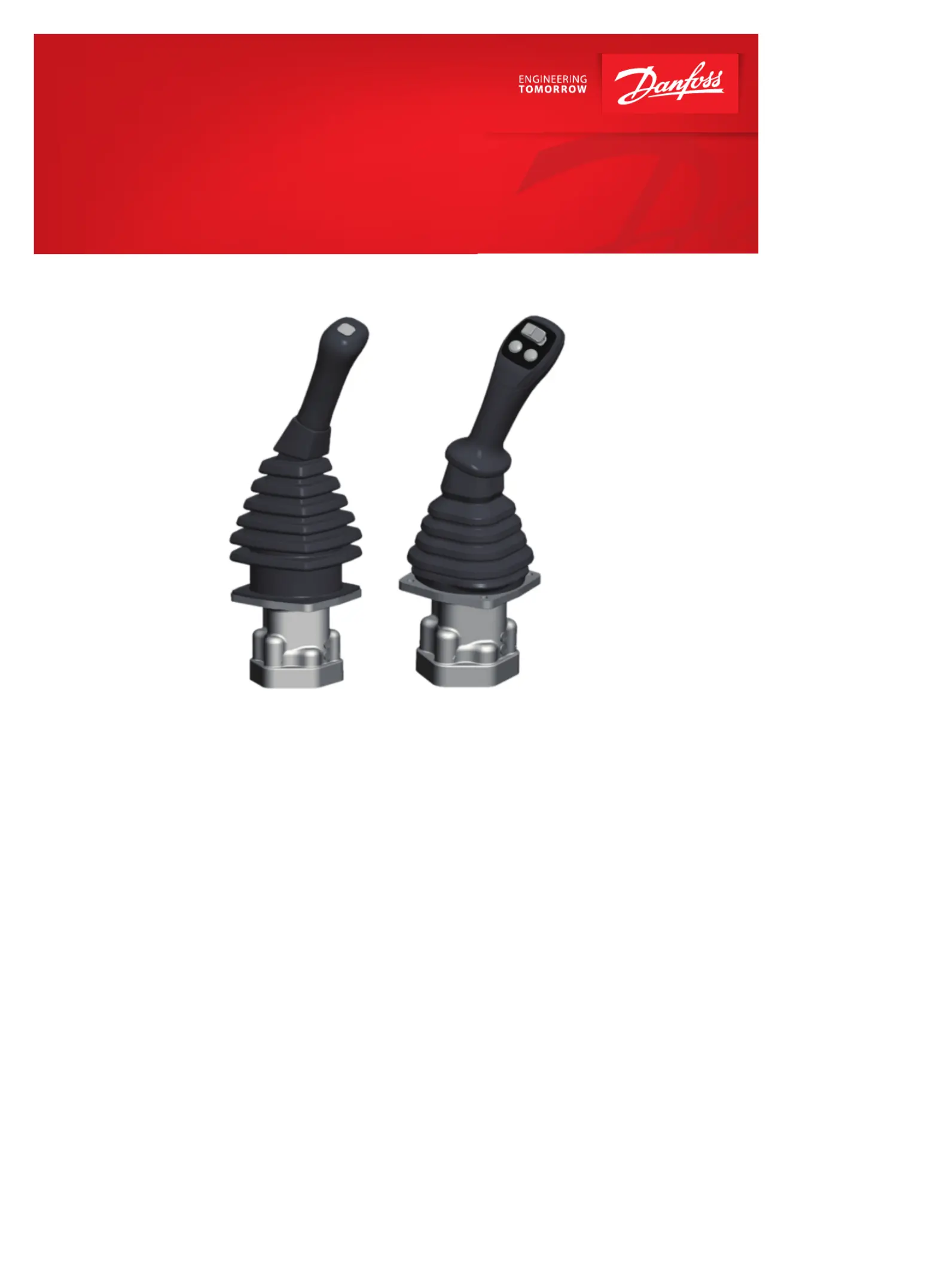

DHRCJ
Technical Information
Hydraulic Joystick
DHRCJ is part of D-HRC series.
D-HRC means Danfoss Hydraulic Remote Control valves which include:
DHRCJ — — Hydraulic Joystick
DHRCD — — Hydraulic Pilot Sectional Valve
DHRCP — — Hydraulic Foot Pedals
Excavator
Crane
Loader
AWP
Forklift
Drilling machine
Special vehicles
BC482581173883en-000101
1
Contents
General Description ---------------------------------------------------------------- 3 -----------------------------------------------------------------------------------
General Specication -------------------------------------------------------------- 4 -----------------------------------------------------------------------------------
Conguration ------------------------------------------------------------------------ 5 -----------------------------------------------------------------------------------
Options -------------------------------------------------------------------------------- 6 -----------------------------------------------------------------------------------
Dimensions---------------------------------------------------------------------------------- -------------------------------------------------------------------------- 10
Revision history --------------------------------------------------------------------- 13 ---------------------------------------------------------------------------------
2
BC482581173883en-000101
Description
Hydraulic Remote Controls (HRCs) are used to activate and control
directional valves or pumps from a remote and single operating
station. HRCs come in hand, foot and mechanically operated
versions, like the DHRCJ series, a dual-function hydraulic pilot
joystick that can achieve pilot control in both X-axis and Y-axis
directions. Suitable for various applications such as excavators,
drilling rigs, cranes, loaders and so on. Flexible conguration with
multiple valve bodies, handles, and switch options. It has excellent
handling performance, sturdy and durable design, and reliable
quality.
Operation
HRCs are fed a constant input pressure, from which they create
reduced output pressures that vary proportionally with lever or
pedal stroke. When the HRC is operated, output pilot pressure
ows to the main directional control valves, precisely controlling
main spool position and direction.
D-HRC Features
• Market leader with over 30 years of industry experience.
• Precision control with less leakage, close to at hysteresis and
excellent linearity.
• Reliability and Quality.
• Ergonomic eciency and customization capabilities provide
unparalleled exibility.
*HRC
Main Valve
BC482581173883en-000101
3
DHRCJ General Description
*Schematic exemplification can be either one of the DHRC products.
