INSTALLATION
3
FXFQ FXMQ
Minimum contact load: 1mA normally closed contact at 15VDC
Rated current: 3 A min.
Wire specifications: Vinyl cord with sheath or cable (2 wire)
Wiring thickness: 0.75 to 1.25 mm
2
Wiring length: 100 m max.
Minimum contact load: 1mA normally closed contact at 15VDC
Rated current: 3 A min.
Wire specifications: Vinyl cord with sheath or cable (2 wire)
Wiring thickness: 0.75 to 1.25 mm
2
Wiring length: 100 m max.
BSVQ
FX~
open
No error indicationNo error indication

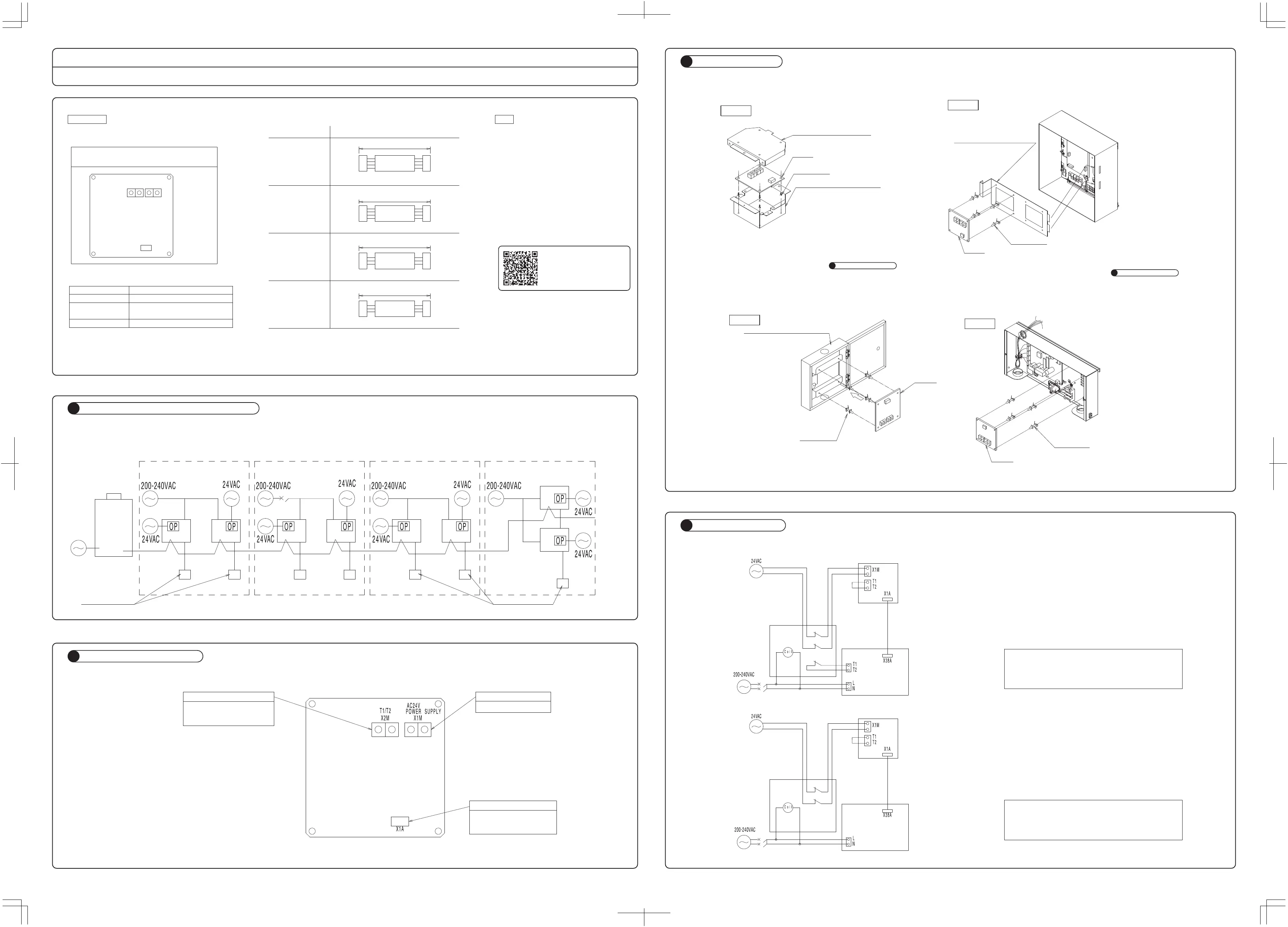

Adaptor for Multi tenant Installation Manual
DTA114A61 • 61-9
(1) Connect this adaptor and the PCB of the indoor unit with the
provided relay harness (varying with each indoor unit model).
(2) Connect the 24VAC (±20%) power supply to the X1M terminals of
the adaptor through the normally closed contacts of the relay. Be
sure to contact the relay contacts to both poles of the power
supply so that the positive and negative lines of the power supply
will be turned off simultaneously. A transformer may be used for
the 24VAC power supply provided for each adaptor on the
condition that the transformer has a capacity of 24VA or over.
(3) Provide a relay (with a normally closed contact) between the T1
and T2 terminals of the PCB.
(4) Short-circuit the T1 and T2 terminals of the adaptor.
• An adaptor mounting plate and mounting box
are required in addition to the provided
component parts in the case of mounting the
adaptor to the following models.
FXFQ~P: KRP1H98
FXMQ~P: KRP4A96
FXAQ~M: KRP4A93
• Both ends of harness are for connection of
PCB of indoor unit (or BS unit) and for
connection of adaptor for multi tenant. Be
careful when connecting them.
1P223254-1C
Daikin Air Conditioner
GENERAL DESCRIPTION OF SYSTEM
1
NAMES AND FUNCTIONS
2
Accessories NoteCheck that the following accessories are provided with the adaptor before installation.
Adaptor for Multi tenant
PCB support
Tiewrap
Relay harness
Installation Manual
4 pcs.
4 pcs.
4 pcs. (see the table on the right-hand
side for applicable models)
1 pc.
1 pc.
Applicable models Relay harness
FXFQ~P
FXMQ~P
BSVQ~P
FXAQ~M
700
UL electric wire
White White, 4 pins
350
UL electric wire
White White, 4 pins
260
UL electric wire
White Blue, 3 pins
1900
VCTF electric wire
White White, 3 pins
• The use of this adaptor allows the system to operate with no system error indication in the event of the interruption of power supply to other indoor units.
(In the case of the following diagram, there will be no error indication on the remote controllers of tenant 1 or tenant 3 or tenant 4 in the event of the
interruption of power supply to tenant 2.)
Contact input (T1/T2)
Receives power under ON/OFF
control for the indoor unit
through the contact relay.
Adaptor power supply
Receives 24VAC power
Indoor power supply
Supplies power to the indoor
unit through the provided
harness connected.
Lid of installation box
(KRP1H98, sold separately) Mounting plate for adaptor PCB
(KRP4A96, sold separately)
Adaptor
PCB support
Installation box for adaptor PCB
(KRP1H98, sold separately)
Installation box for adaptor PCB
(KRP4A93, sold separately)
NOTE 1) Installation box for adaptor PCB is
required in addition to the provided
component parts in the case of
mounting the adaptor.
2) Connect the wiring to the adaptor PCB
first. The work will be easier.
(Refer to .)
NOTE 1) Mounting plate for adaptor PCB is
required in addition to the provided
component parts in the case of
mounting the adaptor.
2) Connect the wiring to the indoor PCB
first. The work will be easier.
(Refer to .)
Adaptor
PCB support
FXAQ
PCB support
Adaptor
BSVQ
Adaptor
PCB support
Example with FXFQ, FXAQ, and FXMQ
Example with BSVQ
(1)
(2)
(4)
This adaptor
(1)
(2)
(3)
This adaptor
Three-pole contact
(Field supply)
Two-pole contact
(Field supply)
PCB of indoor unit
BSVQ PCB
(1) Connect the adaptor and BSVQ PCB through the relay harness.
(2) Connect the 24VAC (±20%) power supply to the X1M terminals of
the adaptor through the normally closed contacts of the relay. Be
sure to contact the relay contacts to both poles of the power
supply so that the positive and negative lines of the power supply
will be turned off simultaneously. A transformer may be used for
the 24VAC power supply provided for each adaptor on the
condition that the transformer has a capacity of 24VA or over.
(3) Short-circuit the T1 and T2 terminals of the adaptor.
〈〈 〉〉〈〈 〉〉 Ceiling-mounted Duct TypeCeiling-mounted Cassette Round-flow Type
〈〈 〉〉BS unit
NOTE) Installation box for adaptor PCB is
required in addition to the provided
component parts in the case of
mounting the adaptor.
(3)
METHOD OF WIRING
5
METHOD OF WIRING
5
Tenant 1 Tenant
2
Tenant
3
Tenant
4
ELECTRIC WIRING
4
For the installation instructions
of models NOT mentioned
in this manual, scan the QR code
to access the website with photo
manuals.
〈〈 〉〉Wall-mounted type
Bind the power supply wire for
indoor PCB with the remote
controller wiring and the connection
wiring using clamp material.
1P224646-1A
CAUTION
Follow the “FIELD SETTING” in the installation manual of the remote controller for the indoor unit and make a necessary field setting in the remote controller after turning the air conditioner ON.
Set the remote controller to field set mode, select Mode No. “12”, and set the FIRST CODE NO. to “1” and the SECOND CODE NO. to “04”.
(The SECOND CODE NO. is factory set to “01”.)
Note: The remote control terminals (T1 and T2) of the indoor unit is for multi-tenant use. Therefore, the COMPUTERIZED CONTROL of the indoor unit is not available.
• For connection to the terminal block, be sure to use a ring type crimp style terminal.
Also insulate the crimping portion, for example, by mounting an insulation sleeve.
• For wiring, use the specified wire to connect it securely and fix it so that external force is not applied to the
terminal.
• For tightening the terminal screw, use a proper screwdriver.
A smaller size screwdriver may damage the screw head, resulting in improper tightening.
• If the terminal screw is secured too tightly, the screw may be damaged.
For tightening torque for terminal screw, see the table on the right-hand side.
Ring type crimp style terminal Wire
Insulation sleeve
Terminal block of adaptor for multi tenant (X1M, X2M) 1.18~1.44
Tightening torque (N · m)
In the case of mounting to lid
of installation box for adaptor
*Processing procedure for field wiring
Adaptor power supply wire
through relay contact
(24VAC) (*field wiring)
Short-circuited
with electric wire.
Shall be clamped at
sheath portion.
Lid of installation box for adaptor
Adaptor for multi tenant
Power supply
wire for indoor
PCB (accessory)
Shall be clamped
near wiring stop.
In the case of mounting to
installation box for adaptor
Installation box for adaptor
Shall be clamped at
sheath portion.
Power supply
wire for indoor
PCB (accessory)
Shall be clamped
near wiring stop.
Adaptor power supply
wire through relay
contact (24VAC)
(*field wiring)
Adaptor for multi tenant
Short-circuited
with electric wire.
Power supply wire for adaptor (24VAC),
indoor contact input wire
Drain pump
lead wire
Installation box for adaptor
Power supply wire for indoor
PCB
Float switch lead wire
Bind the adaptor power supply wire (24VAC) and the indoor connection input
wire together with the drain pump lead wire using clamp material.
Be careful about jam at the lid
of electric component box.
Field wiring
Bind the provided power supply
wire for indoor PCB and the field
wiring using clamp material.
Bind the power supply wire for indoor
PCB with the float switch lead wire using
clamp material.
Power supply wire for BS
PCB (accessory)
Carry out wiring to keep it from
contact with electronic parts.
Bind using clamp material.
Adaptor for multi tenant
Adaptor power supply wire through
relay contact
(24VAC) (*field wiring)
(Do not take it for the 200-240VAC wire.)
Power supply wire for BS unit
Clamp it at the sheath portion
with the power supply wire for
BS unit.
FXMQ (Ceiling-mounted Duct Type)
FXFQ (Ceiling-mounted Cassette Round-flow Type)
BSVQ (BS unit)
*Processing procedure for field wiring
In the case of mounting to
installation box for adaptor (left)
In the case of mounting to
installation box for adaptor (right)
Short-circuited
with electric wire.
Short-circuited
with electric wire.
Adaptor power supply wire through relay contact
(24VAC) (*field wiring)
Adaptor power supply wire
through relay contact
(24VAC) (*field wiring)
Adaptor for multi
tenant
Power supply
wire for indoor
PCB (accessory)
Installation box for adaptor
Bind using clamp material.
Bind using clamp material.
Carry out wiring to keep it
from contact with parts on
the PCB.
Carry out wiring to keep it
from contact with parts on
the PCB.
Installation box for adaptor
Bind using clamp material.
Power supply wire for indoor
PCB (accessory)
Carry out field wiring to
keep it from contact with
parts on the PCB.
*Processing procedure for field wiring
*Processing procedure for field wiring
FXAQ (Wall-mounted type)
Power supply wire for indoor
PCB (accessory)
Adaptor for multi tenant
Power supply wire for indoor
PCB (accessory)
Adaptor power supply wire through relay contact
(24VAC) (*field wiring)
Short-circuited
with electric wire.
50 10 mm
+
50 10 mm
+
60 10 mm
+
50 10 mm
+
Bind using clamp material.
METHOD OF WIRING
5
FIELD SETTING
6
Short-circuited
with electric wire.
