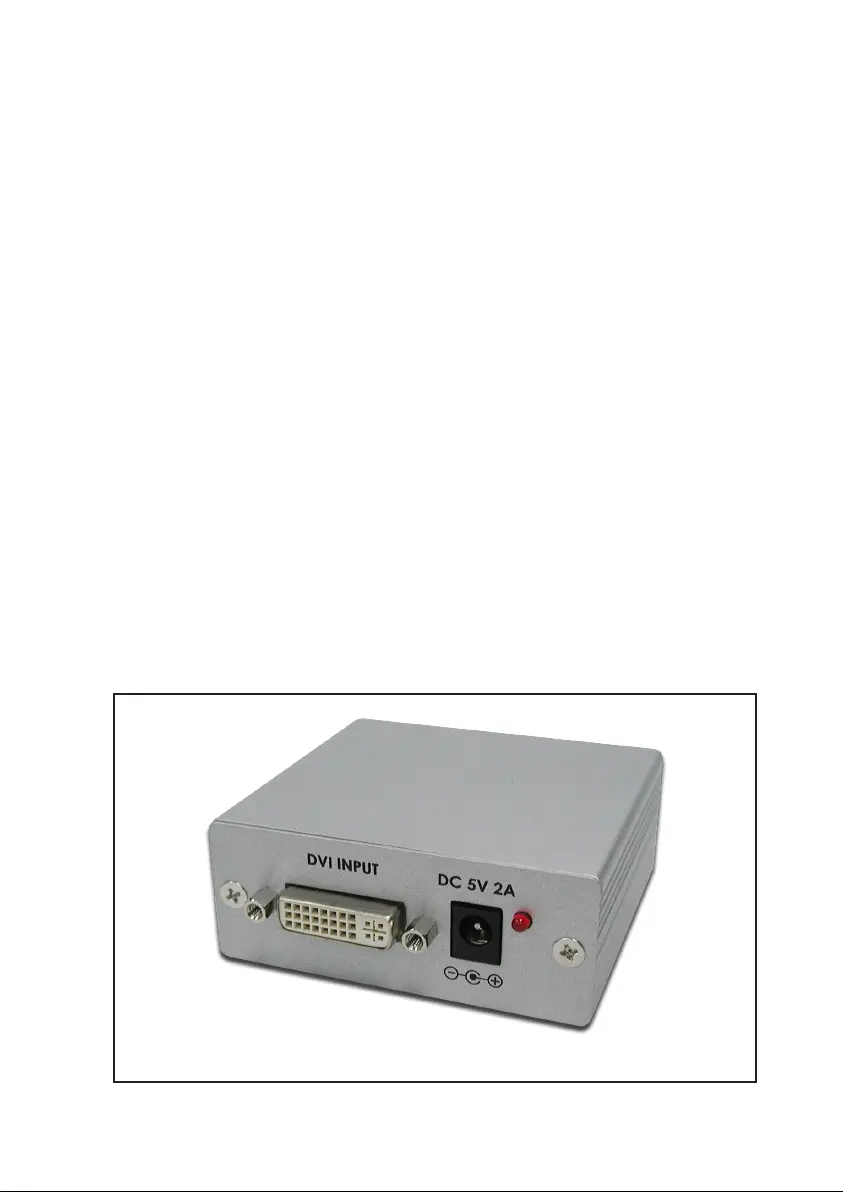

DVI Equalizer
Operation Manual
CP-269D
Using a copper-based DVI cable to extend a DVI display for a long
distance will cause signal degradation.
Our CP-269D provides 8 dB input equalization to compensate for
long DVI cable loss, it will eliminate digital noise (sparkles) to ensure
you to receive perfect HD resolutions up to UXGA or 1080p .
This package includes
- The DVI equalizer box.
- 5V DC power adaptor.
- User manual.
Features
* Provides 8 dB input equalization to compensate for long DVI cable loss.
* Extend cable reach to 40 meters- 20 meters from the source to
the equalizer plus 20 meters from the equalizer to the projector, TV/monitor.
* Maintains high DVI single link video resolution up to UXGA/1080p.
* HDCP compliant.
* Plug and play, easy to install.
* Can be powered directly from the cable.
However it is recommended to use external power adaptor
for long cable application.
DC 5V 2ADVI INPUT DVI OUTPUT SIGNAL
ENHANCE
OFF ON
Operation Controls and Functions
Front Panel Rear Panel
1 2 3 4 5
1. DVI Input: Connects to the DVI output connector of your source equipment.
2. DC power plug.
3. Power LED.
4. DVI output: Connects to the DVI input connector of your display unit.
5. Signal Enhance: After long distance transmission you can press this button to
enhance the signal.
Installation
DVD
Set Top Box
20 Meters
DVI switcher DVI equalizer
LCD TV
Specifications
* Compliant with DVI 1.0
* HDCP is compliant with HDCP 1.1 downward compatible HDCP 1.0
* HDCP pass through.
* Operation frequency: Up to 165 MHz.
* DVI data rate: 1.65Gbps (single link)
* Input/Output resolutions:
PC: VGA, SVGA, XGA, SXGA, UXGA up to 165 MHz.
HD: 480i/576i, 480p/576p, 720p, 1080i, 1080p
* Power: 5V 2A Center-positive
Note: Connect the long DVI cable from the source to the input
of CP-269D and place the box next to your display.
< 20 Meters
DVI-I Pin Configuration
1 8 C1 C2
C5
C4
C3
9
17 24
Combined Analog and Digital Connector Pin Assignments
Pin Signal Assignment Pin Signal Assignment
1
2
3
4
5
6
7
8
C1
C4
T.M.D.S Data2-
T.M.D.S. Data2+
T.M.D.S. Data2/4 Shield
T.M.D.S. Data4-
T.M.D.S. Data4+
DDC Clock
DDC Data
Analog Vertical Sync
N.C.
N.C.
9
10
11
12
13
14
15
16
C2
C5
T.M.D.S Data1-
T.M.D.S. Data1+
T.M.D.S. Data1/3 Shield
T.M.D.S. Data3-
T.M.D.S. Data3+
+5V Power
Ground
(Return for +5V, Hsync, and Vsync)
Hot Plug Detect
N.C.
N.C.
Pin Signal Assignment
17
18
19
20
21
22
23
24
C3
T.M.D.S Data0-
T.M.D.S. Data0+
T.M.D.S. Data0/5 Shield
T.M.D.S. Data5-
T.M.D.S. Data5+
T.M.D.S. Clock Shield
T.M.D.S. Clock+
T.M.D.S. Clock-
N.C.
DVI-Integrated(DVI-I): Supports both analog and digital connections to the display.
This 29-pin connector can carry single or dual-link all-digital video/data signals
on 24 pins and uses 5 pins to carry analog video/data signals and ground.
