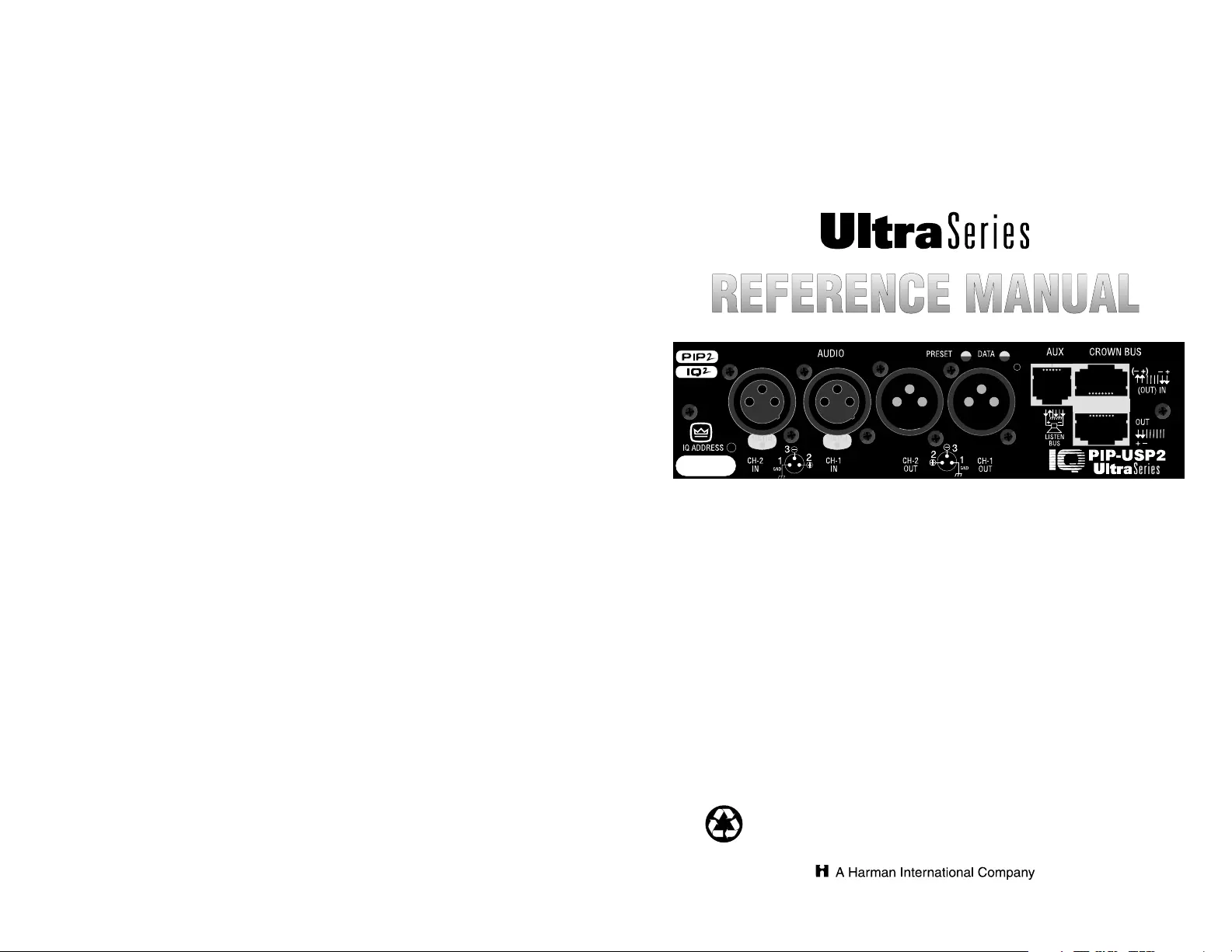

*PIP-USP2PIP-USP2

PIP-USP2PIP-USP2

PIP-USP2

An IQ System® Programmable Input Processor with DSP and

Load Supervision for Crown® PIP2-Compatible Amplifiers

Printed on

recycled paper.

125981-4

2/02

Telephone: 574-294-8000. Fax: 574-294-8329. Trademark Notice: IQ2, SmartAmp,

PIP, and PIP2 are trademarks, and Com-Tech, Crown, IOC, IQ System, Macro-Tech

and ODEP are registered trademarks of Crown International. Other trademarks are

the property of their respective owners.

Obtaining Other Language Versions:

To obtain information in another language about the use of this product, please

contact your local Crown Distributor. If you need assistance locating your local

distributor, please contact Crown at 574-294-8200.

Note: The information provided in this manual was

deemed accurate as of the publication date. How-

ever, updates to this information may have occurred.

To obtain the latest version of this manual, please

visit the Crown website at www.crownaudio.com.

IQ-PIP-USP2

Page 3

IQ-PIP-USP2 Reference Manual

IQ-PIP-USP2

Page 2

IQ-PIP-USP2 Reference Manual

Quick Install Procedure

This procedure is provided for those who are already familiar with Crown’s

System

and who would like to install the

IQ-PIP-USP2

in the shortest time possible.

Less experienced installers or those wishing a full explanation of the installation

procedure are encouraged to go to Section 3 where the full installation procedure

is described.

Prepare the IQ-PIP-USP2:

1. Set the IQ address switch S1 (see Figures 2.1 and 3.1) on the IQ-PIP-USP2 to

an unused IQ address. (Tip: Record the IQ address on the small field labeled

“IQ ADDRESS” that is provided on the PIP panel.)

2. Set the Input/Output Scaling switch S3 (see Figures 2.1 and 3.2) for the desired

scaling.

Prepare the amplifier:

3. Turn down the level controls of the amplifier and turn off the amplifier.

4. Unplug the power cord of the amplifier from the AC mains.

5. Remove the existing

PIP

™ or cover panel from the amplifier back panel (two

screws).

Install the IQ-PIP-USP2 into the amplifier:

6. Carefully ground yourself to the chassis of the amplifier before installing the IQ-

PIP-USP2. It is a good idea to maintain ground contact between yourself and

the amplifier while inserting the module into the amplifier in the next step.

7. Turn the PIP upside down so you can clearly see the two ribbon cable connec-

tors located on the underside of the board near the back corner (see Figure

2.1). Attach the ribbon cables from your amp to the ribbon-cable connectors.

The 20-pin cable should be connected first, then the 18-pin cable should be

connected. Both ribbon cables should run untwisted from the amplifier to the

PIP module.

Important: Be careful when attaching the ribbon cable to the connector that

the cable is properly seated before applying pressure to the connector. Forc-

ing the cable onto the connector could cause the keying tabs, which ensure

proper pin alignment, to break. Connecting the ribbon cables with improper

pin alignments may result in damage to the PIP

When both cables are firmly attached, turn the IQ-PIP-USP2 back to an upright

position and insert into the PIP opening in the back of the amplifier. Take care

while inserting the PIP to make sure you do not crimp, pinch or stretch the

ribbon cables.

8. Tighten the two PIP mounting screws until it is secured to the amplifier back

panel, making sure the supplied star-washers penetrate the powder-coat fin-

ish of the PIP panel for good ground connection.

Install the wiring:

9. Connect the IQ-PIP-USP2 to the IQ System via the Crown Bus (see Section

3.4 if more information is needed).

10. Connect the audio signal wiring to the IQ-PIP-USP2 (see Section 3.4 if more

information is needed).

11. Connect the amplifier back to the AC mains.

The information furnished in this manual does not include all of the details

of design, production, or variations of the equipment. Nor does it cover

every possible situation which may arise during installation, operation or

maintenance. If you need special assistance beyond the scope of this

manual, please contact Crown Technical Support.

Crown Technical Support

1718 W. Mishawaka Rd., Elkhart, Indiana 46517 U.S.A.

Phone: 800-342-6939 (North America, Puerto Rico and Virgin

Islands) or 219-294-8200

Fax: 574-294-8301 Internet: http://www.crownaudio.com

WARNING

TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR MOISTURE!

FCC COMPLIANCE NOTICE

This equipment has been tested and found to comply with the

limits for a Class A digital Device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual,

may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to

correct the interference at his own expense.

“The user is cautioned that any changes or modifications not

expressly approved by Crown International could void the user’s

authority to operate the equipment.”

IQ-PIP-USP2

Page 5

IQ-PIP-USP2 Reference Manual

IQ-PIP-USP2

Page 4

IQ-PIP-USP2 Reference Manual

ILLUSTRATIONS

CONTENTS

1 Welcome ................................................... 6

1.1 Unpacking ........................................ 7

2 Controls, Connectors & Indicators ......... 8

3 Installation ................................................. 9

3.1 Prepare the IQ-PIP-USP2 ............... 9

3.2 Prepare the Amplifier .................... 10

3.3 Install the IQ-PIP-USP2 into the

Amplifier .............................................. 10

3.4 Install the Wiring .........................11

3.5 Adjust System Levels ................. 14

4 Operation ................................................ 15

4.1 Hardware & Firmware ................ 15

4.1.1 Data Signal Presence

Indicator ...................................... 15

4.1.2 Preset Indicator ............... 15

4.1.3 Crown Bus Input/

Output Connector ....................... 15

4.1.4 Crown Bus Daisy

Output Connector ....................... 16

4.1.5 Balanced Audio

Outputs ........................................ 16

4.1.6 Balanced Daisy

Outputs ........................................ 16

4.1.7 AUX Input/Output

and Listen Bus Connector ......... 16

4.1.8 Crown Bus “Drop

Out” Relays .................................16

4.2 Hardware Controls ...................... 16

4.2.1 Daisy Select

Jumpers ....................................... 16

4.2.2 IQ Address Switch

(S1) ............................................. 17

4.2.3 Scaling Switch (S3) ....... 1 7

4.2.4 Reset/Preset Switch ...... 1 7

4.3 Amplifier Control and

Monitoring ................................... 18

4.3.1 User Presets ................... 1 8

4.3.2 IOC Event Monitor .............. 18

4.3.3 Input Signal Level

Monitor ........................................ 18

4.3.4 Output Signal

Level Monitor .............................. 18

4.3.5 Thermal Headroom

Level Monitor .............................. 18

4.3.6 Power Control .................. 19

4.3.7 Signal Mute ...................... 19

4.3.8 Polarity Inverter ............... 19

4.3.9 Input Signal

Attenuator .................................... 19

4.3.10 “Ghost Faders” ..............19

4.3.11 Memory Backup ............ 19

4.3.12 Amp Information ........... 19

4.3.13 Amp Mode .....................19

4.3.14 Amp Output

Mode ............................................ 19

4.3.15 Error Reporting .............20

4.4 Signal Processing ....................... 20

4.4.1 Signal Processing

Forms ........................................... 20

4.4.2 Signal Routing ................. 21

4.4.3 Auto Standby ................... 21

4.4.4 Input Signal ...................... 21

4.4.5 Programmable

Filters ........................................... 22

4.4.6 Signal Delay .................... 24

4.4.7 Peak Voltage

Limiter.......................................... 25

4.4.8 Average Power

Limiter.......................................... 25

4.4.9 Clip Eliminator ................. 25

4.4.10 Thermal Limiter .............25

4.4.11 Output Trim

Controls ...................................... 2 6

4.4.12 Tie Switch ..................... 2 6

4.5 Load Supervision ........................... 26

5 IQ Audio In Depth ................................... 28

5.1 A Closer Look at Audio

Signal Wiring .............................. 28

5.2 A Closer Look at Crown

Bus Wiring .................................... 29

5.2.1 “Hub” Style Crown

Bus Wiring................................... 30

5.3 Using the AUX

Connector .................................... 31

5.3.1 AUX Output ......................... 31

5.3.2 AUX Input ........................... 32

5.4 Listen Bus ...................................... 33

5.5 Working with RJ-11 and

RJ-45 Connectors ......................33

5.6 Q-Factor Calculation ................... 34

5.7 Load Supervision

Applications ................................ 35

5.7.1 Typical Load

Characteristics to Know

and Understand ..........................3 6

6 Specifications ......................................... 37

7 IQ Address Tables .................................. 39

8 Using the IQ-PIP-USP2 with the

IQ-PIP-USP2 Adapter ........................ 43

9 Service ................................................. 48

Warranty ................................................. 50

Factory Service Information Form ........... 53

1.1 IQ-PIP-USP2 Front Panel ...................... 6

2.1 IQ-PIP-USP2 Controls,

Connectors and Indicators ................. 8

3.1 Address Switch (S1) .......................... 9

3.2 Scaling Switch (S3) ......................... 1 0

3.3 Scaling Chart ..................................... 10

3.4 Installing the IQ-PIP-USP2 ................... 11

3.5 Crown Bus Wiring “Loops” from Output to

Input 12

3.6 RJ-45 Mating Plug ................................ 12

3.7 RJ-45 Output to Barrier

Block Input ........................................ 12

3.8 RJ-45 Output to Din Input. .............. 1 3

3.9 RJ-45 Input to Barrier

Block Output. .................................... 1 3

3.10 RJ-45 Input to Din Output. ........... 13

3.11 RJ-45 Output to RJ-45 Input. ....... 1 4

4.1 Daisy Select Jumper Settings ........ 1 6

4.2 IQ-PIP-USP2 Signal Flow

Block Diagram ...................................... 27

5.1 Audio Input Wiring ................................ 28

5.2 Audio Output Wiring .............................. 28

5.3 Example “Hub” Style Crown Bus Wiring

Arrangement ........................................ 31

5.4 The Internal AUX Circuit ....................... 32

5.5 A Sample AUX Output Circuit ............... 32

5.6 Listen Bus Connection ......................... 33

5.7 Multi-Amp Listen Bus

Configuration ...................................... 33

5.8 RJ-11& RJ-45 Pin Assignment ....... 33

5.9 Q-factor vs. Bandwidth ..................... 34

7.1 IQ Address Switch (S1)

Settings, 0 to 83 ................................40

7.2 IQ Address Switch (S1)

Settings, 84 to 167 ............................ 41

7.3 IQ Address Switch (S1)

Settings, 168 to 250 ............................. 42

8.1 “General” Tab Showing Identification of

IQ-PIP-USP2 Adapter .......................... 45

8.2 “Signal Path” Tab Showing Peak Voltage

and Average Power Limiters Disabled . 45

8.3 “Peak Voltage Limiter” Block Disabled on

“Signal Path” Tab .................................. 46

8.4 “Average Power Limiter” Block Disabled

on “Signal Path” Tab............................. 46

8.5 “Error Reporting” Tab Showing Fault and

Load Error Reporting Disabled ............ 47

8.6 “Load Supervision” Tab Showing Load

Supervision Disabled ........................... 47

Produktspezifikationen

Marke:	Crown
Kategorie:	Nicht kategorisiert
Modell:	IQ-PIP-USP2

Brauchst du Hilfe?

Wenn Sie Hilfe mit Crown IQ-PIP-USP2 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Nicht kategorisiert Crown

Crown Macro-Tech 10000 Bedienungsanleitung

31 August 2024

Crown P.I.P.-FPX Bedienungsanleitung

27 August 2024

Crown RTA-2 Bedienungsanleitung

27 August 2024

Crown P.I.P.-FXT Bedienungsanleitung

27 August 2024

Crown IQ-RPT Bedienungsanleitung

27 August 2024

Crown Screen Array PIPS Bedienungsanleitung

27 August 2024

Crown IQ-PIP-USP2 Bedienungsanleitung

27 August 2024

Crown SL-1 Bedienungsanleitung

27 August 2024

Crown PIP-Lite Bedienungsanleitung

27 August 2024

Crown P.I.P.-BEQX Bedienungsanleitung

27 August 2024

Bedienungsanleitung Nicht kategorisiert

Neueste Bedienungsanleitung für -Kategorien-

DAS Audio AX-112-5 Bedienungsanleitung

16 Oktober 2024

Ferplast Ergocomfort Freetime Bedienungsanleitung

16 Oktober 2024

AEG MECK52 Bedienungsanleitung

16 Oktober 2024

Makita UR012G Bedienungsanleitung

16 Oktober 2024

Stihl HT 70 Bedienungsanleitung

16 Oktober 2024

Ernesto H14270 Bedienungsanleitung

16 Oktober 2024

IFM AC901S Bedienungsanleitung

16 Oktober 2024

Nedis RFPOM120FBK Bedienungsanleitung

16 Oktober 2024

AEG E9KLCS01 Bedienungsanleitung

16 Oktober 2024

ART ProChannel II Bedienungsanleitung

16 Oktober 2024
