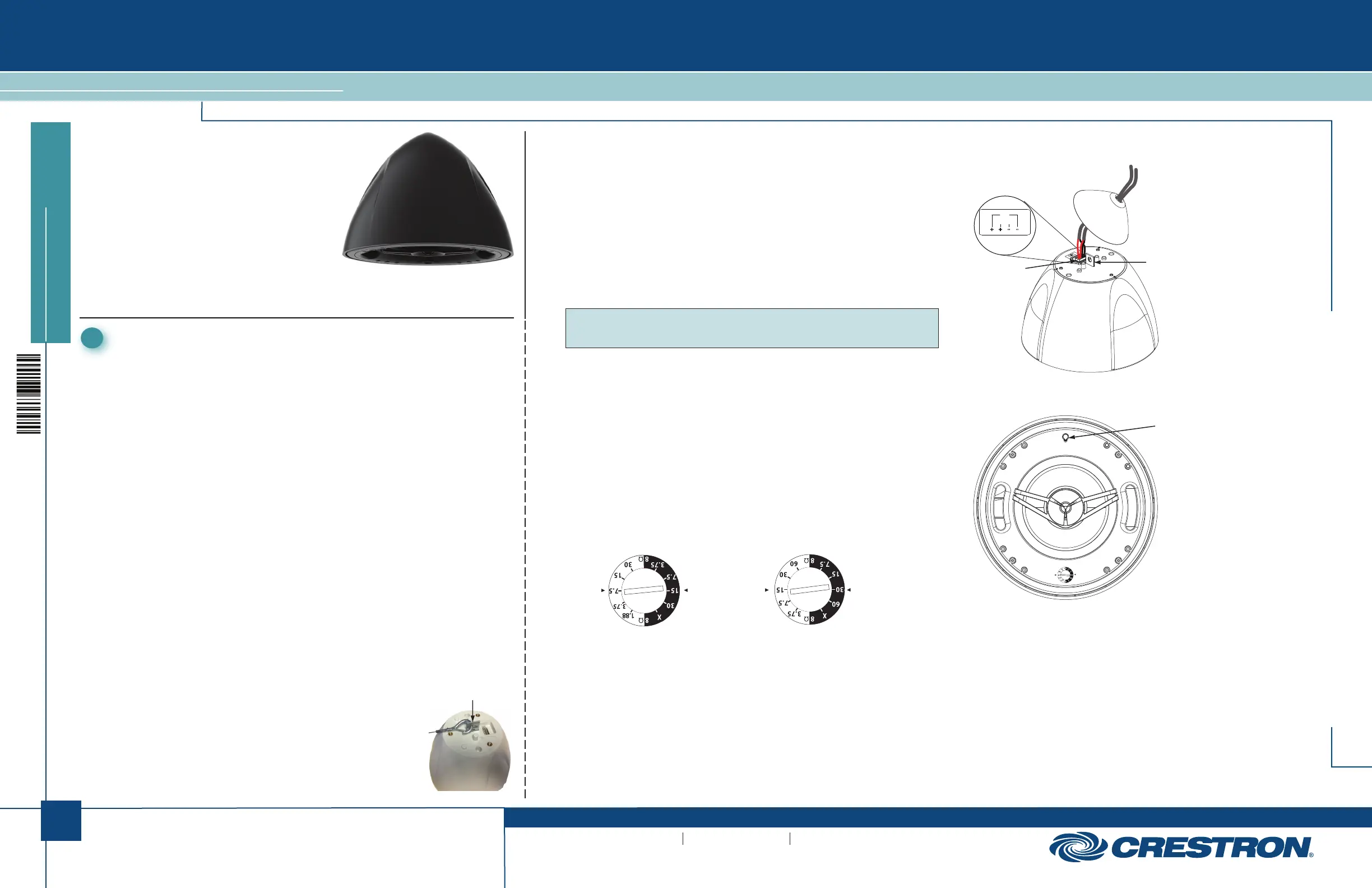

Saros® Pendant Speakers
quickstart guide
SAROS_PD4T/PD6T/PD8T/PDS8T
www.crestron.com
Specifications subject to
change without notice.
SAROS_PD4T/PD6T/PD8T/PDS8T
Install/Remove Grille
The zero-bezel frameless grille is held in place by powerful magnets. A safety tether is
included to prevent any possibility of the grille falling from the ceiling. Attach the tether to the
baffle using the supplied screw, cover the screw with the rubber boot provided, and place the
grille in position on the speaker. To remove the grille, insert the supplied pick accessory in
one of the side edge grille holes and pull the grille away from the speaker. To remove the
grille completely, disconnect the monofilament tether from the speaker baffle.
Set the Transformer Tap Selector Switches
The speakers are equipped with a 70V/100V matching transformer for distributed audio
systems. The transformer tap selector switch on the front panel is used to set the speaker
power level. Use a flat-head screwdriver to adjust the switch.
• For SAROS_PD4T 70V systems, use the left-side settings and select from 1.88, 3.75,
7.5, 15, or 30 watts.
• For SAROS_PD4T 100V systems, use the right-side settings and select from 3.75,
7.5, 15, or 30 watts. The X position should not be used.
• For SAROS_PD6T, SAROS_PD8T and SAROS_PDS8T 70V systems, use the
left-side settings and select from 3.75, 7.5, 15, 30, or 60 watts.
• For SAROS_PD6T, SAROS_PD8T and SAROS_PDS8T 100V systems, use the
right-side settings and select from 7.5, 15, 30, or 60 watts. The X position should not
be used.
The switch may also be set to 8 Ω operation, bypassing the transformer completely. This
setting should be used only for 8 Ω audio systems.
QUICKSTART DOC. 7488B (2037418) 10.15
1
1Installation
Saros® speakers by Crestron® deliver professional grade
performance and flexible installation in a range of popular
sizes for demanding commercial applications. Solid
construction and high-end components are hallmarks of the
complete Saros speaker line.
Ideal for use in background or foreground music, paging,
and sound reinforcement systems, Saros speakers are
engineered to achieve smooth, even coverage, high output,
and clear, natural sound quality through the employment of
horn-loaded titanium dome tweeters, high-efficiency
damped cone woofers, ported enclosures, and precisely
tuned crossovers.
Front View - Grille Removed
Install Speaker Cable
Observe all local codes and install speaker cable from the audio source location to the
closest ceiling truss location where a speaker will be suspended, allowing sufficient length to
hang down slightly below the planned speaker height. If the speakers are to be connected in
parallel, install a second cable at that location and route it to the next speaker location.
Repeat this process at each speaker location.
Install Wire Rope
1. For each speaker to be installed, remove the top cover and route
the free end of one of the 15 ft (~5m) wire ropes supplied in the
SPKA-ST-15 Safety Tether/Tie Down Kit up through the top cover.
Connect the attached hook assembly to secure the wire rope to the
speaker rigging point.
2. Attach the free end of the wire rope to the ceiling truss, adjust the
length so the speaker is at the desired height, and secure it using
the supplied Gripple® wire rope grip. (Refer to the supplied
instructions for proper use of the Gripple.)
1. Refer to the illustration to the right, with the top cover off to expose the supplied
terminal block.
2. At each speaker location, route the speaker cable(s) hanging from the ceiling area
through the top cover, and dress the cables to the wire rope using plastic cable ties.
3. If using a supplied weather boot, slide the speaker cables through the weather boot.
Strip the ends of the cables approximately 1/8" to 3/16" (~3 mm to ~5 mm) and, if the
wire is stranded, twist the strands.
4. Connect the wires from the amplifier (or the previous speaker) to the supplied terminal
block, using the IN terminals; red to + and black to –. Use the THRU + and – terminals
to connect the speaker wires to the next (parallel) speaker.
5. Speaker removal is accomplished by reversing steps 1 through 4 above.
Paint the Speaker and Grille
Speaker and grille painting should be done prior to mounting.
1. Carefully remove the material on the underside of the grille, and set it aside for
reinstallation. It may be necessary to use a knife or other sharp instrument to free an
edge of the material so it can be peeled away. Use care to avoid cutting or tearing the
material.
2. Dry brush or lightly spray the surface to be painted. Use care to avoid clogging the
holes in the grille.
3. Once the paint is dry, reinstall the material to the underside.
4. Remove the speaker top cover and paint the top cover and main speaker assembly
separately, being careful to mask areas that should not be painted.
100V
70V
For SAROS_PD6T/PD8T/PDS8T
100V70V
For SAROS_PD4T
100V70V
IN
THRU
Terminal
Block
Connect Speaker Cables
Speaker
Cables
Top
Cover
Speaker
Rigging Point
(Wire Rope Not
Shown)
Speaker
Rigging Point
Connect or Disconnect Speakers
NOTE: If the speakers are to be connected in parallel, the sum of the power settings
for all speakers must be less than the power amplifier’s power/channel rating.
Attach grille safety
tether with supplied
screw. Cover screw
with supplied rubber
plug.
Saros Pendant speakers include a top cover that conceals the wiring connections and suspension
hardware for a very clean, contoured appearance. The speakers are available in white or black and can
be painted to blend with the surrounding architecture.
Saros® Pendant Speakers
quickstart guide
SAROS_PD4T/PD6T/PD8T/PDS8T
www.crestron.com
Specifications subject to
change without notice.
SAROS_PD4T/PD6T/PD8T/PDSS8T
The specific patents that cover crestron products are listed at patents.crestron.com.
Certain Crestron products contain open source software. For specific information, please visit
www.crestron.com/opensource.
Crestron, the Crestron logo, and Saros are either trademarks or registered trademarks of Crestron
Electronics, Inc. in the United States and/or other countries. Gripple is either a trademark or
registered trademark of Gripple Limited in the United States and/or other countries. Other trademarks,
registered trademarks, and trade names may be used in this document to refer to either the entities
claiming the marks and names or their products. Crestron disclaims any proprietary interest in the
marks and names of others. Crestron is not responsible for errors in typography or photography.
This document was writtren by the Technical Publications department at Crestron.
©2015 Crestron Electronics, Inc.
QUICKSTART DOC. 7488B (2037418) 10.15
3Specifications
2
SPECIFICATION
SAROS_PD4T, PD6T, PD8T, PDS8T
SAROS PD4T SAROS_PD6T_SAROS_PD8T The following table provides corrective action for possible trouble situations.
If further assistance is required, please contact a Crestron customer service
representative.
Further Inquiries
To locate specific information or resolve questions after reviewing this
guide, contact Crestron's True Blue Support at 1-888-CRESTRON
[1-888-273-7876] or, for assistance within a particular geographic region,
refer to the listing of Crestron worldwide offices at www.crestron.com/offices.
To post a question about Crestron products, log onto Crestron’s Online Help
at www.crestron.com/onlinehelp. First-time users must establish a user
account to fully benefit from all available features.
Future Updates
As Crestron improves functions, adds new features, and extends the
capabilities of the SAROS_PD4T/PD6T/PD8T/PDS8T, additional
information may be made available as manual updates. These updates
are solely electronic and serve as intermediary supplements prior to the
release of a complete technical documentation revision.
Check the Crestron website periodically for manual update availability
and its relevance. Updates are identified as an “Addendum” in the
Download column.
TROUBLE
POSSIBLE CAUSE(S)
CORRECTIVE ACTION
No sound or
intermittent
sound is
coming from
the speakers.
There is a cable
connection error.
Verify the cable connections
between the amplifier and
speakers.
The amplifier is not
receiving an input signal,
or there is a malfunction.
Verify that the amplifier is
functioning correctly, that it is
receiving an input signal, and
that the correct input source
is selected.
Verify that all devices in
system are functioning
properly.
Verify system grounding.
Verify speaker connection
polarity ( on amplifier to + +
on speaker).
4Problem Solving
Troubleshooting
2Physical Views
Rear and Side View (Typical)
IN
TH RU
Recommended
Cutout Diameter
Diameter
Minimum
Mounting Depth
Front View - Grille Removed (Typical)
Connections
Input 4-pin 5 mm detachable terminal block with screw-down flanges;
Speaker input with parallel pass-through;
Maximum wire size: 12 AWG
Controls
Transformer Tap Recessed 5-position screwdriver-adjustable rotary switch on baffle;
Used to select 70/100V tap settings or 8 Ω (bypass)
Environmental
Temperature -2° to 120° F (-19° to 49° C)
Humidity 5% to 95% RH (non-condensing)
Splash Resistance IPx4 rated per IEC 60529
100V70V
8.0 in (203 mm)
polypropylene with ring
mode decoupled cloth
surround and steel basket
0.98 in (25 mm) titanium
dome, horn-loaded
2.5 kHz
8 Ω nominal with
transformer set to 8Ω
3.75, 7.5, 15, 30, 60 watts
at 70 V; 7.5, 15, 30, 60
watts at 100 V
50 Hz to 20 kHz (±3 dB)
40 Hz to 20 kHz (-10 dB)
50 watts program, (8 Ω)
90 dB @ (1W/1m)
95° conical (nominal)
6.5 in (165 mm)
polypropylene with ring
mode decoupled cloth
surround and steel basket
0.98 in (25 mm) titanium
dome, horn-loaded
2.5 kHz
8 Ω nominal with
transformer set to 8Ω
3.75, 7.5, 15, 30, 60 watts
at 70 V; 7.5, 15, 30, 60
watts at 100 V
55 Hz to 20 kHz (±3 dB)
45 Hz to 20 kHz (-10 dB)
50 watts program (8 Ω)
88 dB @ (1W/1m)
90° conical (nominal)
4.0 in (102 mm)
polypropylene with ring
mode decoupled cloth
surround and steel basket
0.79 in (20 mm) titanium
dome, horn-loaded
2.0 kHz
8 Ω nominal with
transformer set to 8Ω
1.875, 3.75, 7.5, 15, 30
watts at 70 V; 3.75, 7.5,
15, 30 watts at 100 V
60 Hz to 20 kHz (±3 dB)
45 Hz to 20 kHz (-10 dB)
50 watts program, (8 Ω)
85.0 dB @ (1W/1m)
90° conical (nominal)
Woofer
Tweeter
Crossover Frequency
Impedance
Transformer Taps
Frequency Response
Frequency Range
Power Handling
Sensitivity
Coverage
8.0 in (203 mm)
polypropylene with rubber
surround steel basket and
phase plug
N/A
N/A
8 Ω nominal with
transformer set to 8Ω
3.75, 7.5, 15, 30, 60 watts
at 70 V; 7.5, 15, 30, 60
watts at 100 V
45 Hz to 125 Hz (±3 dB)
35 Hz to 125 Hz (-10 dB)
100 watts program, (8 Ω)
90 dB @ (1W/1m)
N/A
SAROS_PDS8T
There is a faulty device in
the system.
There is a system
grounding fault.
There is an incorrect
polarity connection at the
speaker or amplifier.
Constant noise
such as buzz,
hum, or hiss is
coming from
the speakers.
Poor low
frequency
output.
Construction
Enclosure Glass fiber reinforced ABS plastic, textured finish, paintable, removable top cover
Baffle Glass fiber reinforced ABS plastic
Grille Steel with textured finish, paintable, magnetically held, zero-bezel frameless, safety tether
Mounting Single rigging point beneath top cover for suspension; Gripple 15 ft (4.57 m) wire rope (aka, aircraft cable) with
attached snap hook and self-locking wire rope grip included
8.33 in (212 mm)
9.02 in (223 mm)
7.0 lb (3.2 kg)
Dimensions
Height
Diameter
Weight
10.49 in (267 mm)
11.07 in (282 mm)
9.8 lb (4.5 kg)
10.58 in (269 mm)
12.57 in (320 mm)
11.1 lb (5.1 kg)
10.58 in (269 mm)
12.57 in (320 mm)
13.1 lb (6.0 kg)

Produktspezifikationen

Marke: Crestron
Kategorie: Subwoofer
Modell: Saros PDS8T-W-T-EACH

Brauchst du Hilfe?

Wenn Sie Hilfe mit Crestron Saros PDS8T-W-T-EACH benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten


Bedienungsanleitung Subwoofer Crestron

Crestron

Crestron Saros PDS8T-W-T-EACH Bedienungsanleitung

21 August 2024
Crestron

Crestron SAROS ICS8T-B-T-EACH Bedienungsanleitung

20 August 2024
Crestron

Crestron Vector SUBS15 Bedienungsanleitung

20 August 2024
Crestron

Crestron Vector SUBD18 Bedienungsanleitung

20 August 2024
Crestron

Crestron Vector SUBS18 Bedienungsanleitung

20 August 2024
Crestron

Crestron SAROS PDS8T-B-T-EACH Bedienungsanleitung

19 Dezember 2023
Crestron

Crestron Saros ICS8T-W-T-EACH Bedienungsanleitung

7 Juli 2023

Bedienungsanleitung Subwoofer

Neueste Bedienungsanleitung für -Kategorien-

Pioneer

Pioneer S-21W Bedienungsanleitung

13 Oktober 2024
JL Audio

JL Audio SGR-10TW3 Bedienungsanleitung

13 Oktober 2024
Polk

Polk DB1040 Bedienungsanleitung

10 Oktober 2024
Blaupunkt

Blaupunkt GBW801 Bedienungsanleitung

7 Oktober 2024
JL Audio

JL Audio TW1 Bedienungsanleitung

6 Oktober 2024
Jensen

Jensen J12W Bedienungsanleitung

6 Oktober 2024
Musway

Musway MT169Q Bedienungsanleitung

6 Oktober 2024
JL Audio

JL Audio 12W0v3 Bedienungsanleitung

4 Oktober 2024
Yamaha

Yamaha YST-SW315PN Bedienungsanleitung

2 Oktober 2024
JBL

JBL SW10 Bedienungsanleitung

30 September 2024
