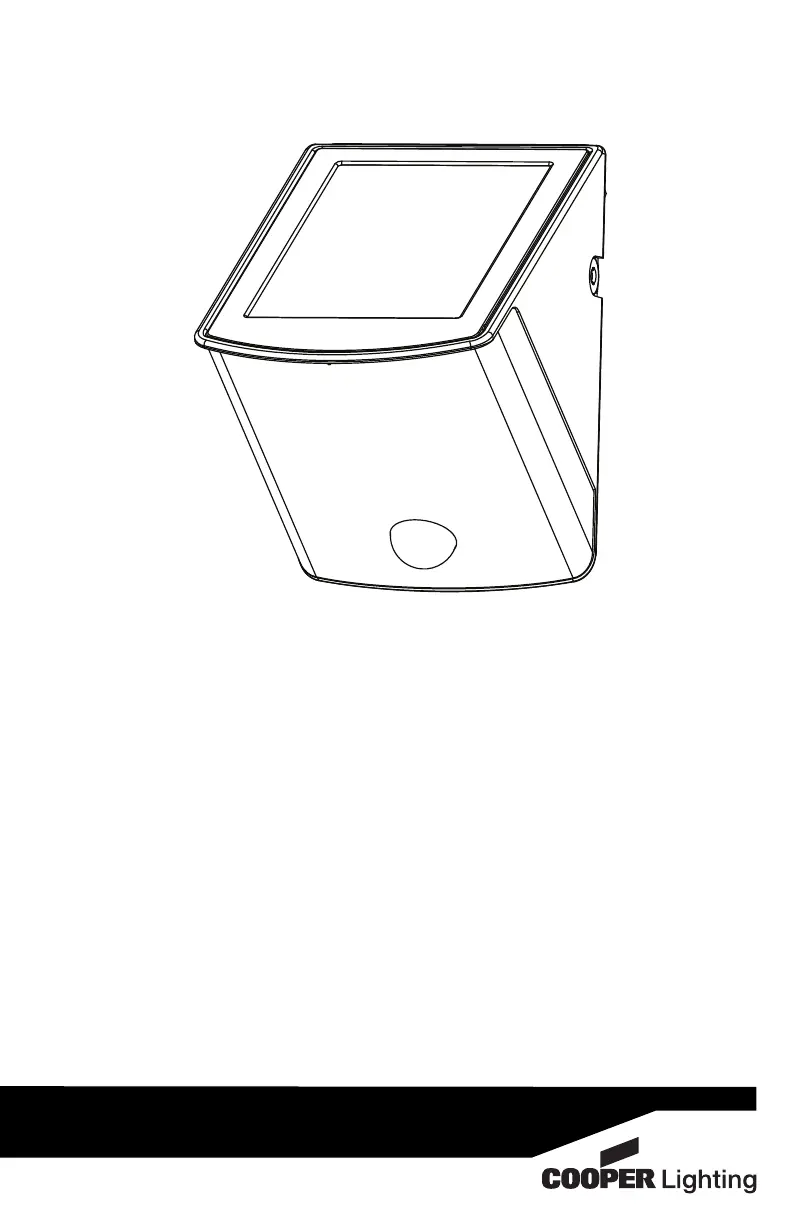

MSLED100
Instruction Manual
Instrucciones
Directives
Call for customer service and/or missing or damaged parts (800-334-6871)
English
MSLED100 (Black)
2
Congratulations. You have purchased a motion activated solar floodlight.
This light is constructed of durable plastic and will provide trouble free and
weatherproof service.
HOW IT WORKS
During the daylight hours, the solar panel turns the sunlight
into energy that is stored in the rechargeable battery. Your
light features a motion sensor that turns the light ON at night
when motion is detected. This light is equipped
with a photocell, which only allows the fixture to turn
ON during the nighttime hours.
WHAT YOU NEED
• Phillips screwdriver
• Drill (optional)
WHAT’S INCLUDED
• Light fixture (A)
• Mounting plate (B)
• (2) Fixture mounting screws (C)
• (2) Plastic Plugs (D)
• (2) Keys (E)
• (1) Key chain (F)
• (3) “AA” Ni-MH rechargeable
batteries (installed)
WHAT TO KNOW
PLEASE READ THESE IMPORTANT SAFETY INSTRUCTIONS
• To Reduce Risk of Fire or Injury to Persons, Read and Follow these Instructions:
• For outdoor use only.
• Use only the following type and size batteries: “AA” Ni-MH rechargeable batteries.
Make sure that replacement batteries are the same size as current batteries.
• Do not operate the luminaire fitting with a missing or damaged shield.
• Do not dispose of the battery in a fire. The cell may explode. Check with local
codes for possible special disposal instructions.
• Do not open or mutilate the battery. Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be toxic if swallowed.
• Exercise care in handling the batteries in order not to short the battery with
conducting materials such as rings, bracelets and keys. The battery or conductor
may overheat and cause burns.
100 degrees
up to
23 feet
A
DCB
FE
Call for customer service and/or missing or damaged parts (800-334-6871)
3
• Charge the battery provided with or identified for use with this product only in
accordance with the instructions and limitations specified in this manual.
• Observe proper polarity orientation between the batteries and battery
charger/compartment.
• Disassembly of your fixture will void the warranty.
• Fixture is suitable for wall mount only. NOT suitable for ground mount installation.
SAVE THESE INSTRUCTIONS
FOR BEST RESULTS
• Locate solar panel in an area that will receive the maximum amount of sunlight
during the daylight hours.
• Allow fixture to receive four full days of sunlight before turning fixture ON.
• Install your fixture 6-8 feet above ground (motion detector is less sensitive
above 8 feet).
• Locate fixture so motion moves across detection zone (Fig. 1).
• Locate fixture away from heat producing sources to prevent
false triggering. Also be very careful not to include objects
such as windows, white walls, barbecues, air conditioners,
flue vents, and water in the detection zone whenever
possible.
• Locate fixture away from moving objects such as trees and
street traffic.
• Do not aim the sensor at reflective surfaces such as smooth white walls,
swimming pools, etc.
• Keep solar panel clear of any objects that will block the sunlight. It will be
necessary to periodically clean the solar panel with soft wet cloth.
• During periods of several cloudy days, the battery will become discharged and
will need to be recharged with sunlight.
• After receiving full charge, fixture ON capacity is up to 3 hours.
Note: All PIR sensors in cold/dry environments are more sensitive than those in
hot/wet environments.
HOW TO REPLACE BATTERIES
Note: Use only the following type and size batteries: "AA" Ni-MH rechargeable
batteries. Make sure that replacement batteries are the same dimension as
current batteries.
1. Unlock fixture from mounting plate by inserting the key (supplied) in the lock
on the side of the fixture. Rotate key to the OPEN position. Remove the
fixture from the wall by lifting up on the bottom of the fixture. Support the
fixture securely with both hands.
2. Rotate the fixture so that you are looking at the back mounting surface of the
fixture. Move the switch to the OFF position.
3. Make sure that the switch is in the OFF position before you proceed. Remove
the four (4) screws from the battery cover to expose the batteries.
Fig. 1
