Seite 1/4

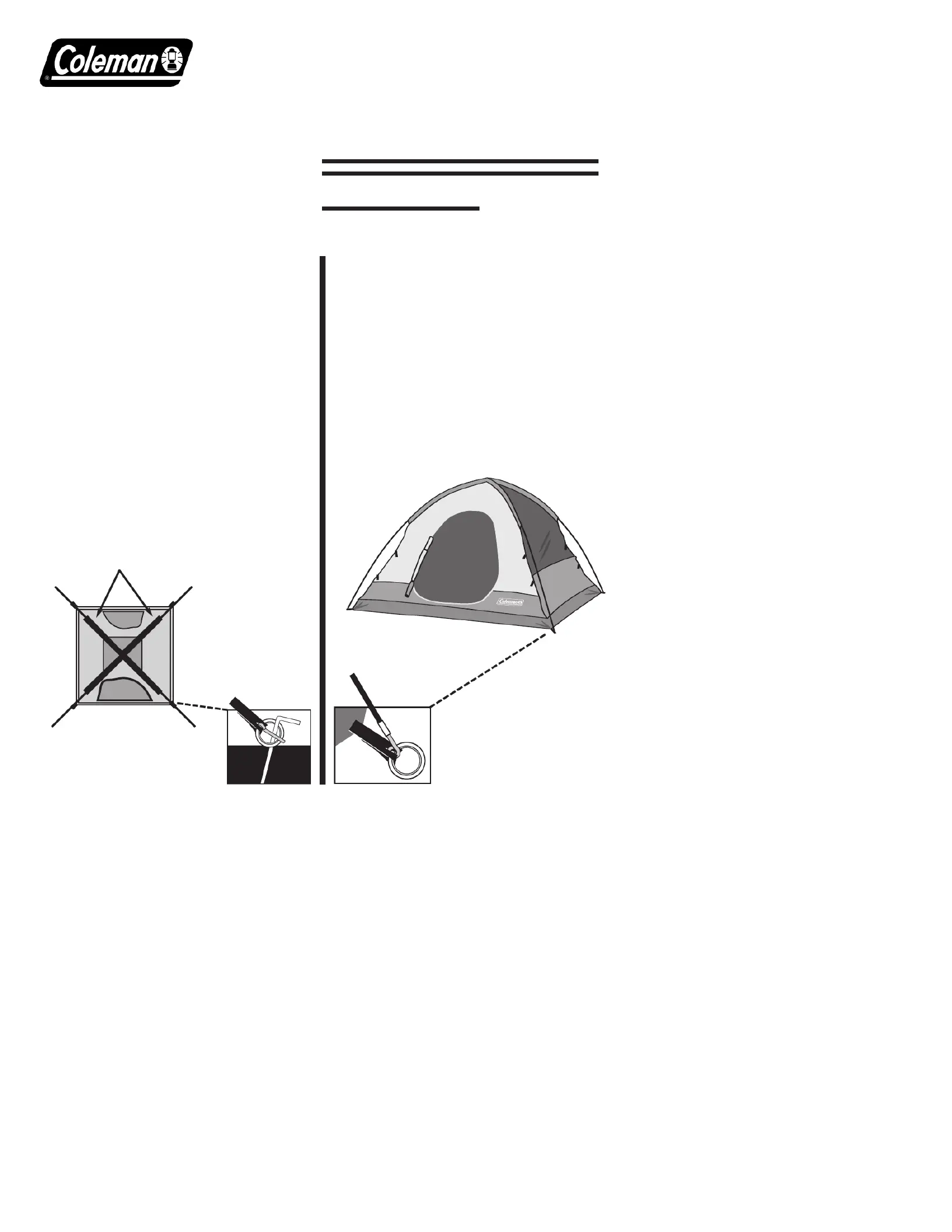

Connect Frame to Tent
– Insert one end of main tent pole
onto pin of pin & ring system at tent
corner. (illus. 3)
– Go to opposite end of pole and
gradually apply pressure to the pole
forming an arch until you are able to
insert the pin into the pole.
– Repeat for second pole. (illus. 4)
1Layout & Positioning
of Tent, Pole Assembly
– Layout and position tent with door
facing desired direction. (illus. 1)
– Unzip door.
– Stake down tent using the rings of the
pin & ring system at the corners of the
tent. Keep the floor taut. (illus. 2)
– Assemble frame poles by
interlocking shock-corded poles.
This will make two long poles.
– Insert the poles diagonally into pole
sleeves.The center of the poles should
cross forming an “X” in the middle of
tent. (illus. 1)
2
Assembled poles
inserted through
pole sleeves
illus. 1
illus. 4
Tent frame set-up
illus. 2
Tent stake through ring
illus.3
Insert pole end onto
pin & ring
SUNDOME®7’x7’
When You Are Ready To Set
Up Your Tent
– Select a level campsite clear of
rocks, branches and other hard
or sharp objects.
– Do not set up your tent under trees.
– For best results in windy conditions,
do not position the door of tent
into the wind.
Rainfly
Pole
Rainfly Part No.
9180-3041
Main Tent
Poles
POLE ASSEMBLY PARTS
Instructions apply to Part Number 2000001114
Part No. 9180-3061
Part No. 9180-3051
Stake down doormat
IMPORTED BY
SUNBEAM CORPORATION (CANADA) LIMITED
DBA JARDEN CONSUMER SOLUTIONS
20B Hereford Street, Brampton, Ontario L6Y 0M1
1-800-387-6161 • www.colemancanada.ca
MADE IN CHINA
PRINTED IN CHINA REV. 11/05
Things You Should Know
• Under certain conditions (cold weather, high humidity, etc.)
condensation will form on the inside surfaces of your tent. Condensation is
caused by water vapor from your breath, perspiration, or any wet clothing
inside your tent. It is NOT LEAKAGE through the tent fabric. It can be
minimized by removing wet clothing from your tent and by providing good
ventilation through the tent.
• Never store tent, even for a short period of time, without drying it
thoroughly and brushing off caked dirt. Do not pack stakes or poles inside
your tent. Use a separate storage bag.
• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.
NEVER PULL ON THE TENT FABRIC OR TENT STAKE LOOP TO
REMOVE STAKE.
• TENT POLES SHOULD NOT BE LEFT TELESCOPED
TOGETHER DURING STORAGE.
• Seam sealer has not been provided with your tent. For additional
protection we recommend seam sealing your tent prior to camping.
Seam sealer may be purchased through your local retailer or at your
local sporting goods store.
• Do not leave your tent set-up for weeks at a time, be aware that
exposure to the ultraviolet rays of the sun can seriously damage material
and/or cause it to become discolored.
WARNING: KEEP ALL FLAME AND HEAT SOURCES
AWAY FROM THIS TENT FABRIC. This tent meets the
flammability requirement s of CPAI-84. The fabric will burn if
left in continuous contact with any flame source. The
application of any foreign substance to the tent fabric may
render the flame -resistant properties ineffective.
Attach Tent to Frame
Using Frame Clips
– Attach frame clips along
the edges of tent to frame poles.
(illus. 5), (illus. 6)
– Make any adjustments to the tent
corner stakes that are needed.
3
4Attach Rainfly
– Assemble rainfly pole by
interlocking shock-corded pole.
– Insert rainfly pole into reinforced
pockets located at the center edges
of the underside of rainfly.
(illus. 7), (illus. 8)
– Attach underside of rainfly to the
rainfly pole. (illus. 8)
– Drape rainfly over tent frame, pole
side down. Rainfly pole should
point out over door and rear window.
– Connect the four elastic loops with
“S” hooks, (found at the rainfly
corners) to the fabric loops
near frame clips. (illus. 9)
– Secure rainfly with attachments
located on underside of fly. (illus. 10)
– Stake out the tent with (2) side
guylines. (illus. 10)
illus. 6
Assembled tent without rainfly.
illus. 5
Frame clips
illus. 7 Insert rainfly
pole into pocket on
underside of rainfly
illus. 10
Completed tent with rainfly.
illus. 8
Underside
of rainfly
attaches to
frame poles
Side guyline
Rainfly pole pockets
Rainfly pole pocket
Pole
attachments
illus. 9
“S” hooks
Fixez l’armature à la toile
– Introduisez un bout du mât de la tente
sur la cheville de l’ensemble cheville et
bague, au coin de la tente (ill. 3).
– Allez à l’autre bout du mât et arquez
progressivement le mât afin de pouvoir
insérer la cheville dans le mât.
– Agissez de la même façon avec l’autre
mât (ill. 4).
1Étalez et positionnez la
tente et les mâts
– Étalez et positionnez la tente en orientant
la porte dans la direction désirée (ill. 1).
– Ouvrez la glissière de la porte.
– Ancrez les coins de la tente à l’aide des
bagues des ensembles cheville et bague
se trouvant aux coins de la tente. Tendez
bien le tapis de sol (ill. 2).
– Emboîtez les mâts solidarisés de
l’armature pour les assembler. Vous
obtiendrez ainsi deux longs mâts.
– Enfilez les mâts diagonalement dans les
passants, afin qu’ils se croisent en leur
milieu, au centre de la tente (ill. 1).
2
Mâts assemblés, enfilés
dans les passants
ill. 1
ill. 4
Armature
de la tente montée
ill. 2
Piquet passé dans une bague
ill. 3
Insérez le bout
du mât sur la cheville
SUNDOME
®
2,1 x 2,1 m
Quand vous êtes prêt
à monter votre tente
– Choisissez un endroit propice:
de niveau et sans pierres, branches
ou matières dures et pointues
– Ne placez pas la tente sous les arbres
– Pour obtenir les meilleurs résultats s’il
y a du vent, mettez l’arrière au vent
Mât du
double toit
Double toit –
Pièce no9180-3041
Mâts de
la tente
PIÈCES VARIÉES
Instructions relatives au modèle 2000001114
Pièce no9180-3061
Pièce no9180-3051
