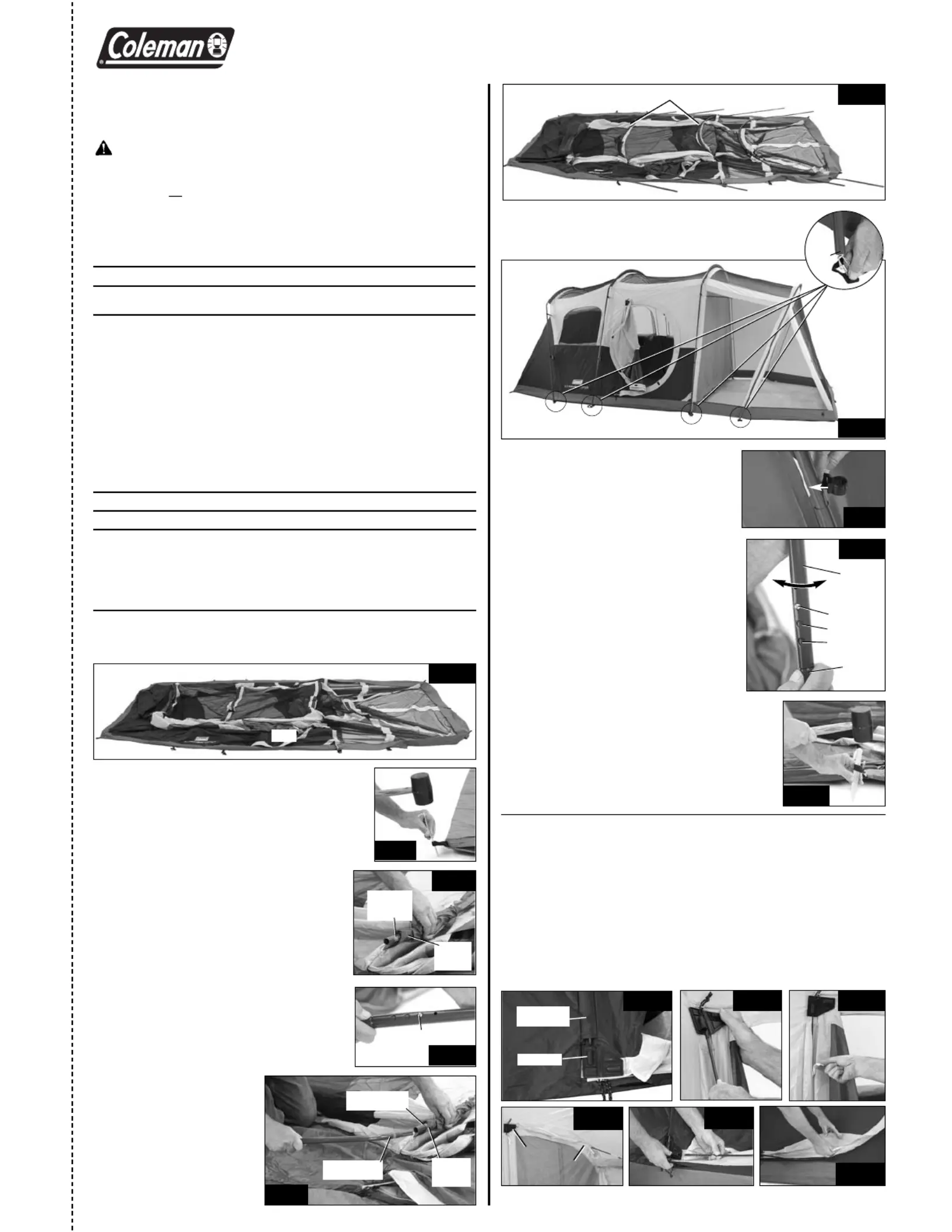

STITCH LINE
6. Rotate all eight Leg Poles upright and insert pin on
each web loop at the side locations as shown.
(Fig. 7 & 7A)
Fig. 6
Fig. 7
7A
Pin
7. Locate the plastic hooks at sides and
corners of tent, then snap onto Leg
Poles to attach. (Fig. 8)
9. Insert plastic stakes through web straps located
on both sides of tent, then drive in to secure.
(Fig. 10)
NOTE: It may be necessary to remove metal
stakes through web straps at side of tent and
screen room, pull tent taut, and drive in stakes
to secure. Fig. 10
8. To stretch tent to finished size:
• Push in button on Leg Pole while
twisting lower Leg Pole section
counterclockwise (Fig.9);
• Pull up on top Leg Pole section until
tent is taut;
• Twist the lower Leg Pole clockwise
until the button locks into the center
or lowest hole;
• Repeat on remaining Leg Poles.
Fig. 8
Fig. 9
Button
Center Hole
Lower Hole
Lower
Leg Pole
Section
Upper
Leg Pole
Section
ELITE WEATHERMASTER®6 SCREENED TENT
MODEL 2000001588
Curved Ridge Poles with Red Markings in center sleeves
Hinged, Rigid Door
1. Assemble Vertical Door Pole (shorter black pole with plastic tips);
then insert through zippered vertical pole sleeve on hinged side of
door. (Fig. 11)
2. Insert end of Vertical Door Pole into bottom hinge plate, apply
pressure to form a slight bow, then insert other tip of pole into top
hinge. Zip up vertical pole sleeve. (Fig. 12 & 13)
3. Assemble Door Pole (longer black pole with plastic cap tips); then
insert into zippered pole sleeve at top of door. (Fig. 14)
4. Insert end of Door Pole into top hinge plate, apply pressure to form
a bow, then insert other tip of pole into the bottom hinge. (Fig. 15)
5. Zip up pole sleeve to enclose Door Pole. (Fig. 16)
Fig. 11 Fig. 12 Fig. 13
Fig. 14 Fig. 15
Fig. 16
Fig. 1
To Set Up Tent
1. Unfold tent and spread out on a clean, level surface with the door
facing the desired direction. Unzip doors. (Fig. 1)
4. Assemble eight, steel, shock-corded, Leg
Poles. Push down on steel button on tapered
end and insert into end with four holes.
NOTE: Make sure steel button locks into
third hole on pole as shown. (Fig.4)
5. Insert curved end of Leg Poles
(with red marking) into the
ends of the Ridge Pole
(with red marking). Insert
curved end of remaining
short Leg Poles into the
ends of the remaining
Ridge Poles. (Fig. 5 & 6)
Door
Ridge Pole with
Red Marking
Button in third hole
Fig. 4
Fig. 5
Fig. 2
Sleeve
with Red
Trim
Curved End of
Long Leg Pole
2. Pull four corners of tent taut, then secure by
driving stakes through web loops at an angle for
better anchoring. (Fig. 2)
Ridge Pole
with Red
Marking
Fig. 3
Sleeve
with Red
Trim
3. Assemble four, steel, shock-corded, curved
Ridge Poles. Insert Ridge Poles (with red
marking) into center sleeves on top of tent
with the red trim (Fig. 3). Insert the remain-
ing curved Ridge Poles into the other two
sleeves on top of tent.
Vertical Pole
Sleeve
Door Hinge
Pole
Sleeve
Top
Door
Hinge Pole
Sleeve
Top
Door
Hinge
(continued on other side)
Pole Descriptions
Pole Pole Pole
Description Qty. Dia. Repair Kit Replacement Kit
Long Leg Pole, steel
(w/ red marking) 4 19mm N/A 5010000608
Short Leg Pole, steel 4 19mm N/A 5010000610
Curved Ridge Pole, steel
(w/ red marking) 2 19mm N/A 5010000607
Curved Ridge Pole, steel 2 19mm N/A 5010000609
Awning Pole, black,
fiberglass, metal tips 1 6.3mm 5010000543 5010000545
Door Pole, long, thin, black,
fiberglass, rubber tips 1 6.3mm 5010000543 5010000545
Vert. Door Pole, short, black,
fiberglass, rubber tips 1 6.3mm 5010000543 5010000545
Before you begin
Read all instructions before set up.
• Select a level site clear of rocks, branches, and other hard or sharp
objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of potential lightning strikes
or falling tree limbs in inclement weather.
• Secure with all stakes and guylines provided to prevent property damage
or personal injury.
• For best results in windy conditions, position narrow end of tent into
the wind.
• Enlist the help of at least one other person to assist you when it is time
to assemble the tent.
Self-Rolling Window Spring Descriptions
Color Code Description Qty. Length Replacement Part No.
Red 1 360mm 5010000624
Green 3 610mm 5010000627
Orange 2 670mm 5010000628
CAUTION: “Springs” may have sharp edges. Handle with care to avoid
injury. Keep out of reach of children.
Self-rolling Windows
CAUTION: “Springs” may have sharp edges. Handle with care to avoid
injury. Keep out of reach of children.
NOTE: Carefully unroll metal “springs” stored in bag with stakes. The color
marking on each “spring” should match the color of the fabric “flag” sewn
to the window or door sleeve opening. (Fig. 24)
1. Locate sleeve(s) in window panel, open hook &
loop fastener; then insert “spring(s)” with match-
ing color marking. (Fig.24 & 25)
NOTE: When inserting into the sleeve(s), the
color marking on the “spring(s)” should always
face the operator.
2. Close hook & loop fastener to secure.
3. Before unzipping and opening the window,
push in at top to engage “spring(s)” to activate
the self-rolling feature. (Fig. 26)
4. Unzip to allow the window panel to roll down
automatically; zip back to close window panel.
(Fig. 27 & 28)
NOTE: Repeat steps above for inserting the color
matching “spring(s)” into sleeve(s) for the rest of
the windows.
3. Insert tapered metal tip on Awning
Pole into grommet located on web
strap clipped to center Leg Pole.
(Fig. 19)
4. Go to opposite center Leg Pole on
other side of door and gradually
apply pressure to the pole forming
an arch. Insert metal tip into the
grommet.
5. Locate all hook & loop fasteners on underside
of Rainfly and wrap around Leg Poles and
Awning Pole locations. (Fig. 20)
Cooler Access
The smaller zippered opening at the side of tent is
designed for added ventilation and easy access to
your beverage cooler.
1. To use as a vent, unzip flap to expose screen.
2. To use as a cooler access, unzip other flap to
make an avenue to bring beverages into tent.
(Fig. 32)
STITCH LINE
Attaching Room Divider
1. Divider Panel can be installed through
center of the tent by inserting the
toggles through
top and bottom
fabric loops as
shown.
(Fig. 29 & 30)
To Store
1. All “springs” must be rolled up and placed in bag with stakes.
2. All poles and stakes must be placed in the storage bag to prevent
damage to the fabric items placed in the carry case.
3. Make sure tent is clean and dry before placing in carry case.
4. Remove rainfly, spread out on floor of tent, then unzip door & vents
before taking tent down for storage.
5. Neatly fold tent to width of pole storage bag, place on tent, roll
tightly, and place in carry case.
5. Store in a clean, dry area.
Electrical Cord Access
1. Unzip the access panel in the lower
left corner of tent and bring in an
electrical cord.
NOTE: Use only UL approved cords
rated for outdoor usage. (Fig. 31)
Fig. 29
Fig. 32
Fig. 31
Fig. 22
Fig. 20
Fig. 23
Fig. 19
Grommet
End Leg
Pole
Location
7. Loop ends of guylines over stakes, stretch tight, then hammer into
ground at an angle as shown. (Fig. 23 & 23A)
Awning Pole
To Attach Rainfly
1. Drape Rainfly over tent. Make sure seams on Rainfly are facing down
and centered over poles of the tent. (Fig. 17)
NOTE: Hook and loop fasteners, located on seams of underside of
Rainfly, should be centered over Ridge Poles.
Fig. 17
Rainfly
Door
Sleeve
Fig. 18
2. Assemble thin, black, shock-corded
Awning Pole with metal tips; then
insert through sleeve in Rainfly above
door. (Fig. 18)
Awning
Pole
Sleeve
Fig. 30
Divider
Panel
Top
Fabric
Loops
Fig. 21
Center
Leg Pole
Location
23A
Guyline
Door
Window
Panel
Window Panel
Push in at top to
engage “spring(s)”
Color
Dot
Fig. 28
Fig. 24
Fig. 25
Sleeves
Sleeve
Fig. 27
Fig. 26
6. Insert metal hook on
elastic straps on
Rainfly into the hole
on each Leg Pole.
(Fig. 21 & 22)
Self-rolling Windows
(continued)
CAUTION: All “springs” must be removed from sleeves before tearing
down tent to avoid damage to the tent fabric or part. To avoid injury,
carefully roll up “springs”. Store rolledKeep out of reach of children.
“springs in bag with stakes.
Color
“Flag”
Tent Lighting System
Your tent comes pre-wired with the Coleman
®Tent Lighting
System. See manual that came with the light and carefully read
all instructions before use then save for future reference.
Things You Should Know:
• Under certain conditions (cold weather, high humidity, etc.) condensa-
tion will form on the inside of your tent. Condensation is caused by water
vapor from your breath, perspiration, or any wet clothing inside the tent.
It is NOT LEAKAGE through the tent fabric. It can be minimized by
removing wet clothing from your tent and by providing good ventila-
tion through the tent.
• Tree limbs, tree sap, bird droppings, or moisture steadily dripping off
tree limbs can cause damage to the tent fabric and its coating resulting
in leaks or loss of flame-resistant properties.
• Never store tent, even for a short period of time, without drying it
thoroughly and brushing off caked dirt. Do not pack stakes or poles
inside your tent. Use a separate storage bag.
• Stakes should be removed by pulling on the stake itself. NEVER PULL ON
THE TENT TO REMOVE STAKES AS THIS COULD RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
• Tent poles should not be left telescoped together during storage.
• Do not leave your tent set-up for weeks at a time. Be aware that exposure
to ultraviolet rays from the sun can seriously damage material and/or
cause it to become discolored.
WARNING: Keep all flame and heat sources away
from this tent fabric.
This tent meets the flammability requirements of CPAI-84. The
fabric may burn if left in continuous contact with any flame source.
The application of any foreign substance to the tent fabric may
render the flame-resistant properties ineffective.
Color “Flag”
The Coleman Company, Inc. • 3600 N. Hydraulic • Wichita, Kansas 67219
1-800-835-3278 • www.coleman.com
MADE IN CHINA • PRINTED IN CHINA
© 2008 The Coleman Company, Inc.
Coleman®, , , and Weathermaster®are registered trademarks of
The Coleman Company, Inc.
4010003995 (20081030)
Produktspezifikationen
| Marke: | Coleman |
| Kategorie: | Zelt |
| Modell: | Elite Weathermaster 6 |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Coleman Elite Weathermaster 6 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Zelt Coleman
17 August 2024
16 August 2024
16 August 2024
15 August 2024
15 August 2024
14 August 2024
14 August 2024
14 August 2024
14 August 2024
14 August 2024
Bedienungsanleitung Zelt
- Zelt Crivit
- Zelt Philips
- Zelt Tchibo
- Zelt Thule
- Zelt Velleman
- Zelt IKEA
- Zelt Asaklitt
- Zelt Black Diamond
- Zelt Dometic
- Zelt Easy Camp
- Zelt Edges
- Zelt Eureka
- Zelt High Peak
- Zelt Hilleberg
- Zelt Jack Wolfskin
- Zelt McKinley
- Zelt Mountain Hardwear
- Zelt Nigor
- Zelt Nomad
- Zelt Obelink
- Zelt Outwell
- Zelt Robens
- Zelt Rocktrail
- Zelt Skandika
- Zelt Trimm
- Zelt Vango
- Zelt Vaude
- Zelt Vrijbuiter
- Zelt Wechsel
- Zelt Wildfox
- Zelt Doréma
- Zelt Isabella
- Zelt Ventura
- Zelt Walker
- Zelt Perel
- Zelt Babymoov
- Zelt Holtkamper
- Zelt Raclet
- Zelt Trigano
- Zelt Wood's
- Zelt Kayoba
- Zelt Bestway
- Zelt SereneLife
- Zelt Dwt-Zelte
- Zelt Gerjak
- Zelt Chinook
- Zelt Kelty
- Zelt Sierra Designs
- Zelt OZtrail
- Zelt Sorara
- Zelt Wilderness Equipment
- Zelt TOOLPORT
- Zelt MSR
- Zelt Hamron
- Zelt Zempire
- Zelt Camp Master
- Zelt Black Wolf
- Zelt Big Agnes
- Zelt Casaria
- Zelt Robinhood
- Zelt San Hima
- Zelt Kathmandu
- Zelt Gazebo Penguin
- Zelt De Waard
- Zelt Wynnster
- Zelt Cabanon
- Zelt Aart Kok
- Zelt Goldcamp
- Zelt Brunner
- Zelt Carl Denig
- Zelt LECO
- Zelt Helsport
- Zelt Khyam
- Zelt Nordisk
- Zelt Grand Canyon
- Zelt Sojag
- Zelt Calima
Neueste Bedienungsanleitung fĂĽr -Kategorien-
8 Oktober 2024
8 Oktober 2024
5 Oktober 2024
2 Oktober 2024
2 Oktober 2024
1 Oktober 2024
1 Oktober 2024
1 Oktober 2024
1 Oktober 2024
1 Oktober 2024
