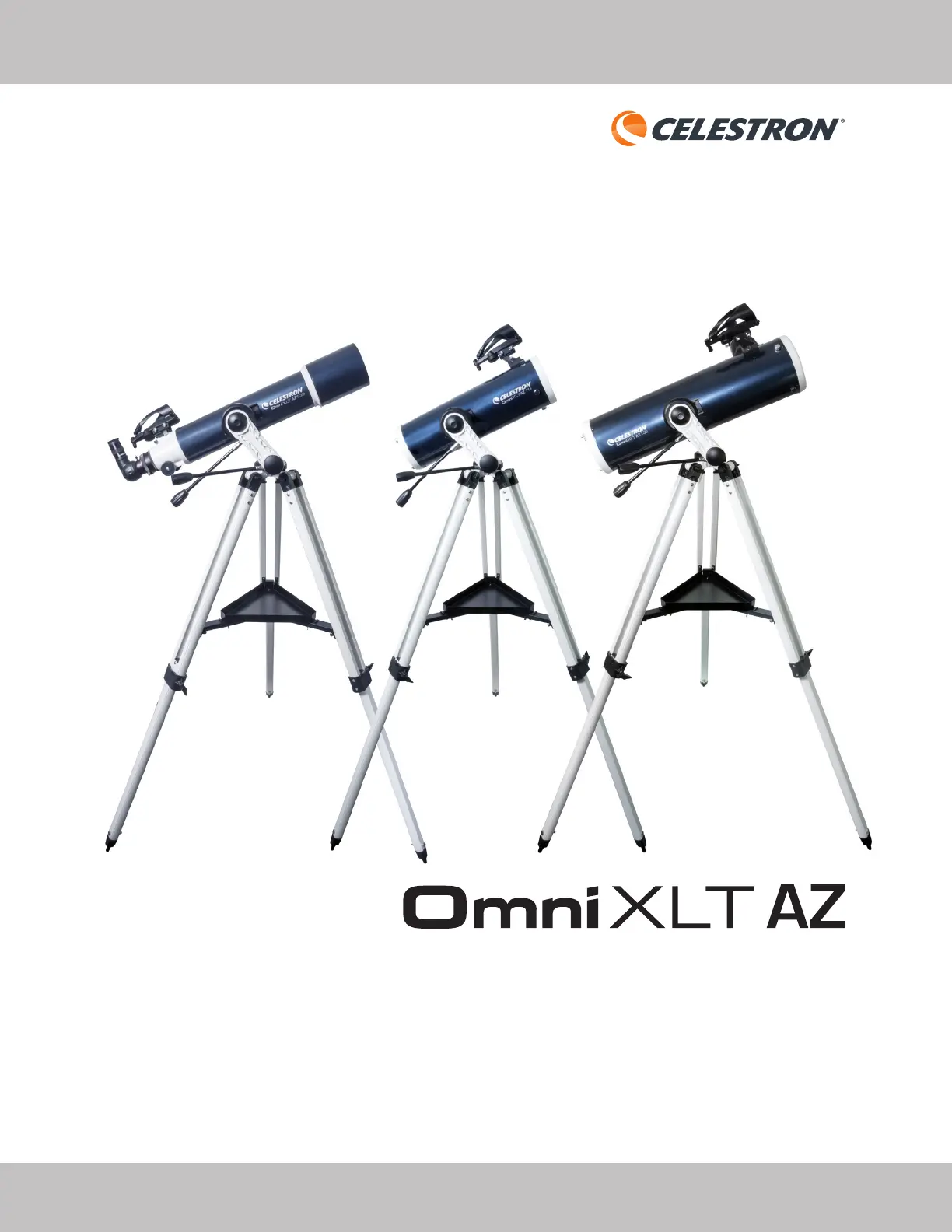

INSTRUCTION MANUAL
Model #22157 -DS
ENGLISH
OMNI AZ 102
2
SOLAR WARNING
Never look directly at the Sun with the naked eye or with a telescope unless you have the proper solar fi lter. Permanent
and irreversible eye damage may result.
Never use your telescope to project an image of the Sun onto any surface. Internal heat build-up can damage the
telescope and any accessories attached to it.
Never use an eyepiece solar fi lter or a Herschel wedge. Internal heat build-up inside the telescope can cause these
devices to crack or break, allowing unfi ltered sunlight to pass through to the eye.
Do not leave the telescope unsupervised, especially when children or adults unfamiliar with the correct operating
procedures of your telescope are present.
We recommend saving your telescope box so it can be used to store the telescope when it is not in use. Unpack the
box carefully as some parts are small. Use the parts list below to verify that all parts and accessories are present.
WHAT’S IN THE BOX
1. Telescope Tube
2. StarPointer Finderscope
3. Smartphone Adapter
(Smartphone not included)
4. Bluetooth Remote Shutter
Trigger
5. Eyepiece
6. Erect Image Diagonal
7. Slow Motion Knobs
8. Tripod
9. Omni AZ Mount
10. Hex-key Wrench
(Inside mount)
11. Accesory Tray
3
10
2
9
11
1
5
6
7
8
NOTE: Smartphone not included.
PARTS LIST
4
3
The Omni AZ mount and tripod come fully assembled, so
setting it up is easy.
1. Remove the tripod and mount from the box.
2. Loosen the hand knobs at the bottom of each leg and
extend the inner section of the leg to the desired length.
Tighten the knobs to secure the legs, being careful not
to over tighten.
3. Stand the tripod upright and pull the tripod legs apart
until the center brace snaps into place.
4. Place the accessory tray on top of the center brace and
line up the threaded post on the bottom of the tray with
the hole in the top of the center leg brace. Rotate the
tray clockwise unitl it is secure.
5. Make sure the leg hinge bolts are secure by snugging
down the black thumbnuts at the top of each leg.
Depending on your specifi c use of the telescope, you may
wish to change the angle of the mount arm to give you
additional range of motion. The mount comes set up for
the astronomical use; it can move upward but is limited
in its downward motion. If you are using the mount for
terrestrial observation from an elevated location (cliff top,
balcony, etc.) and you want to point the scope well below
the horizon, you will need to change the angle of the mount
arm to accommodate this.
To make this adjustment:
1. Unthread the round cover on the bottom of the vertical
arm of the mount.
2. Using a 4mm hex-key wrench (user supplied), remove the
three screws under the cover.
3. Rotate the mount arm so that it is pointed straight up and
thread the three screws back in.
4. Tighten the screws and replace the round cover.
ASSEMBLING YOUR TELESCOPE
ADJUSTING THE ANGLE OF THE MOUNT ARM
THE MOUNT
