Seite 1/33

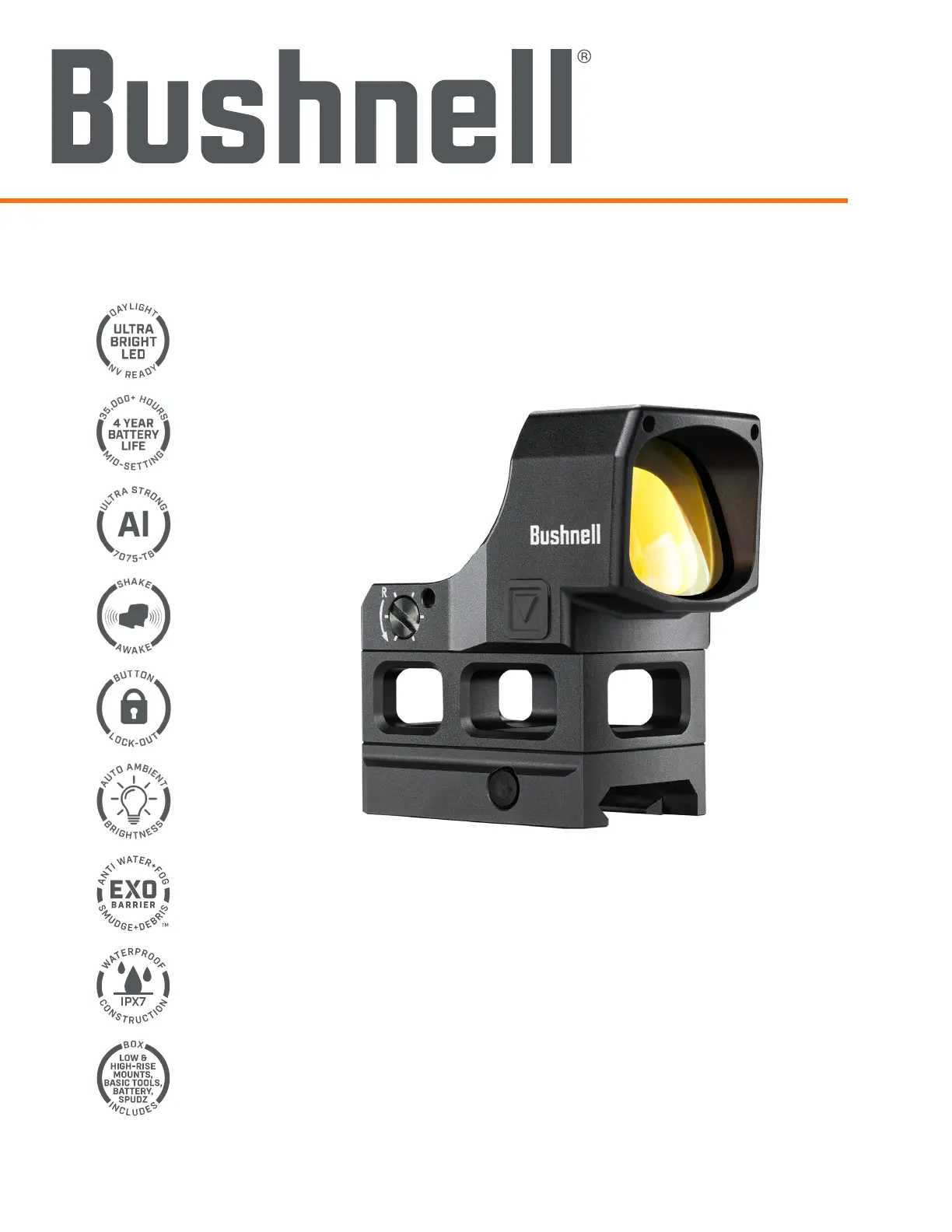

Model #: RXM300 02-23
RED DOT REFLEX SIGHT OWNER’S GUIDE
RXM-300
TABLE OF CONTENTS
PARTS GUIDE 3
MOUNTING YOUR RXM-300 SIGHT 4
MOUNTING REFERENCE 4
MOUNTING DETAILS - DIRECT APPLICATIONS 4
MOUNTING DETAILS - ACCESSORY BASE RAILS 5
RED DOT LENS POSITIONING 5
CORNER SPEED HOLES 5
INSTALLING THE BATTERY 5
SWITCHING POWER ON/OFF 5
ADJUSTING DOT BRIGHTNESS 6
SHAKE AWAKE (SA) FEATURE 6
LIGHT SENSING CONTROL (LSC) MODE 6
BUTTON LOCKOUT FUNCTION (LOF) MODE 6
SIGHTING IN/ZEROING YOUR RXM-300 SIGHT 7
OPERATION UNDER EXTREME CONDITIONS 7
TROUBLESHOOTING 7
TECHNICAL SPECIFICATIONS 8
WARRANTY 8
Click on each topic in the Table of Contents to go directly to it.
LANGUAGES
FRANÇAIS 9
ESPAĂ‘OL 5
DEUTSCH 1
ITALIANO 7
3
Click here to return to the Table of Contents
The Bushnell RXM-300 is engineered with performance attributes and versatile mounting solutions for various small
arms such as pistols, rifles, and shotguns, whether for plinking, competition, hunting, or home defense. The RXM-300 is
powered by a long-lasting CR2032 lithium-metal battery with over 35,000 hours of battery life (at a brightness level of
“6”). In addition, it delivers a crisp 4 MOA dot with 12 brightness levels and push-button operation in a compact package.
Other optional features that may be utilized in any desired combination include shake-awake technology, auto-ambient
reticle brightness control, and button lockout.
Note: battery life as listed will vary depending on the brightness settings used (stated life estimate is based on a typical,
medium brightness setting), freshness and quality of the battery, ambient temperature, and other factors.
Your sight’s illuminated reticle has been pre-focused, so the aiming point always appears in focus on the target. By
comparison, open sights do not allow for easy or adequate focusing because three objects (rear sight, front sight, and
target) have different focal lengths, resulting in a compromised focus.
The RXM-300 can be easily used with both eyes open (eye relief is unlimited), increasing the shooter’s awareness of the
surrounding environment and providing faster target acquisition due to the parallax free design, as the dot follows the
movement of the user’s eye while remaining fixed on the target. In addition, the sight is engineered for greater speed and
accuracy and allows focus on the target rather than a reticle, thus increasing accuracy.
WARNING: NEVER LOOK AT THE SUN THROUGH THE RED DOT REFLEX SIGHT (OR ANY OTHER OPTICAL
INSTRUMENT). IT MAY PERMANENTLY DAMAGE YOUR EYES.
You’ve made the right decision by choosing the Bushnell RXM-300 Red Dot Reflex Sight!
PARTS GUIDE
1. Battery Compartment Cover
2. Low-Profile Mount
3. High-Rise Spacer
4. Lens
5. Elevation Adjustment
6. Windage Adjustment
7. Hold-Down Fasteners
8. Mount Cross-Bolt Screw
9. Brightness Up Button
10. Brightness Down Button
1
BATTERY POLARITY ORIENTATION:
Positive (+) side facing up,
Negative (-) facing down
910
4
2
6
5
7
8
3
Note: Remove the plastic disc
under the button battery before
first use.
A
B
C
D
G
F
E
H
Product accessories included:
A. Protective Cover
B. Battery Door & W/E Adjustment Tool
C. CR2032 Battery
D. T15 Torx L-Key
E. Type A: 6-32 UNC 9.8mm long
F. Type B: 6-32 UNC 11.8mm long
G. Type C: 6-32 UNC 25.5mm long
H. Spudz Cleaning Cloth
