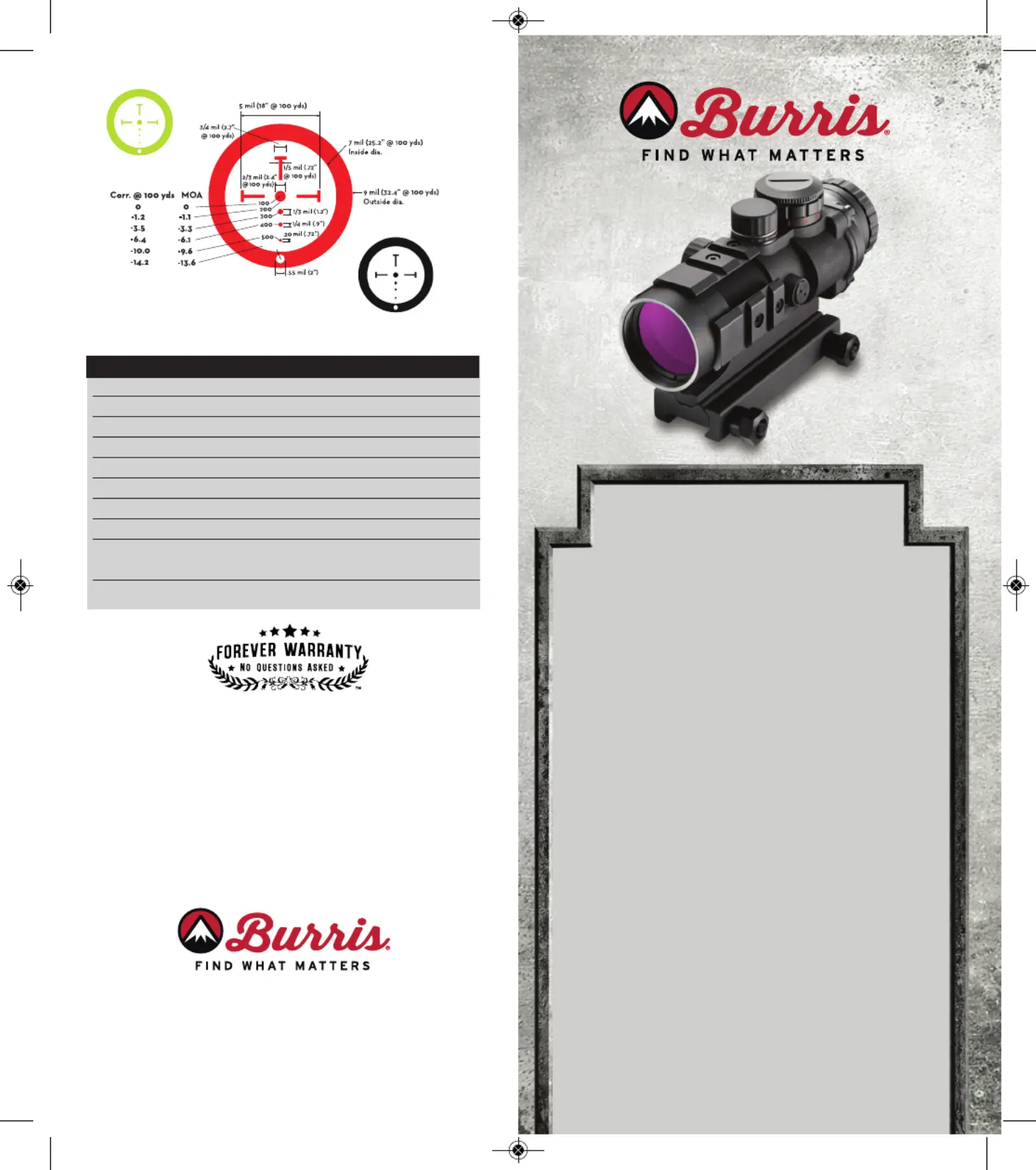

AR-332â„¢
Prism Sight
Users Guide
The Burris AR-332 prism sight is a tough,
yet compact ‘Close Quarters’ optic made for
tactical carbines. With its 3x magnification and
illuminated Ballistic CQâ„¢ reticle, it provides
quick target acquisition for close-in or fast
moving targets, but also features easy-to-use
drop-compensation for accurate shots out to
600 yards. At 100 yards, the sight delivers a
generous field-of-view of 32 feet.
The AR-332 is waterproof, shockproof, and
fogproof with fully multi-coated lenses
for brightness and clarity. Users have the
choice of three reticle presentations. When
non-illuminated, the reticle is black, but in
lighted modes the user has a choice of red or
green with five power settings each. The sight
includes a sunshade, as well as flip-up lens
covers. For tactical versatility, it has three short
integral Picatinny rails for accessories.
Specifications
Warranty
We will repair or replace your Burris optic if it is damaged
or defective. The warranty is automatically transferred to
future owners.
• No repair or replacement charge
• No warranty card needed
• No receipt needed
• No questions asked
Field of View ( in feet @ 100 yards) 32
Eye Relief (inches) 2.5
Close Focus (feet) 9
Click Value in MOA 1/2 MOA
Max Adjust in MOA 80
Weight (Ounces) 16.6
Height Above Rail (inches), to optic centerline 1.6
Overall Length (inches) 5.30*
Battery Life - High 200 hours
Battery Life - Medium 500 hours
* without sunshade or flip-up covers
AR-332
Burris Company
331 East 8th St., Greeley, CO 80631
(970) 356-1670
BurrisOptics.com
Facebook.com/BurrisOptics
INSTR-1015
600
Reverts to black when
battery is off
Green Setting
Red Setting
AR-332 user guide_Layout 1 8/7/15 11:27 AM Page 1
Battery Replacement
The AR-332 is powered by a commonly available
CR2032 lithium battery that delivers 200 hours of life
at the highest power settings, and approximately
500 hours at medium settings. The battery
compartment is on the top of the sight, inside the
reticle illumination selector knob. Choose a red or
green power setting by aligning the number setting
with the white dot to the rear of the battery housing.
To open the compartment, simply hold the
illumination selector knob to keep it from rotating
while you use a coin or other tool to turn the cap
counter-clockwise. Drop in the replacement battery
with the positive side (+) face up, and re-tighten
completely.
Note: The lid must be in place and sufficiently
tight to maintain the waterproof capability of
the AR-332.
Mounting the Optic
Picatinny Rail- The sight comes factory-ready to
mount to a Picatinny rail system. Using a ½" wrench,
loosen the nuts on the left side of the base to open
the mount just enough to fit over the width of the
rail. Once positioned on the rail, finger-tighten to
test the position on the rail. The normal eye relief of
the AR-332 is 2.5". Once properly located on the rail,
use the wrench to tighten the base nuts to 65 in-lbs.
For convenience, Burris offers an AR-QD Mount
(#410349) for quick attachment to your gun and
return-to-zero reliability. It fits any Picatinny base
and is ideal for mounting the AR-332 on flat-top
platforms.
Carry Handle - In order to mount to an AR carry
handle you must first remove the Picatinny Rail
Mounting Bracket. This is attached to the sight body
by two screws on the underside of the mount. Since
these screws were installed using a medium-
strength but non-permanent thread locker, they will
be harder than normal to remove. Once the sight is
free of the mount, locate the sight base in the
handle channel such that it will accept the thumb-
screw provided with the sight and insert from below.
Finger-tight is most often sufficient, but holes in
the knurled knob are provided to allow additional
tightening with a small rod.
Re-Attaching the Picatinny Rail Base - If you wish
to re-install the Picatinny Base, be sure to use a
removable thread locker such as Loctite 242 when
securing the Picatinny Base to the sight body. This
prevents movement between the sight and the
mount.
Focus Adjustment
The prism sight has a diopter adjustment ring on the
ocular end which is used to sharpen reticle focus to
your preference.
Sighting In
We recommend sighting in for 100 yards since the
Ballistic Drop Compensation is calculated for that
distance. Click values are 1/2 MOA and the sight has
80 total MOA of adjustment.
Be sure you have a safe location for sight in. Bore
sight using a commercial bore sighting tool; if you do
not have a boresighting tool, follow this procedure.
Place the weapon in a shooting rest with the bolt and
carrier removed, and the stock assembly angling
down and out of your way. Align the reticle on the
bullseye and then look down the bore to determine
rough bullet placement. The AR-332 is designed with
the reticle centered in its range of movement, so if
the bore aligns well off the bullseye and target, you
should check for a mounting problem. Re-assemble
the rifle and fire a few shots. Make corrections as
necessary using the adjustment knobs that have
bullet-strike directional arrows. Continue until the
sight is zeroed and then replace the adjustment
knob caps.
AR-332 user guide_Layout 1 8/7/15 11:27 AM Page 2
