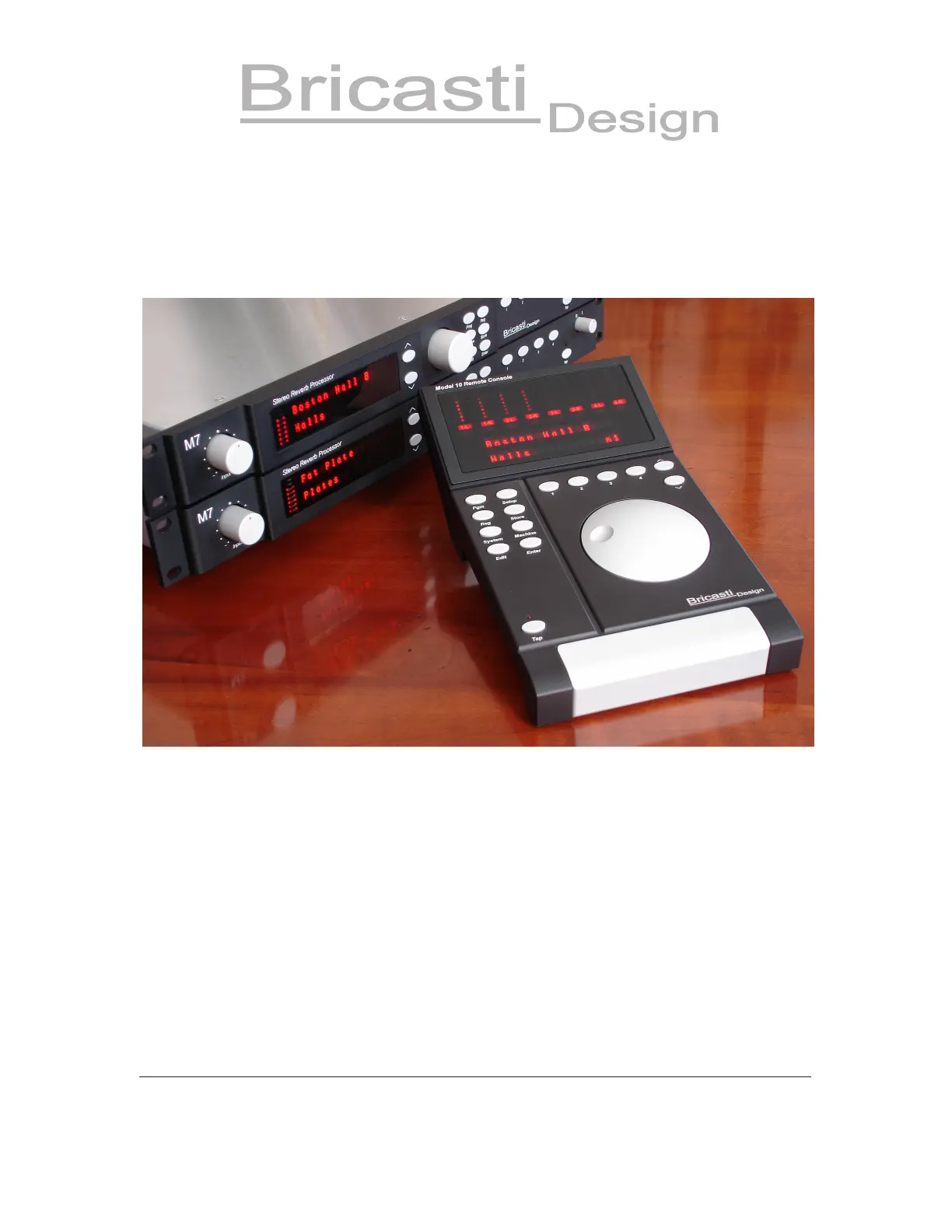

The Model 10 Remote Console
The new Bricasti Design Model 10 remote console is a dedicated hardware remote
controller for use with the M7 stereo reverb processor. Following the same design criteria
as the M7, the M10 casing is manufactured and milled from solid anodized aluminum,
for an enduring design and long life. The M10 is also designed to be simple to use, and
easy to interface; utilizing a standard RS422 serial interface. In application, it can be very
useful when using more than one M7 or when there is a need to be more in the sweet spot
when making adjustments in a large mixing environment.
M10 Features
Back Side
Custom milled solid aluminum casing and buttons, ne nished and anodized for an enduring •
design and classic look.
Controls from 1-8 x M7s•
Connects to the rst M7 via RS422 9pin serial cable, 10 meter cable provided, up to 30meters• that
is 480L compatible, simple to install with no practical distance limits, or IP addresses to congure.
Longer distances may require an additional power source for the M10.
Simple serial ‘loop thru” for connecting more M7s, connect to the rst and loop to the second, and •
third etc.
DC Power is supplied from the M7 through the cable, no wall warts, or external supplies.•
8 meters, for 4 stereo pairs, metering 4 machines at a time.•
Machine selection is a by dedicated Machine key in the M10:•
Press the machine key to “toggle or step though” for 2 x M7 operation.o
Press machine key and use the Jog wheel to step through the machineso for control of more
the 2 x M7s.
Press machine key and use the 1-4 keys to directly access any machine, for control of more o
the 2 x M7s.
Use the “up down keys” to change banks and for metering for control of more the 4 x M7s.o
Same clear easy to read displays as used in the M7•
Same user interface as the M7, with the addition of Machine and Setup keys, so no need to learn •
something new.
Simultaneous control of the M7 from both the M7s front panel and or the M10 with a lock out.•
Setup key for the M10s local memory, congurations, and settings.•
Future enhancements:
Control of multiple M7s for multi-channel applications.•
Available May-June 2008 through select world wide distribution
www.bricasti.com
