BB44 BB48 BB54
WIDE BODY TV CARTS
Assembly Instructions
PARTS LIST
TOOLS REQUIRED
HARDWARE LIST
Ref Qty Part# Description
AA 24 030-0300 5/8" Square Bolt
BB 24 030-0002 5/16-18 Hex Serrated Nuts
1 010-1106 Hex Wrench
Qty Part# Description
2 010-1891 Top & Middle Shelves
1 010-1892 Bottom Shelf
2 022-1528 R/Front & L/Rear Legs (BB44)*
022-1564 R/Front & L/Rear Legs (BB48)*
022-1379 R/Front & L/Rear Legs (BB54)*
2 022-1529 L/Front & R/Rear Legs (BB44)**
022-1565 L/Front & R/Rear Legs (BB48)**
022-1380 L/Front & R/Rear Legs (BB54)**
2 015-0002 4" Casters w/o Lock
2 015-0003 4" Casters w/ Lock
OR
2 015-0017 5" Casters w/o Brake
2 015-0018 5" Casters w/ Brake
Hex Wrench (Provided)
Adjustable Wrench
Rubber Mallet
STEP 1

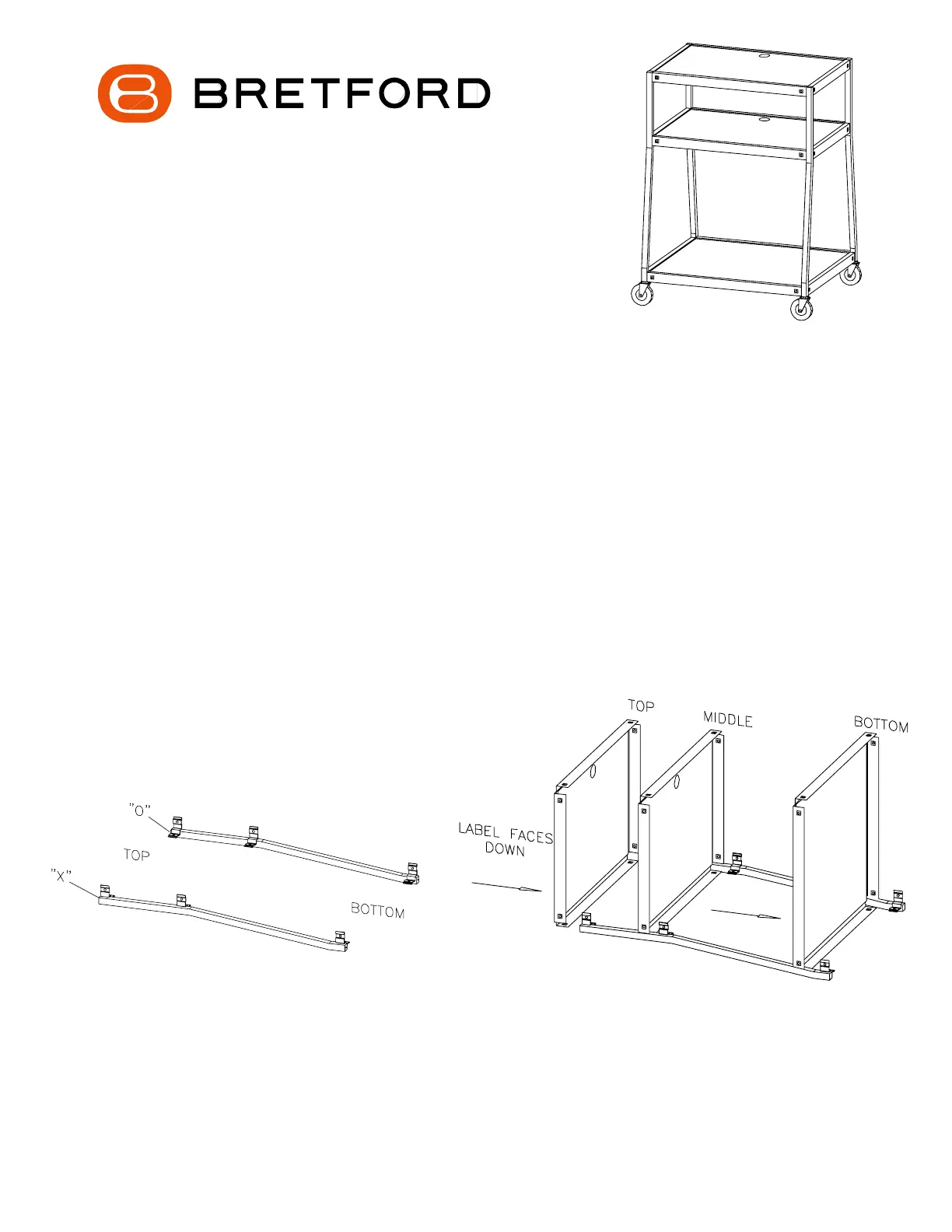

Position the front legs (stamped "O" & "X") with the brackets facing up and in as shown in Figure 1.
Slide each shelf onto the legs making sure the brackets are inside of the shelves (FIGURE. 2).
NOTE: The grommet holes should face up.
FIGURE 1 FIGURE 2
* These legs are marked with a "X"
** These legs are marked with an "O"
BRETFORD BASICS

STEP 3
STEP 4
STEP 2
Slide the 2 remaining legs onto the shelves as shown.
Make sure the brackets are inside the shelves.
(Note the orientation of the "X" and "O" legs)
Secure each corner of the shelves with bolts (AA) and
nuts (BB) as shown.
Tap each caster into the bottom of each leg with a rubber mallet. Make sure
each caster is SECURELY in place and stand unit upright.
AA
BB
Part #031-1067
Rev. 06.18.04 CH
Bretford Bretford Ltd.
11000 Seymour Avenue Technology House
Franklin Park, IL 60131 2 Etongate, 110 Windsor Road
TEL: 847.678.2545 Slough, Berkshire SL1 2JA England
800.521.9614 TEL: 01753 53 99 55
FAX: FAX:847.678.0852 01753 53 94 78
800.343.1779
www.bretford.com
