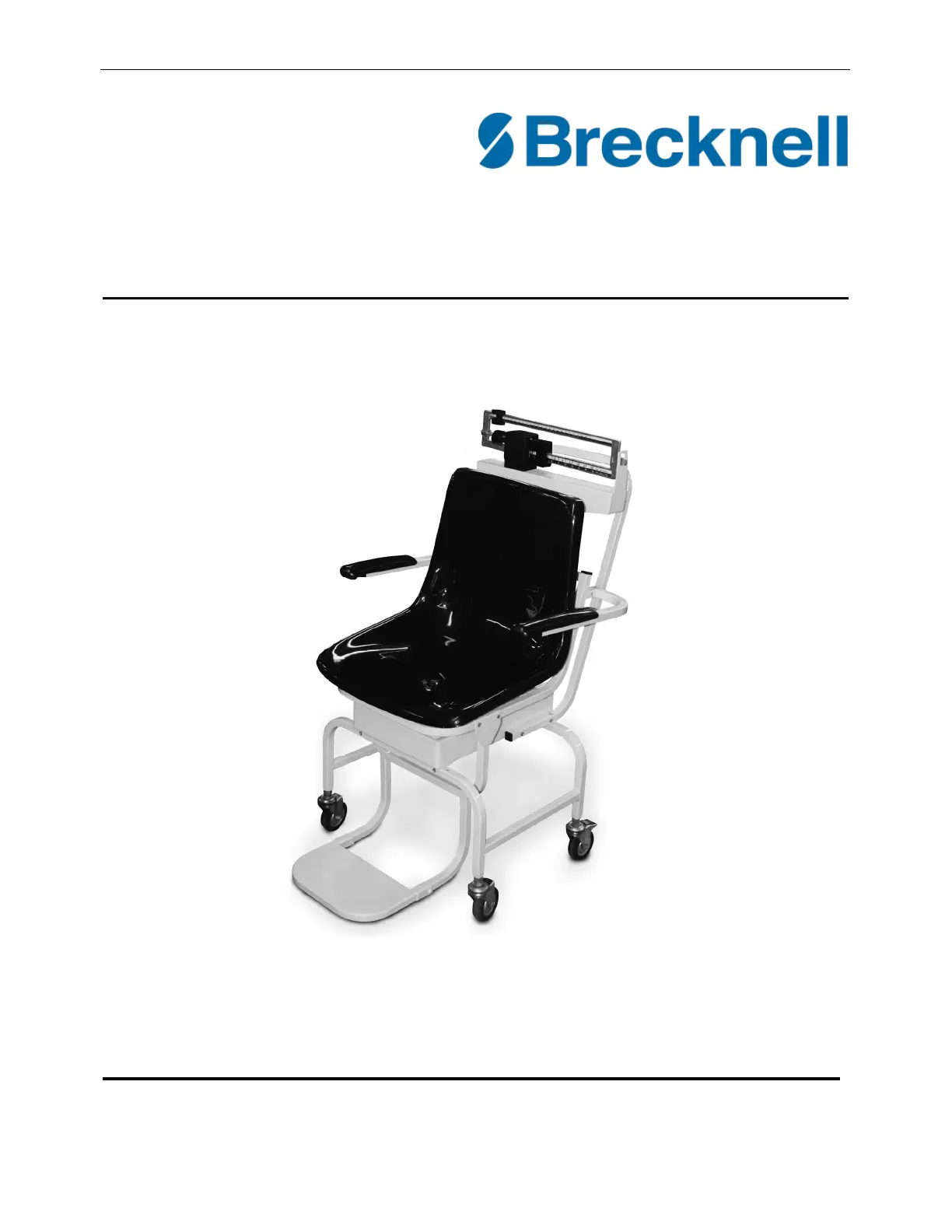

CS-200M Mechanical Chair Scale
Installation & Operation Instructions
The CS-200M Mechanical Chair Sale is designed for the mobile challenged who have a difficult time
standing on a conventional scale. It is ideal for use in clinics and nursing facilities. The scale is durable,
having a sturdy enameled steel body, a durable molded plastic seat, heavy-duty footrest, and heavy-duty
caster wheels for easy portability.
Figure 1. Mechanical Chair Scale
August 2011 Version 1.0
2
Installation Instructions
You will receive your Mechanical Chair Scale partially assembled. Those items that need additional
assembly are:
• Pillar and beam assembly to scale base
• Steelyard rod connection
• Transport handle onto scale base
• Seat and footrest installation
• Arm rest installation
Remove all components from the shipping crate and lay out in a convenient place.
Pillar and Beam Installation
The pillar and beam comes separate from the scale base and must be attached prior to use.
Figure 2. Pillar and Beam Components
Use the following steps to attach the pillar and beam to the scale base.
1. Have the scale sitting on the floor in an area that allows you to work freely.
2. Lock casters on the frame to eliminate the unit from rolling while assembling the scale.
Figure 3. Lock Casters to Keep From Rolling
B
eam
Pillar
Push down on latching assembly
to lock wheels and prevent scale
from rolling.
3
3. Remove the eight screws from the scale base using a phillips head screwdriver (as shown in the left
hand photo) and set screws aside in a safe place.
Figure 4. Remove Screws From Scale Base and Insert Pillar and Beam into Scale Base Assembly
Insert, the pillar and beam into the scale base assembly as shown in Figure 4 (right but don’t fasten
hand side photo).
Steelyard Rod Connection
The steelyard rod is located inside the pillar. Remove the wire tie(s) holding the steelyard rod
during shipment. Insert the pillar into the base. Once the pillar is inserted to the scale base, the
steelyard rod must be attached to the bottom of the scale. The two photos below show the hook of the
steelyard rod and an inside photo of the ring in the scale bottom. Latch the hook onto the D-shaped ring
shown in the right hand side picture.
Figure 5. Attach The Steelyard Rod To the Scale Base D-Ring
Fasten the eight screws once the pillar and beam is connected to the scale base and the steelyard rod is
hooked.
Figure 6. Insert and Tighten The Eight Screws
Steelyard rod (not
shown)
Steelyard rod
hook
