HEX70ED-Rx HEX70ED-Tx
HEX70ED-RX/TX
User Manual
HEX70ED USER MANUAL
02 www.bluestream.co.uk
Surge protection device
recommended
This product contains sensitive electri-
cal components that may be damaged
by electrical spikes, surges, electric
shock, lightning strikes, etc. Use of
surge protection systems is highly
recommended in order to protect and
extend the life of your equipment.
Safety And
Performance Notice
The transmission distances of HDMI
over UTP cables are measured using TE
CONNECTIVITY 1427071-6
EIA/TIA-568-B termination (T568B) of
cables is recommended for optimal
performance.
To minimize interference of the un-
shielded twisted pairs in the CAT5e/6
cable do not run the HDBaseT /
Cat5e/6/6a cabling with or in close par-
allel proximity to mains power cables.
Do not substitute or use any other
power supply other than the enclosed
unit, or a Blustream approved re-
placement.
Do not disassemble either the Trans-
mitter or Receiver units for any reason.
Doing so will void the manufacturer’s
warranty.
Introduction 03
Features 03
Panel Descriptions 03/04
EDID Control 04
Application Diagram 05
Specifications 06
Package Contents 06
Maintenance 06
Contents
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions care-
fully before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
HEX70ED USER MANUAL
03
contact support@blustream.co.uk / support@blustream.com.au

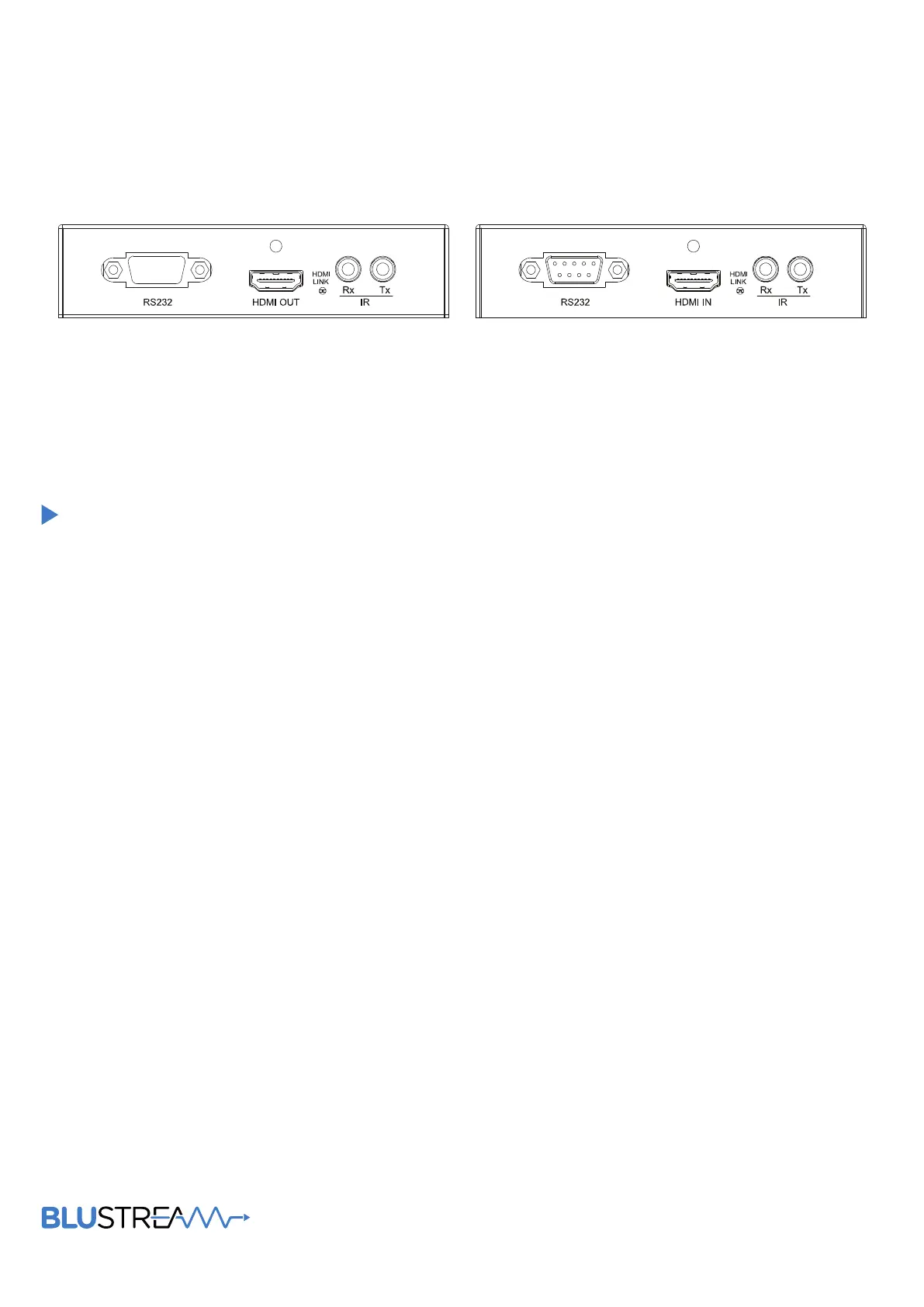

Panel Description HEX70ED-RX
HEX70ED-Rx Receiver
1 1 2 3 4 5
2 3 4 5
1 RS232 connector
2 HDMI output
3 HDMI link indicator
4 IR RX jack (To IR sensor)
5 IR TX jack (To IR emitter)
1 Standard/Upgrade mode switch
2 Signal Link indicator
3 HDBT input
4 Power status indicator
5 DC 12V screw type connector
Our HEX70ED-KIT 4K HDBaseT™ extender set oers market leading features
and outstanding value. The product supports HDMI, RS-232, Bi-directional IR
and Bi-directional PoH (PoE) up to lengths of 70m.
Introduction
FEATURES:
• Extends HDMI up to distances of 70m over single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4,
4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including
VGA-WUXGA and 480i-4K
• Supports 3D signal display
• Supports all known HDMI audio formats including Dolby
TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master
Audio transmission
• Supports bi-directional RS-232 pass through
• Supports bi-directional IR from all input and output
locations
• Supplied with Blustream IR receiver and emitter
• Advanced EDID management
• HDCP compliant
• 1. Standard/Upgrade mode switch*
* Switch is associated with the RS232 connection of the unit. When in Standard mode the RS232 port is used for the intended distribution of an RS232 signal.
When in Upgrade mode the RS232 connection is used to upgrade firmware on the unit.
Note: The POH function is designed for powering compatible transmitter or receiver units from Blustream only.
