DA44AU
User Manual
RevA3_User_Manual_DA44AU
DA44AU USER MANUAL
02 www.blustream.com.au | www.blustream.co.uk
Contents
Surge protection device
recommended.
This product contains sensitive
electrical components that may be
damaged by electrical spikes, surges,
electric shock, lightning strikes, etc. Use
of surge protection systems is highly
recommended in order to protect and
extend the life of your equipment.
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions carefully
before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
Introduction 03
Features 03

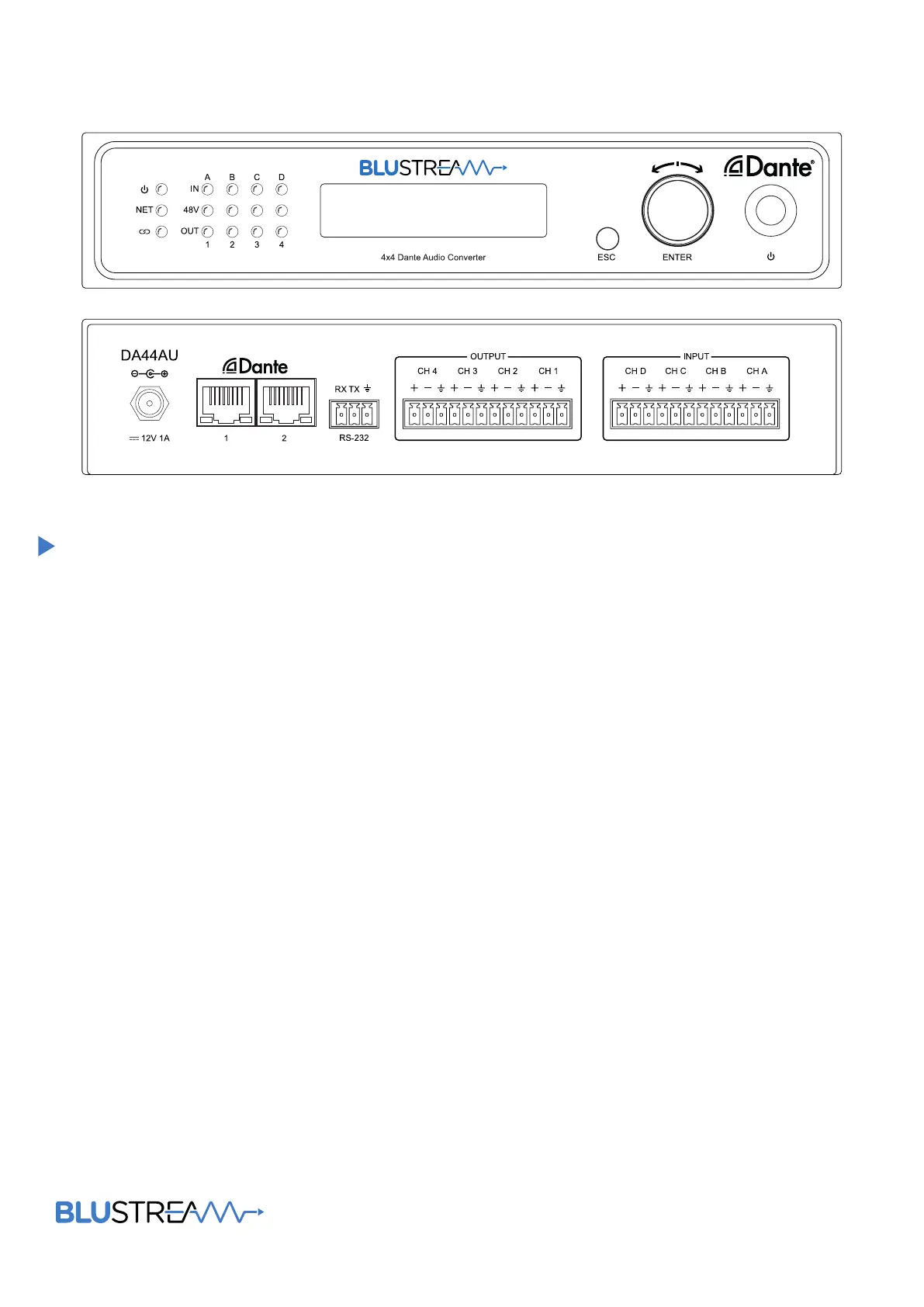

Panel Descriptions 04
Audio Input Settings 05
Dante® Controller 05 - 06
Advanced Dante® Settings 06
Product Schematic 07
RS-232 Control Port 08
Specifications 09
Packaging Contents 09
Acknowledgements 09
Installer Notes 10 - 11
DA44AU USER MANUAL
03contact support@blustream.com.au support@blustream.co.uk|
Our DA44AU is a four input / four output Dante® digital audio converter. The
DA44AU allows any non-Dante® audio source such as mixing consoles, amplifiers,
computers and Blustream Matrix products or distribution products to be
connected as an audio source within a Dante® network, as well as converting
a Dante® signal back to an analogue audio signal. The DA44AU supports both
balanced and unbalanced audio as well as microphone line level inputs inc. 48V
phantom power. The DA44AU supports AES67 RTP audio transport.
Introduction
• Features 4x analogue audio inputs that are converted to a Dante® compatible signal
• Features conversion of Dante® signal to 4 x analogue audio outputs
• Analogue audio inputs support both balanced and unbalanced audio + MIC line level signals
• MIC line level supports 48V Phantom power
• Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
• Independent input gain / output volume settings per channel.
• Supports AES67 RTP audio transport
FEATURES:
RevA3_User_Manual_DA44AU
