Seite 1/30

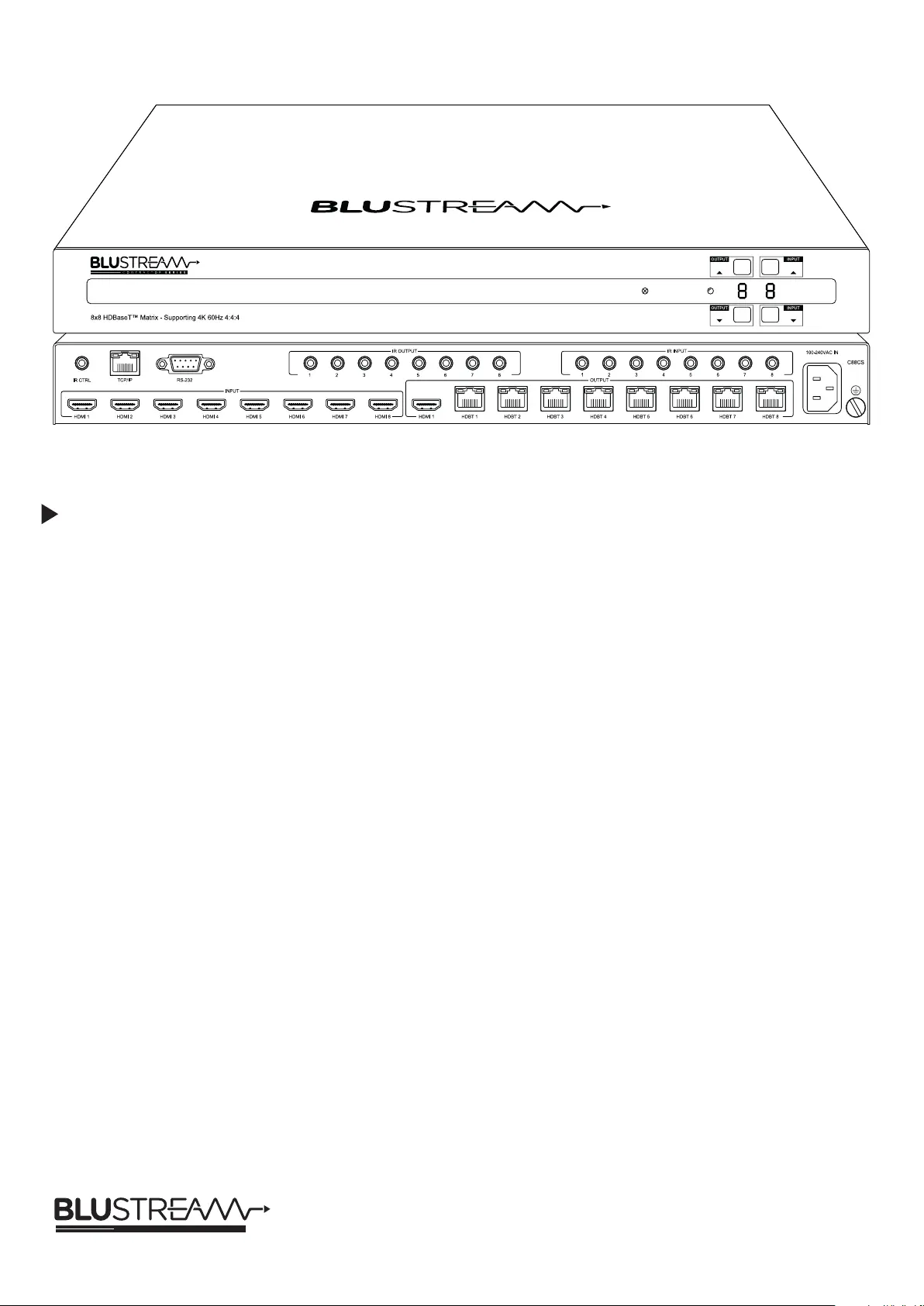

C66CS/C88CS
User Manual
RevA1_C66/88CS_User_Manual_210128
C66CS/C88CS USER MANUAL
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk 02
Surge Protection Device
Recommended
This product contains sensitive
electrical components that may be
damaged by electrical spikes, surges,
electric shock, lightning strikes, etc.
Use of surge protection systems is
highly recommended in order to
protect and extend the life of your
equipment.
Contents
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions care-
fully before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
Introduction 03
Features 03
Front Panel Description 04
Rear Panel Description 04
CEC Control 04
EDID Management & Smart Scaling Functionality 05
Front Panel Control 06
Infrared (IR) Control 06
Terminating CAT Cables for use with HDBT 07
Understanding the HDBaseT⢠Status LEDâs 07
Web GUI Control 08-15
Remote Control Description 16
IR Commands 16-17
Specifications 18
Package Contents 18
Maintenance 18
RS-232 Config & Telnet Commands 19-21
Web-GUI Firmware Update 22-23
Main (MCU) Firmware Update 24-25
Certifications 26
Schematic (C88CS) 27
Notes 28-29
C66CS/C88CS USER MANUAL
Contact: support@blustream.com.au | | support@blustream-us.com support@blustream.co.uk 03
Our Contractor 8x8 HDBaseT⢠CSC Matrix oîers unprecedented performance and
value for the custom installation market. The C66CS and C88CS are 4K 60Hz 4:4:4
HDCP 2.2 Matrix units deliveringîHDMI, bi-directional IR and PoC up to lengths of
70m (at 1080p) over a single CAT cable.
These Matrix products also provide advanced features including simultaneous
HDBaseT⢠/ HDMI on output 1 and a web browser interface module for control
and configuration of the unit.
Introduction
FEATURES:
⢠Advanced HDBaseT⢠technology oîering uncompressed video and audio with zero latency
⢠Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
⢠Features 6 x (C66CS) or 8 x (C88CS) HDMI inputs which can be independently routed to 6 x (C66CS) or 8 x (C88CS)
HDBaseT⢠outputs
⢠Output 1 features simultaneous HDMI and HDBaseT⢠output
⢠Video down-conversion on HDBaseT⢠outputs allowing a display only capable of supporting lower video
resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K
UHD resolution on remaining video outputs
⢠Supports 4K 60Hz 4:4:4 UHD video up to 40m
⢠Extends HDMI up to a distance of 70m over single CAT cable
⢠Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
⢠Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD
Master Audio transmission
⢠Web interface module for control and configuration of the Matrix
⢠Supports bi-directional IR on all HDBaseT⢠outputs
⢠Control via front panel, IR, RS-232, TCP/IP and free iOS / Android Apps
⢠Supports PoC (Power over Cable) to power compatible HDBaseT⢠Receiversî
⢠Supplied with Blustream IR Receivers and Emitters
⢠3rd party drivers available for major control systems
⢠1U Design for 19â rack mount integrationî- mounting kit included
⢠Advanced EDID management
⢠HDCP 2.2 compliant
* CSC feature compatible with RX70CS receivers only (sold separately). The HDMI ARC and Optical Audio Return
functionality of the RX70CS HDBaseT Receivers is not compatible with the C66CS or C88CS Matrix products.â˘
