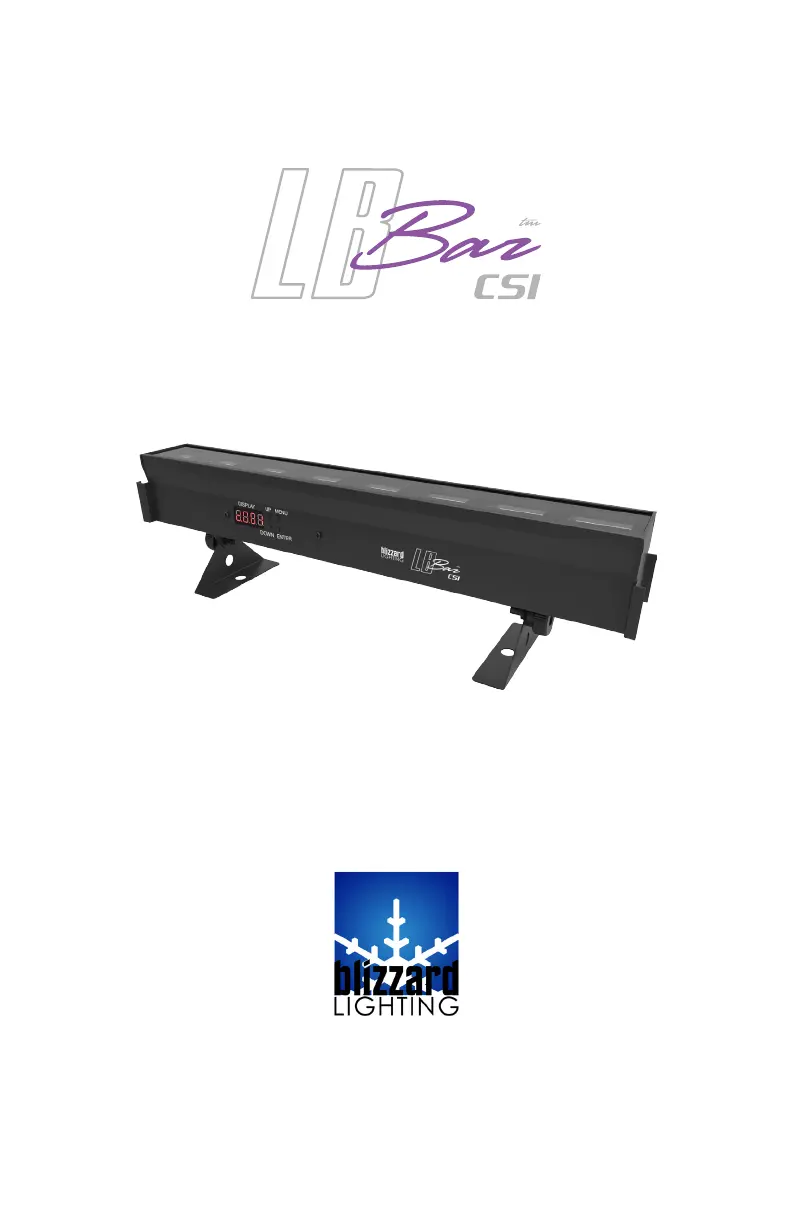

Seite 1/16
Blizzard Lighting, LLC
www.blizzardlighting.com
Waukesha, WI USA
Copyright (c) 2017
Page 2
LB™ Bar CSI User Manual Rev. A © 2017 Blizzard Lighting, LLC
TABLE OF CONTENTS
LB Barâ„¢ CSI 1
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions 4
2. Meet The LBâ„¢ Bar CSI 3
Features 5
DMX Quick Reference 5
The LBâ„¢ Bar CSI Pin-up Picture 6
3. Setup 7
Fuse Replacement 7
Connecting Other LBâ„¢ Bar CSI Fixtures 7
Data/DMX Cables 7
Cable Connectors 8
Take It To The Next Level: Setting up DMX Control 8
Fixture Linking (Master/Slave Mode) 9
Mounting/Rigging 9
4. Operating Adjustments 10
Navigating The Control Panel 10
Control Panel Menu Structure 11
Dimming Curves 11
DMX Mode 11
Select Channel Mode & Starting DMX Address 12
Master/Slave Mode 12
Manual Output Level Settings 12
 StrobeEects      12
Dimming Curve Settings 12
DMX Channel Values In-Depth 13
Troubleshooting 13
5. Appendix 14
A Quick DMX Lesson 14
Keeping Your LBâ„¢ Bar CSI As Good As New 14
Returns (Gasp!) 14
Shipping Issues 14
Tech Specs 15
Dimensional Drawings 15
Page 3
LB™ Bar CSI User Manual Rev. A © 2017 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• 1 x LB™ Bar CSI LED Fixture
• 1 x Power Cord
• This User Manual
Getting It Out Of The Box
Congratulationsaspiringcrimeghterand/orpsychedelicmusicacionadofor
purchasing the LB™ Bar CSI! Now that you’ve got your LB™ Bar CSI (or hopefully,
more!), you should carefully unpack the box and check the contents to ensure that
all parts are present and in good condition. If anything looks as if it has been dam-
aged in transit, notify the shipper immediately and keep the packing material for
inspection.Again,pleasesavethecartonandallpackingmaterials.Ifaxturemust
bereturnedtothefactory,itisimportantthatthexturebereturnedintheoriginal
factory box and packing.
Powering Up!
Allxturesmustbepowereddirectlyoaswitchedcircuitandcannot be run o
a rheostat (variable resistor) or dimmer circuit, even if the rheostat or
dimmer channel is used solely for a 0% to 100% switch.
AC Voltage Switch -Notallxtureshaveavoltageselectswitch,sopleaseverifythat
thextureyoureceiveissuitableforyourlocalpowersupply.Seethelabelonthe
xtureorrefertothexture’sspecicationschartformoreinformation.Axture’s
listed current rating is its average current draw under normal conditions. Check the
xtureordevicecarefullytomakesurethatifavoltageselectionswitchexiststhatit
is set to the correct line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the
line voltage applied. Damage to your îš¿xture may result if the line voltage
applied does not match the voltage indicated on the voltage selector switch.
All îš¿xtures must be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something happens goes wrong, please visit www.blizzardlighting.com/
support and open a support ticket. We’ll be happy to help, honest.
Disclaimer:Theinformationandspecicationscontainedinthisdocumentare
subject to change without notice. Blizzard Lightingâ„¢ assumes no responsibility or
liability for any errors or omissions that may appear in this user manual. Blizzard
Lightingâ„¢ reserves the right to update the existing document or to create a new
document to correct any errors or omissions at any time. You can download the
latest version of this document from www.blizzardlighting.com.
Author: Date: Last Edited: Date:
J. Thomas 10/26/2017 J. Thomas 10/26/2017
