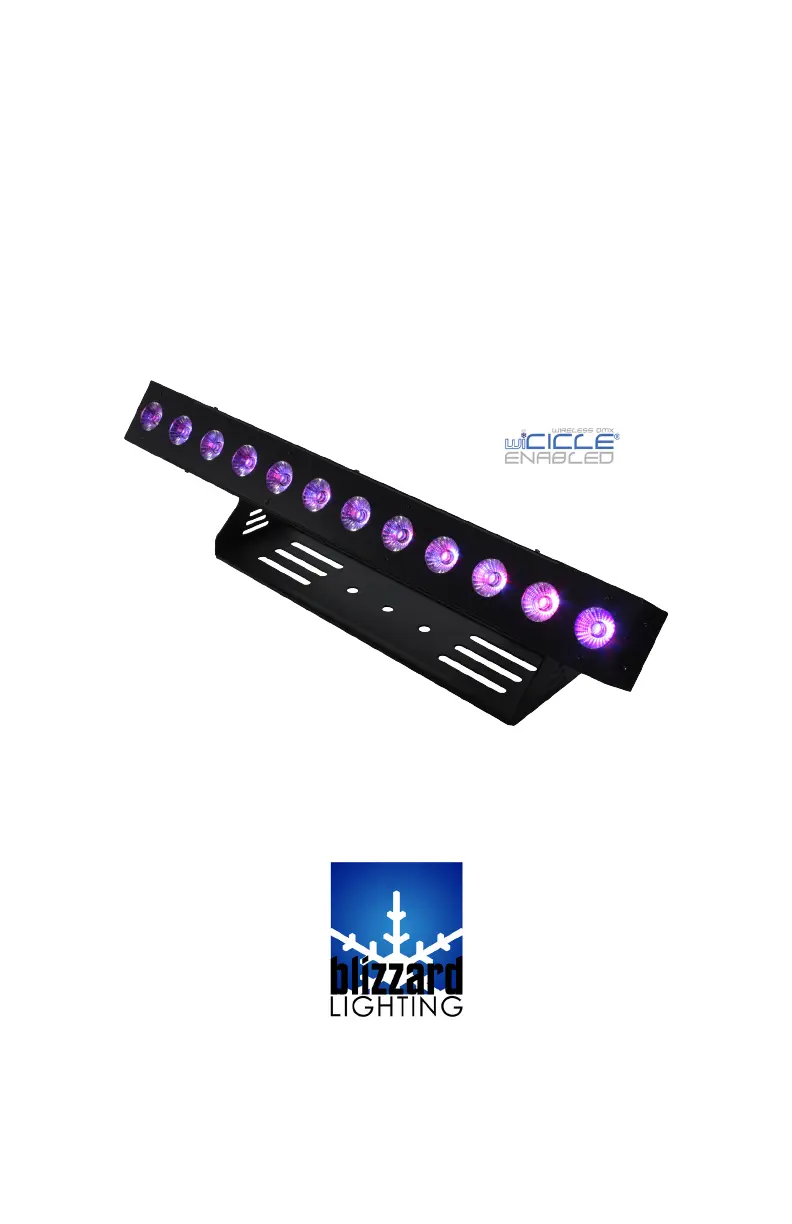

Seite 1/20
Blizzard Lighting, LLC
www.blizzardlighting.com
Waukesha, WI USA
Copyright (c) 2014
exa
TM
hotstik
Page 2
HotStik™ EXA Manual Rev. A © 2014 Blizzard Lighting, LLC
TABLE OF CONTENTS
HotStikâ„¢ EXA 1
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4
2. Meet The HotStikâ„¢ EXA 5
Features 5
DMX Quick Reference 5
The HotStikâ„¢ EXA Pin-up Picture 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch Of HotStikâ„¢ EXA Fixtures 7
Data/DMX Cables 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh? 8
Take It To The Next Level: Setting up DMX Control 8
Fixture Linking (Master/Slave Mode) 9
Mounting/Rigging 9
 UsingthisxturewiththewiCICLE®WirelessDMXSystem 10
4. Operating Adjustments 12
Navigating The Control Panel 12
Control Panel Menu Structure 13
DMX Mode 14
Master/Slave Mode 14
Sound Active Mode 14
Standalone (Program) Mode 14
Manual Color Adjustment 14
DMX Channel Values In-Depth 15
Troubleshooting 16
5. Appendix 17
A Quick DMX Lesson 17
Keeping Your HotStikâ„¢ EXA As Good As New 18
Returns (Gasp!) 18
Shipping Issues 18
Dimensional Drawings 18
Tech Specs 19
Page 3
HotStik™ EXA Manual Rev. A © 2014 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• 1 x HotStik™ EXA Professional LED Fixture
• This Lovely User Manual
Getting It Out Of The Box
Congratulationsonpurchasingonewaycool,wayexible,wayoriginalLEDstriplight!
Now that you’ve got your HotStik™ EXA (or hopefully, ), you should carefully EXA’s!
unpack the box and check the contents to ensure that all parts are present and in good
condition. If anything looks as if it has been damaged in transit, notify the shipper im-
mediately and keep the packing material for inspection. Again, please save the carton
andallpackingmaterials.Ifaxturemustbereturnedtothefactory,itisimportant
thatthexturebereturnedintheoriginalfactoryboxandpacking.
Powering Up!
Allxturesmustbepowereddirectlyoffaswitchedcircuitandcannot be run off a
rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch.
AC Voltage Switch -Notallxtureshaveavoltageselectswitch,sopleaseverifythat
thextureyoureceiveissuitableforyourlocalpowersupply.Seethelabelonthe
xtureorrefertothexture’sspecicationschartformoreinformation.Axture’s
listed current rating is its average current draw under normal conditions. Check the
xtureordevicecarefullytomakesurethatifavoltageselectionswitchexiststhatitis
set to the correct line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line
voltage applied. Damage to your îš¿xture may result if the line voltage applied
does not match the voltage indicated on the voltage selector switch. All
îš¿xtures must be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something is wrong, just give us a call or send an email. We’ll be happy to
help, honest.
Blizzard Lighting
N16 W23390 Stoneridge Dr. Ste E
Waukesha, WI 53188 USA
www.blizzardlighting.com
414-395-8365
Email: support@blizzardlighting.com
Disclaimer:Theinformationandspecicationscontainedinthisdocumentaresubject
to change without notice. Blizzard Lightingâ„¢ assumes no responsibility or liability
for any errors or omissions that may appear in this user manual. Blizzard Lightingâ„¢
reserves the right to update the existing document or to create a new document to
correct any errors or omissions at any time. You can download the latest version of this
document from www.blizzardlighting.com.
Author: Date: Last Edited: Date:
J. Thomas 6/9/2014 J. Thomas 6/9/2014
