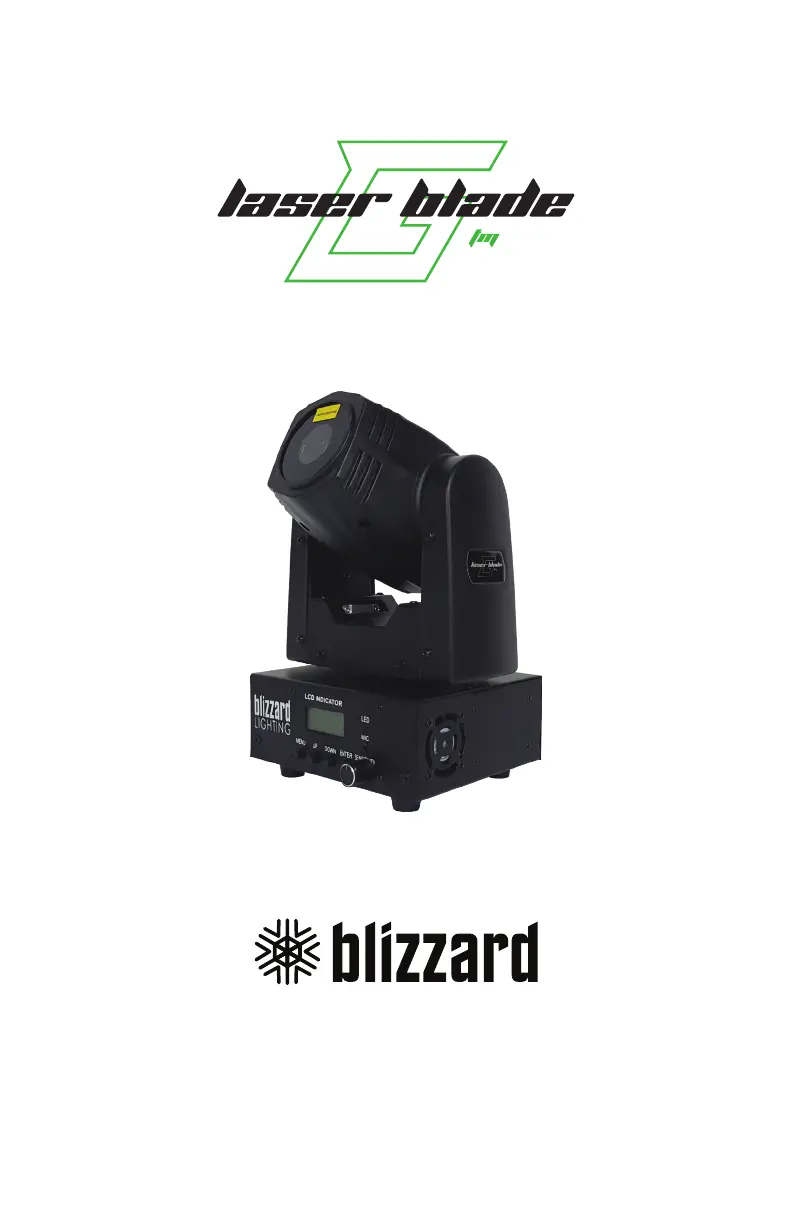

Seite 1/16
Blizzard Lighting, LLC
http://www.blizzardpro.com
Waukesha, WI USA
Copyright (c) 2020
Page 2
Laser Blade™ G Manual - Rev. B © 2020 Blizzard Lighting, LLC
TABLE OF CONTENTS
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of the Box 3
Powering Up! 3
Getting A Hold Of Us 3
Laser Safety Instructions 4
2. Meet the Laser Bladeâ„¢ G 5
Additional Features 5
DMX Quick Reference 5
Laser Bladeâ„¢ G Pin-Up Picture 6
The Rear Connections 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch of Laser Bladeâ„¢ G Fixtures 7
Data/DMX Cabling 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh?!? 8
Take It To The Next Level: Setting Up DMX Control 8
Fixture Linking (M/S Mode) 9
Mounting & Rigging 9
4. Operating Adjustments 10
The Control Panel 10
Control Panel Menu Structure 11
DMX Mode 11
Set the Starting DMX Address 11
Run Mode 11
Slave Mode 11
Mirror Symmetry Mode 11
Running Mode Settings 11
Graphic Mode Settings 11
Speed Settings 11
5. Appendix 14
Keeping Your Laser Bladeâ„¢ G As Good As New 14
Returns (Gasp!) 14
Shipping Issues 14
Tech Specs! 15
Page 3
Laser Blade™ G Manual - Rev. B © 2020 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• 1 x Laser Blade™ G
• 1 x Ever-So-Handy Power Cord
• This Lovely User Manual
Getting It Out Of the Box
Congratulations on purchasing Laser Bladeâ„¢ G, the totally stellar green laser
light xture. Now that you’ve got Laser Blade™ G, you should carefully unpack
the box and check the contents to ensure that all parts are present and in
good condition. If anything looks as if it has been damaged in transit, notify
the shipper immediately and keep the packing material for inspection. Again,
please save the carton and all packing materials. If a îš¿xture must be returned
to the factory, it is important that the îš¿xture be returned in the original factory
box and packing.
Powering Up!
All xtures must be powered directly o a switched circuit and cannot be run
o a rheostat (variable resistor) or dimmer circuit, even if the rheostat
or dimmer channel is used solely for a 0% to 100% switch.
Warning! All îš¿xtures must be connected to circuits with a suitable
Ground (Earthing).
Getting A Hold Of Us
If something happens goes wrong, please visit www.blizzardpro.com/
support and open a support ticket. We’ll be happy to help, honest.
Disclaimer: The information and speciîš¿cations contained in this document are
subject to change without notice. Blizzard Lightingâ„¢ assumes no responsibility
or liability for any errors or omissions that may appear in this user manual.
Blizzard Lightingâ„¢ reserves the right to update the existing document or to
create a new document to correct any errors or omissions at any time. You can
download the latest version of this document from www.blizzardpro.com.
Author: Date: Last Edited: Date:
J. Thomas 11/16/2015 J. Thomas 11/4/2020
