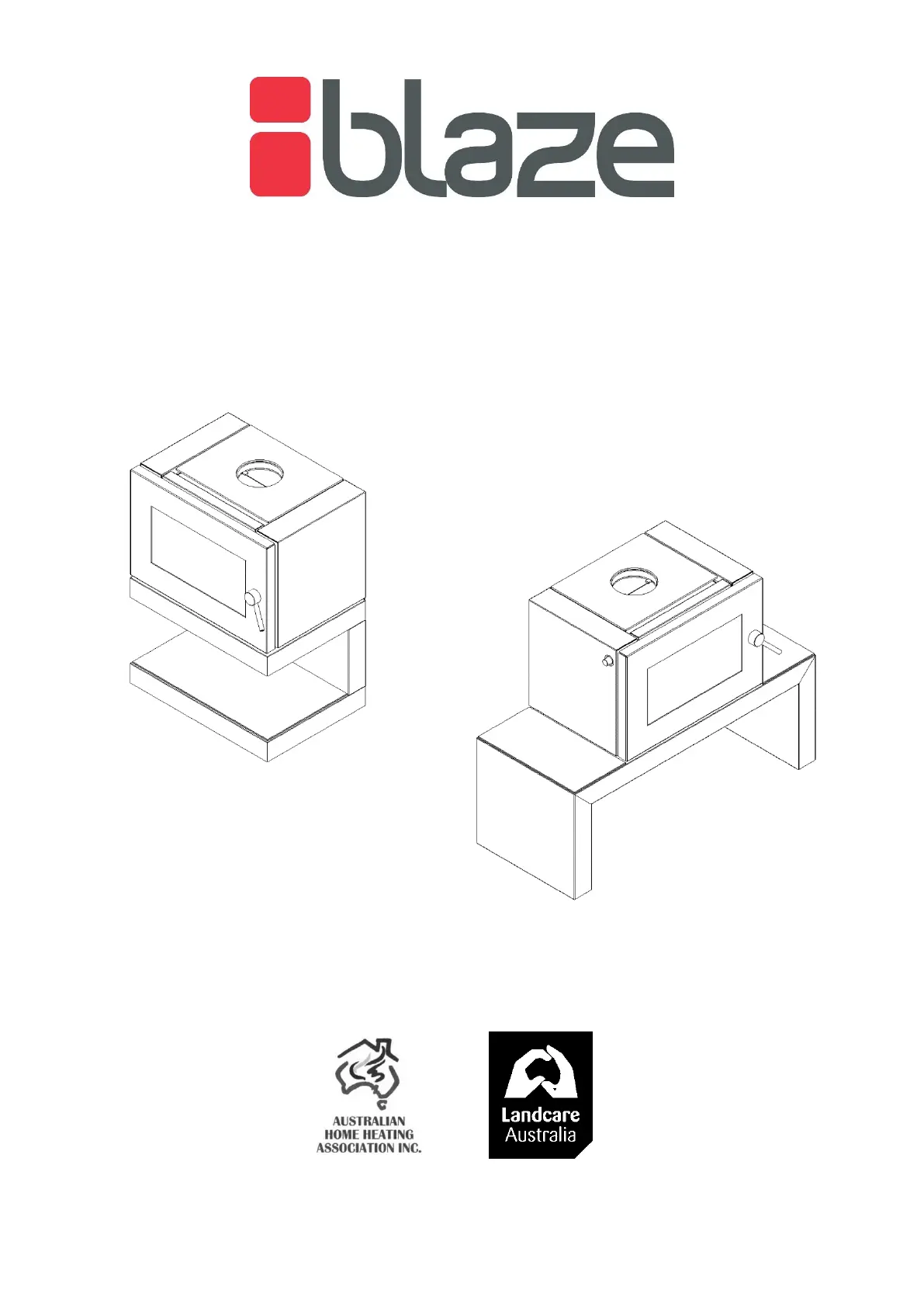

Seite 1/12
Operang Instrucons
Contemporary and Stylish
Keep instrucons for future reference
Glen Dimplex Australia proudly supports the acvies of Landcare Australia through its membership of the AHHA
Revision C
B605
B905
B600
B900
2
USER INSTRUCTIONS
1.0
INTRODUCTION ……………………………………………
2
2.0
USING APPLIANCE FOR FIRST TIME ………………
3
3.0
RECOMMENDED FUELS ………………………………..
3
4.0
LIGHTING THE FIRE ………………………………………
3
5.0
RUNNING THE APPLIANCE …………………………..
4
6.0
BURNING TIPS …………………………………………….
4
7.0
ASH REMOVAL …………………………………………….
5
8.0
FLUE/CHIMNEY FIRE …………………………………….
5
9.0
CLEANING PAINTWORK & GLASS ………………….
5
10.0
CLEANING THE FLUE …………………………………….
5
11.0
TROUBLESHOOTING TIPS …………………………….
6
MAINTENANCE & SERVICING
1.0
REPLACEMENT OF FIREBRICKS ……………………..
6
2.0
REPLACEMENT OF BAFFLE ……………………………
7
3.0
REMOVING THE DOOR …………………………………
7
4.0
ADJUSTING THE DOOR …………………………………
7
5.0
FITTING A NEW DOOR GLASS ……………………….
8
6.0
FITTING A NEW DOOR SEAL ………………………….
8
7.0
DOOR HANDLE ADJUSTMENT ……………………….
8
8.0
CHANGING FAN CONTROLLER FREQUENCY …..
9
9.0
REPLACEMENT SPARE PARTS LIST …………………
9
Before use of this appliance please read these instrucons
fully.
WARNING: ANY MODIFICATION OF THE APPLIANCE THAT
HAS NOT BEEN APPROVED IN WRITING BY THE TESTING
AUTHORITY IS CONSIDERED AS BREACHING AS/NZS 4013.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR
AEROSOLS TO START OR REKINDLE THE FIRE.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR
AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHEN IT IS
OPERATING.
WARNING: DO NOT STORE FUEL WITHIN HEATER
INSTALLATION CLEARANCES.
WARNING: WHEN OPERATING THIS APPLIANCE AS AN
OPEN FIRE USE A FIRE SCREEN.
WARNING: OPEN AIR CONTROL (AND DAMPER WHEN
FITTED) BEFORE OPENING FIRING DOOR.
WARNING: DO NOT BURN WOOD THAT IS PAINTED; OR IS
COATED WITH PLASTIC; OR HAS BEEN TREATED WITH ANY
CHEMICAL.
CAUTION: THIS APPLIANCE SHOULD NOT BE OPERATED WITH
A CRACKED GLASS.
CAUTION: THIS APPLIANCE SHOULD BE MAINTAINED AND
OPERATED AT ALL TIMES IN ACCORDANCE WITH THESE
INSTRUCTIONS.
The appliance or ue system should not be modied in any
way without the wrien approval of the manufacturer.
Extractor fans or cooker hoods must not be placed in the
same room or space as this can cause appliance to emit
smoke into the room.
Our cleanburn technolog promotes greater eciencyy
USER INSTRUCTIONS
TABLE OF CONTENTS
3
Air Controls
The Blaze /B900 and B605/B905 range wood heaters B600
feature a single air control system. It is designed to introduce
oxygen into the base of the re controlling the rate of
combuson of the wood as well as oxygen being drawn into
the upper rebox where combuson of the gases occurs.
The air control is operated by sliding the stainless steel
cylindrical handle located on the top le side of the heater.
Pulled all the way out oers maximum burn rate, while
pushed all the way in oers minimum burn rate.
Secondary air holes in the rear of the rebox provide
addional oxygen for a more complete combuson of the
gases released from the burning wood.
Door Handle
Warning: the door handle may get hot if appliance has been
le in High burn seng for an extended period of me. A
stainless steel handle extension is supplied with the heater
that can be inserted in the end of the door handle when
opening and closing if too hot to handle.
Fan
The fan can be used to spread heat around the room quicker,
as well as distribute heat into other rooms. It does not have to
be on if not required.
Plug the lead from the rear of the heater into a power-point.
B600 & B900 models have an override switch on the rear
panel next to where the power lead exists the heater base.
This must be switched on for the fan to run.
A remote control supplied with the heater is used to turn the
fan on and determine the chosen speed.
If the radio frequency used by the remote control interferes
with other frequencies in the home such as wireless internet
or child monitor refer to “11. Change Fan Controller
Frequency” in the Maintenance & Servicing secon for details
on changing the frequency.
First few mes the appliance is lit, it will give o some
odorous fumes. This is caused by the paint curing.
Do not touch the paint work while it is curing otherwise
it can leave a permanent mark on the appliance.
Once the paint has cured it will not re-occur.
Keep the room well venlated unl these fumes have
cleared.
Burn only seasoned hardwood timber with a moisture
content of less than 20%.
Newly cut wood should be allowed to dry/season for 12
to 18 months before use.
Wood should be stored in an environment protected
from the weather to minimise any potenal moisture
content.
For best results, wood should not exceed 270mm in
length and 150mm diameter. Any larger and appliance
will not operate at its opmum. It is beer to burn
several smaller pieces of wood than one large single
piece.
Poor quality mber:
o
Causes low combuson eciency
o
Produces poor emissions (smokey)
o
Results in addional buildup of creosote (soot) in
the ue which will then require regular cleaning
and may result in a ue re.
Do not burn painted, impregnated/treated wood,
manufactured board products or pallet wood.
Place relighters or paper and dry kindling wood in the
base of the rebox.
Light the paper or relighters.
Open the air control located on the top le corner of
the appliance by pulling out from the appliance.
If necessary, leave the door slightly open as the re
establishes and the glass warms to avoid the build-up of
condensaon.
2. USING APPLIANCE FOR FIRST TIME
3. RECOMMENDED FUELS
4. LIGHTING THE FIRE
