Seite 1/4

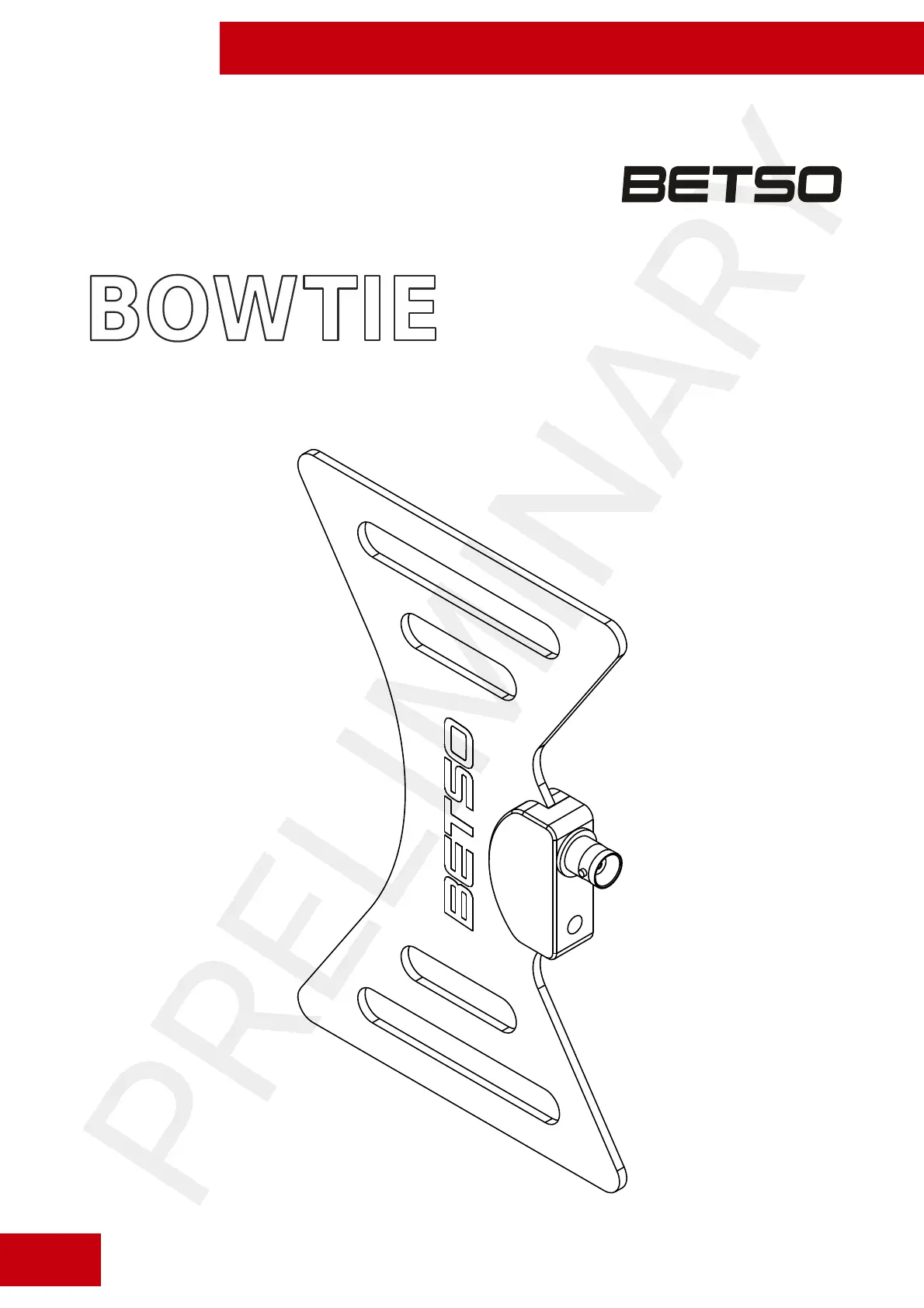

User manual
BETSO BOWTIE
Wideband omnidirectional antenna designed for use on a sound bag
1© Copyright BETSO ELECTRONICS Ltd.
User manual
BETSO BOWTIE
Contents
1. Recommended accessories...................................................................................... 3
2. Safety instructions................................................................................................. 3
3. Technical specifications.......................................................................................... 3
4. EC Declaration of conformity..................................................................................4
Used symbols
Indicates text that has only informative character. If you overlook this
information, it can't result in product damage by it's mishandling.
Indicates text that has important instruction character. If you overlook this
information, it may result in product damage not covered by warranty.
© Copyright BETSO ELECTRONICS Ltd. 2
User manual
BETSO BOWTIE
Thank you that you have purchased the product BETSO!
Please pay sufficient attention to the following user manual of your new product
BETSO. Following these instructions, you will avoid the possible damages of your new
device and at the same time, they will be presented to you all the available features that
allow you to take advantage of the potential of the product.
For the latest informations about our products BETSO please contact your local
distributor or visit our website http://www.betso.eu.
1. Recommended accessories
For the latest informations about our products BETSO please contact your local
distributor or visit our website http://www.betso.eu.
2. Safety instructions
To clean the device, use a dampened piece of cloth. Never use any chemical
solvents!
3. Technical specifications
Antenna type Passive
Frequency range 470 MHz to 700 MHz
Inbuilt filter low pass 700 MHz
Antenna structure gain 1.8 dBi (@ 600 MHz)
Antenna directivity as a dipole
Antenna polarization Linear
Antenna VSWR Excellent < 1.2 (@ 600 MHz)
Mechanic construction CNC milled, anodized aluminium alloy and glass-
reinforced epoxy laminate
Mounting 1/4" thread
Dimensions (h x w x d) 170 x 111 x 14 mm (6.7" x 4.4" x 0.55")
Weight approx. 76 g (0.2 lb.) without holder and cable
3© Copyright BETSO ELECTRONICS Ltd.
