BeamZ S700-LS 160.423 Bedienungsanleitung

BeamZ Beleuchtung S700-LS 160.423

Lesen Sie kostenlos die 📖 deutsche Bedienungsanleitung für BeamZ S700-LS 160.423 (18 Seiten) in der Kategorie Beleuchtung. Dieser Bedienungsanleitung war für 13 Personen hilfreich und wurde von 2 Benutzern mit durchschnittlich 4.5 Sternen bewertet

Download PDF

Seite 1/18

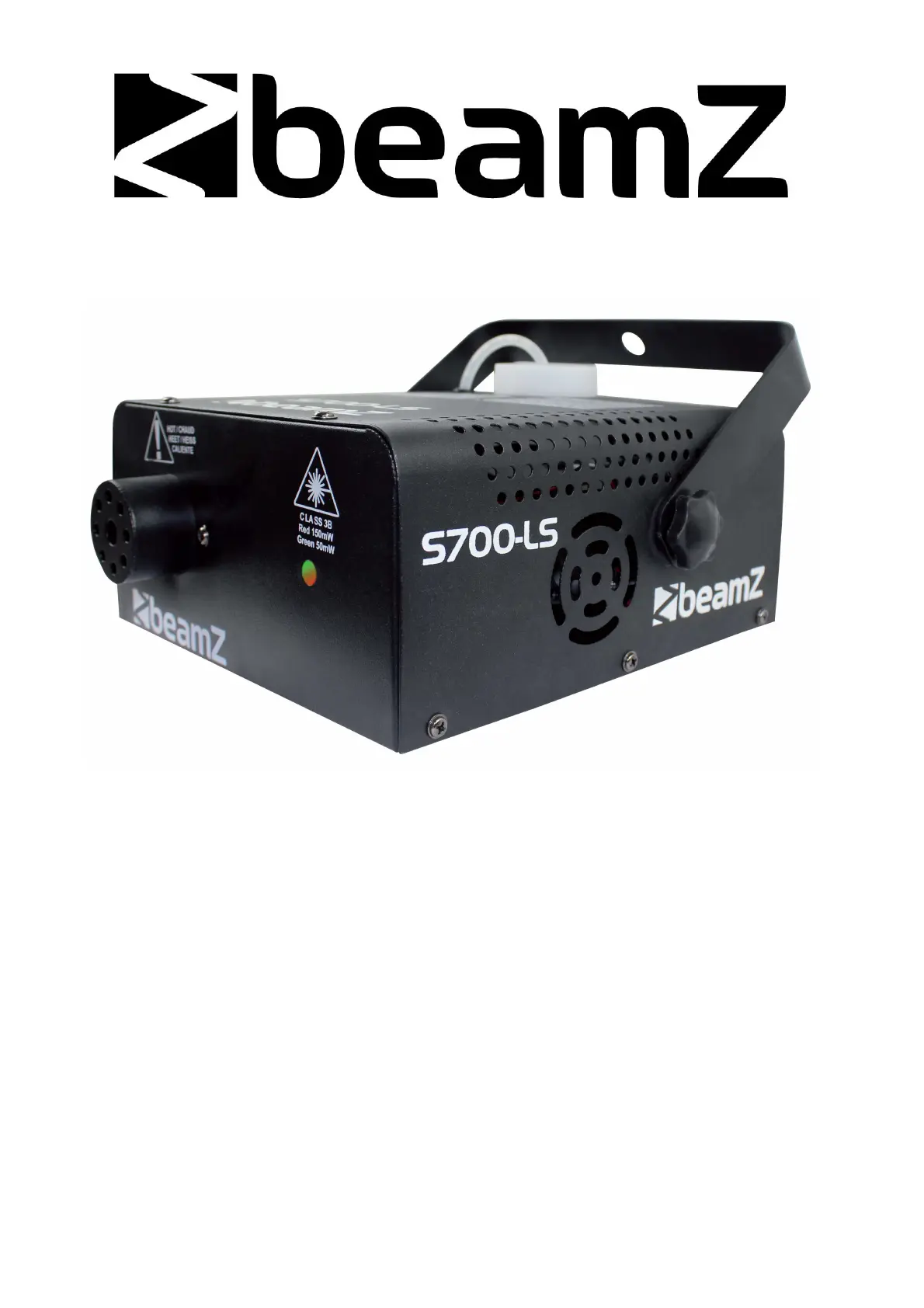

S700-LS

160.423

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

BEDIENUNGSANLEITUNG

- 2 -

Warning:

- The smokemachine must be placed at least 100 cm away from inflammable materials such as curtains,

books, etc. Make sure that the housing cannot be touched by accident.

- For indoor use only.

- During installation, nobody should stand beneath the mounting area.

- Prior to the first use, have the unit checked by a qualified person.

- The unit contains voltage carrying parts. DO NOT open the smokemachine

- Never plug or unplug the unit with wet hands.

- If the plug and/or mains lead are damaged, they need to be repaired by a qualified technician.

- If the unit is damaged to an extent that you can see internal parts, do not plug the unit into a mains outlet. It

needs to be repaired by a qualified technician.

- Only connect this unit to an earthed mains outlet of 220-240Vac/50Hz .

- Always unplug the unit during a thunderstorm or when it is not in use.

- If the unit has not been used for a longer period of time, condensation can occur inside the housing. Please

let the unit reach room temperature prior to use.

- When you unplug the unit from the mains always pull the plug, never the lead.

- In order to prevent dropping of the unit, a safety fastening needs to be installed. This can be a solid chain,

a steel cable, etc. which has to be fastened separately from the mounting bracket.

- The supplied bracket is the main fixing and must be used to solidly mount the light effect.

- In order to avoid accidents in public premises, the local legal requirements and safety regulations/warnings

must be fulfilled.

- Keep out of the reach of children.

Safety

Plug the smoke machine only in an earthed mains outlet or extension cord! ATTENTION: the powercord can only

be replaced by an original replacement, supplied by Tronios.

Be careful when filling the fluid tank. First of all, unplug the mains lead! Then unscrew the cap on the tank and fill it

by means of a funnel.

Only use the original Beamz smoke fluid which is environmental friendly and, if used correctly, leaves no residues.

Do not obstruct the openings on top of the case to guarantee a good ventilation. The heating element of the smoke

machine generates heat which needs to be removed. Don’t put any objects on the smoke machine.

Installation and Use

Unpack the fog machine. Do not connect yet the net cable. Fill the fluid tank by means of a funnel. Plug the unit

into a mains outlet. Thus the heating element is automatically switched on. Depending on the room temperature, it

takes about 5 to 10 minutes until the working temperature is reached. Then the thermostat is clicking and the LED

on the manual control lights up.

Push the switch once and the smoke machine will produce a nice thick fog. Once the smoke machine has reached

its working temperature (the LED is lit) the smoke machine can produce continuously fog during about 2 minutes.

After this period of time, the fog generator is cooled so much down that the thermostat switches off. Wait a few

minutes until the working temperature is reached again. It is recommended to produce smoke with small pauses in

between so that the temperature is maintained and the thermostat doesn’t switch off.

Location

Select a location where it is easy to fill the tank. It is also possible to hang the unit by means of the supplied holder

and fixing screws.

Switching the unit off

Switch the unit off by unplugging it from the mains. Otherwise the 500W heating element will draw unnecessarily

current.

- 3 -

FEATURES:

S700-LS Smoke Machine + Laser R/G

A Two-in-One product comprising a red and green laser in combination with a smoke machine creating

superb smoke production for smaller premises. The laser creates fabulous and exceptional star sky effects.

By using this combination producing light effects is rapidly and effectively achieved. Comes with remote

control and built-in fluid tank. Ideal for use in bars, clubs, at home etc.

•

Two-in-One product.

•

Red and Green laser effect

•

700W Smoke machine

•

Including 500ml smoke fluid

•

Extraordinary light effects rapidly realized

•

Remote control

LAYOUT:

1. Smokemachine power on/off

2. Laser on/off

3. Safety key on/off

4. 220~240VAC input

5. Smoke liquid level

Produktspezifikationen

Marke:	BeamZ
Kategorie:	Beleuchtung
Modell:	S700-LS 160.423
Gewicht:	2400 g
Produktfarbe:	Schwarz
AC Eingangsspannung:	220-240 V
AC Eingangsfrequenz:	50 Hz
Leistung:	700 W
Kapazität Flüssigkeitstank:	0.25 l
Anwärmdauer:	5 min
Abmessungen Gerät (B x H x T):	225 x 230 x 125 mm
Rauch output volumen:	75 m³/min
