Seite 1/9
With more standard features
than any other loop detector
on the market, the Matrix2-S
has the flexibility, compatibility
and performance to maximize
productivity and safety
on your site.
Try it NOW
The Future of Sensors, Now!

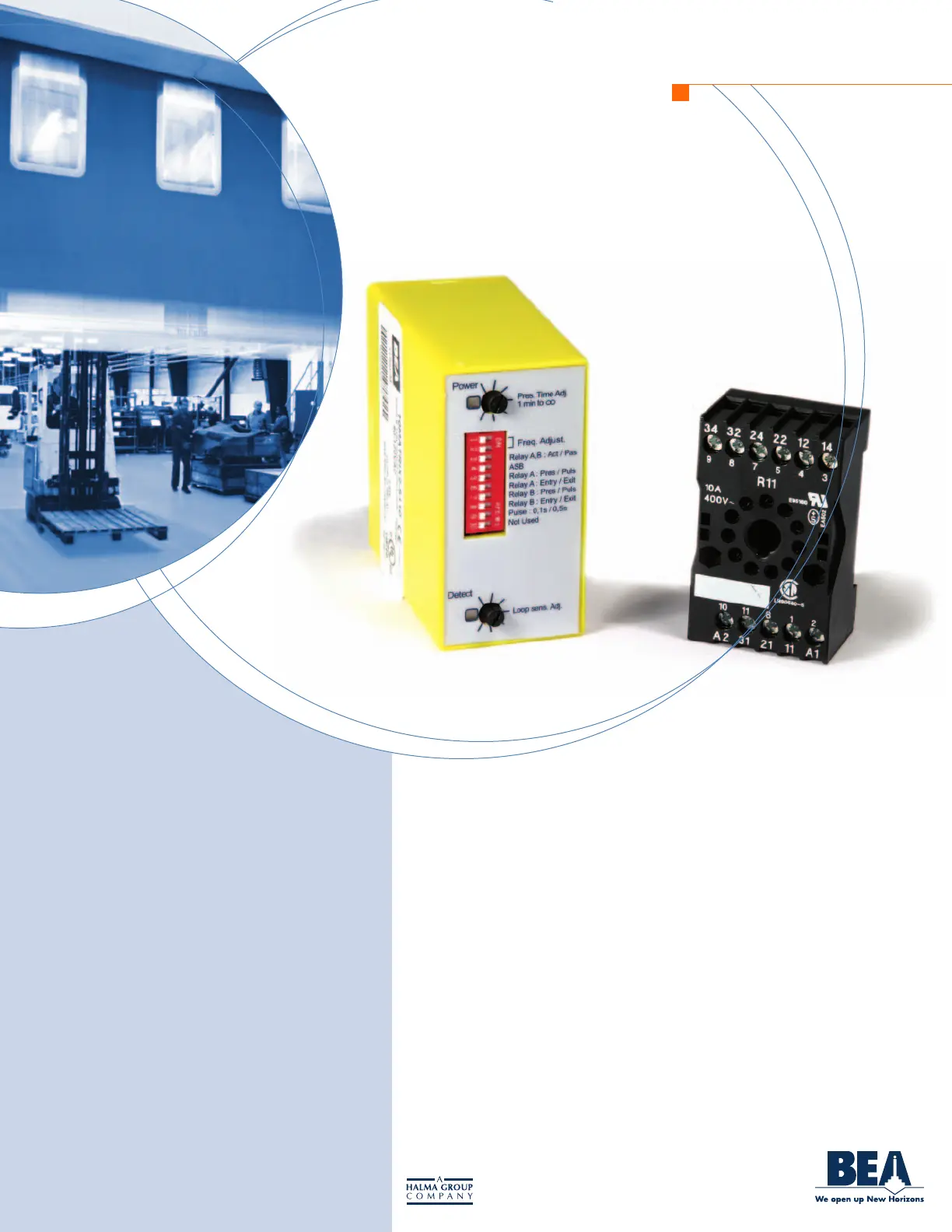

nMatrix2-S is a series of digital inductive, single loop detectors for vehicle access
control and safety for doors, gates, and numerous other applications.
High performance features include :
> PRESENCE time adjustability up to INFINITY
> Selection of PRESENCE and PULSE outputs
> AUTOMATIC SENSITIVITY BOOST increases the sensitivity upon detection, and allows
for continuous detection of high-bed vehicles
> Four frequency settings ensure NO CROSSTALK occurs between adjacent loops
> The microprocessed Matrix adjusts to OUTSIDE TEMPERATURES - detection is not
affected by long-term occupation of the loop
nThe Matrix2-S is available in two models to accommodate nearly any application
> Available in single channel mode, and power supply configurations of 110 or 220
volts AC, or 12-24 volts AC/DC, the Matrix is compatible with any door control or
application you may encounter
nUnlike traditional DIP switches, the Matrix2-S’s continuous mode adjustments allow
for precise settings to match your application
> Settings such as sensitivity and presence are adjusted via potentiometer so wide
ranges and precise adjustments are made easy
Matrix2-S
BEA’s digital inductive
single loop
solution
www.beasensors.com
Matrix Components
Main connector (86CP11)
Power LED
Presence time potentiometer
DIP switches
Detection state LED
Sensitivity adjustment potentiometer
Matrix2-S applicationMatrix2-S Technical Specifications
Technology Inductive loop
Tuning automatic
Detection mode presence
Presence time 1 min to infinity (permanent presence)
with 250 steps.
Pulse time output 100 ms or 500 ms
Inductance range 20 micro to 1000 micro
Frequency range 20 kHz to 130 kHz
Frequency steps 4 for single loop / 2 for dual loop
(for each loop)
Sensitivity (DL/L) 0.005% to 0.5% with 250 steps
Reaction time 25ms for single loop
Setup time at power on 8 seconds maximum by channel
Setup time after configuration 2 seconds maximum by channel
Power supply 12-24 AC/DC ± 10% / 230 VAC
± 10% / 115 VAC ± 10%
(depending on model)
Frequency range 48 to 62 Hz
Power Consumption <2.5W
Temperature range -22°F to +158°F (-30°C to +70°C)
Degree of protection IP40
2 Output relays · Max contact voltage : 230 VAC
(free potential change-over contact)
· Max contact current : 5A (resistive)
LED indicators · 1 green LED : power
· 1 red LED : Loop status 1
· 1 red LED : Loop status 2
Protections · loop insulation transformer / Zener
diodes / gas discharge clamping.
Connection Standard 11-pin round connector
86CP11
Dimensions · Height: 3" (77mm) / Width: 1 5/8"
(40mm) / Depth: 3" (77mm)
Weight < 7 ounces
Immunity electromagnetic compatibility (EMC)
according to 89/336/EEC and its amendments
1
1
2
3
4
5
6
2
3
4
5
6
Contact Information
BEA Inc.
RIDC Park West
100 Enterprise Drive
Pittsburgh PA, 15275
Phone +1.412.249.4100
Fax +1.412.249.4101
Toll Free 1-800.523.2462
BEA West
2401 Pine Street
Los Angeles, CA 91767
Phone +1.909.596.3011
Fax +1.909.596.5411
Toll Free 1-877.232.9378 www.beasensors.com
Industrial Door:
The Matrix2-S will activate and
hold open an industrial door as
soon as a vehicle enters or stay in
its field of detection.
Gate opening and safety:
The Matrix2-S will activate
and hold open a gate
(parking as shown above)
as soon as a vehicle enters
or stay in its field of detection.
75.1046 V3 July 2005 [Rev. 7/21/2005] Page 1 of 6
The MATRIX Digital Inductive Loop Detector is the ideal solution for parking barrier control, motorized gates and doors, vehicle
access control and industrial control systems.
The MATRIX is a high performance single or dual-channel vehicle detector packaged in a compact housing. The connection is
made with a standard industrial 11-pin round connector.
The six versions listed below include single or dual-channel, and 3 possible power supplies:
10MATRIXS110 : Single loop detector with 110 to 120 V AC power supply.
10MATRIXS220 : Single loop detector with 220 to 240 V AC power supply.
10MATRIXS1224 : Single loop detector with 12 to 24 V AC/DC power supply.
10MATRIXD110 : Dual loop detector with 110 to 120 V AC power supply.
10MATRIXD220 : Dual loop detector with 220 to 240 V AC power supply.
10MATRIXD1224 : Dual loop detector with 12 to 24 V AC/DC power supply.
Technology : Inductive loop
Tuning : automatic
Detection mode : presence
Presence time : 1 min to infinity (permanent
presence) with 250 steps.
Pulse time output : 100 ms or 500 ms
Inductance range : 20 µH to 1000 µH
Frequency range : 20 kHz to 130 kHz
Frequency steps : 4 for single loop
2 for dual loop (for each loop)
Sensitivity ( L/L) ∆: 0.005% to 0.5% with 250 steps
Reaction time : 25ms for single loop
50ms for dual loop(each channel)
Setup time at power on : 8 s max by channel
Setup time after configuration : 2s max by channel
Power supply (depending on model) :
• ±12-24 AC/DC 10%
• ±230VAC 10 %
• ±115VAC 10 %
Power Frequency : 48 to 62 Hz
Power Consumption : < 2.5 W
Temperature range : -22 F to 158 F ° °
[-30°C to +70°C]
Degree of protection : IP40
2 Output relays (free potential change-over contact) :
• Max contact voltage : 230 VAC ;
Max contact current : 5A (resistive). •
: LED indicators
1 green LED : power ; •
1 red LED : Loop status 1 ; •
1 red LED : Loop status 2. •
Protections :
loop insulation transformer ;•
Zener diodes ; •
gas discharge clamping. •
Connection :
Standard 11-pin round connector 86CP11
Dimensions : 3 in (H) x 1.5 in (W) x 3 in (D)
[
77mm (H) x 40mm(W) x 75mm(D)]
Weight : 7 ounces [< 200g]
Product compliance :
R&TTE 1999/5/EC
EMC 89/336/EEC
FCC 47CFR15
IC RSS-210 Issue 5
• Shut off all power before attempting any wiring procedures.
• Maintain a clean & safe environment.
• Constantly be aware of traffic around the door or gate area.
• Always suspend traffic through the doorway or gate area when performing testing that may result in unexpected
reactions by the door or gate.
• Always check placement of all wiring and components before powering up to insure that moving parts will not catch
any wires and cause damage to equipment.
DESCRIPTION
OF THE
SENSOR
APPLICATIONS
TECHNICAL
SPECIFICATIONS
1.5 in
3
in
3 in
SAFETY
PRECAUTIONS
!
We open up New Horizons
USERS GUIDE
MATRIX
DIGITAL INDUCTIVE LOOP SENSORS
