Seite 1/2

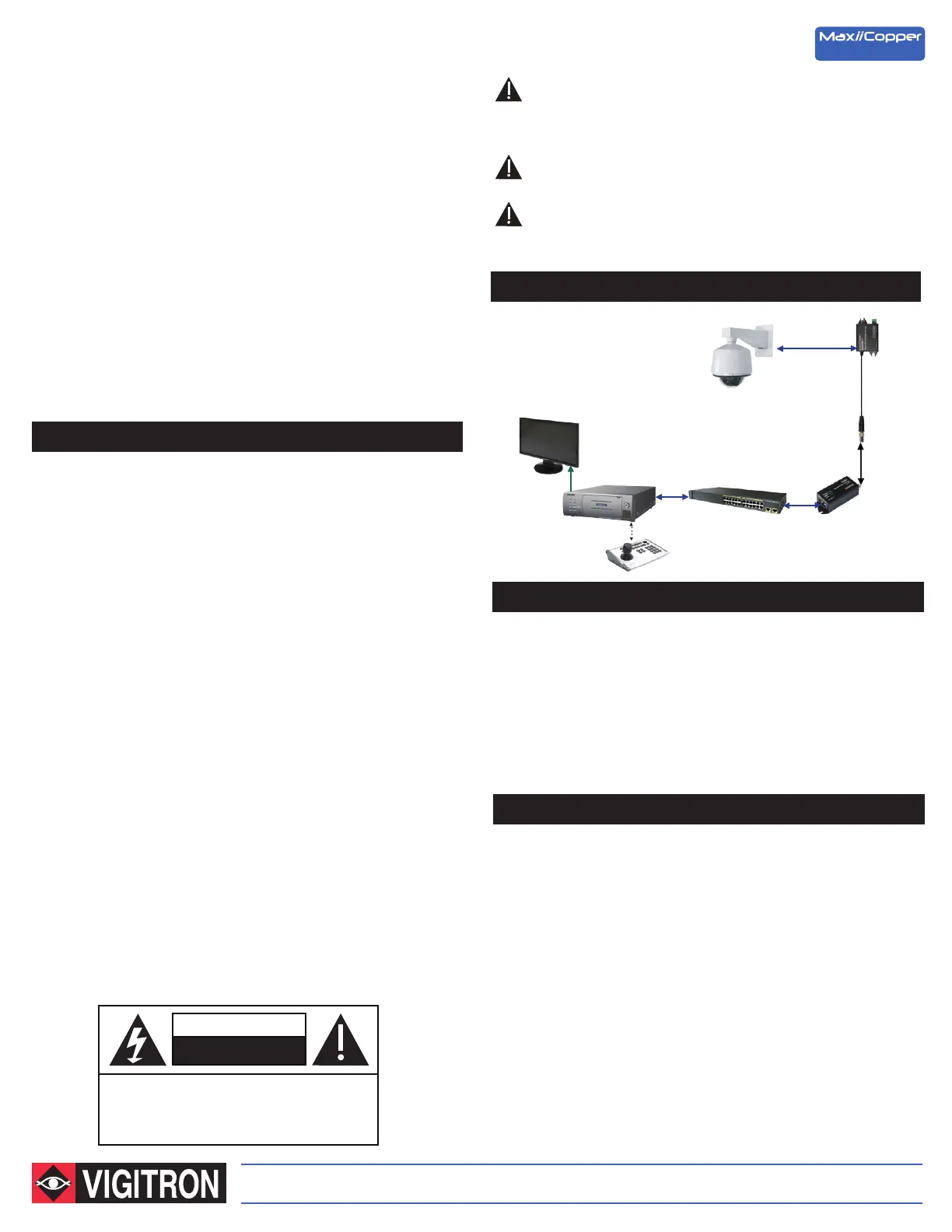

Application Drawing
Vi2400A Ethernet Extender over Coax Installation Manual
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
IP Camera-end Installation
The Smart Choice for Transmission Solutions www.vigitron.com
The MaxiiCopper Mini Model Vi2400A is a very compact data transmission
device that extends full-duplex High-Speed Ethernet over existing coax
infrastructures. It extends 10BaseT signals up to 5,000 ft (1,524m) and
100BaseT up to 1,800 ft (548m). It can fit in most camera housings and
junction boxes. With Pass Through PoE (PTP™), it can handle up to 30W
PoE power. It employs MaxiiCopper
™
innovative and unique Ethernet
extension technology that is designed to take full advantage of
high-bandwidth networking cables and maintain a full-duplex 10 or 100Mb/s
Ethernet connection up to the maximum range with minimum transmission
error and latency. Vi2400A can connect multiple remote network devices
such as Mega-pixel IP cameras or VoIP to a central LAN switching fabric
with ease. Its automatic dual-rate capability feature balances the best
possible network throughput and long-reach distance.
The Vi2400A is a transmitter device and needs to be deployed on the
camera end. The data rate between the remote and central locations is
automatically set based on the distance. It is equipped with LEDs to provide
link status and configured data rate. No IP setting or configurations are
required and it is completely transparent to the corporate IP network and
higher layer protocols. The Coax cable needs to be point to point without
any branches and multiple segments can be joined together using barrel
connectors.
ExtendersEthernet
Important Safety Warning
- Ground the unit through the earth ground screw.
- Connect the IP camera RJ45 connector to the 10/100BaseT Ethernet port
of Vi2400A using a standard Cat5/6 cable of maximum 100 m in length.
- Connect one end of the long coax cable to the BNC connector of
Vi2400A.
The link LED on the 10/100 connector should be “ON” to indicate proper
connection between the camera and Vi2400A.
Ethernet Switch/NVR-end Installation
- Use a Vi2401A/Vi2404A/Vi2408A or Vi2416A on the receiving side.
- If using a Vi2401A set the Master/Slave dip switch to “Slave” mode and
Set the Remote/Local switch to Local.
- Connect the RJ45 connector of the Ethernet switch to the 10/100BaseT
Ethernet port of Vi2401A using a standard Cat5/6 cable of maximum
100 m in length.
- Connect one end of the long coax cable to the BNC connector of Vi24xxA.
The link LED on the 10/100 Ethernet connector should be “ON” to indicate
proper connection between the switch and Vi24xxA. Also the Traffic LED
on the Coax side should be on and flashing to indicate proper connection.
While the Link LED, Orange for 100BaseT and Green for 10BaseT, in a
steady state will indicate confirmed connection between extenders.
IP Camera
Up to 5,000 ft.
(1,515 m) Coax
Cat-5
Cat-5
Data
NVR Network Switch
Vi2400A
Vi2401A
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer’s instructions.
- This installation should be made by a qualified service person and should
conform to all local codes.
- DO NOT bundle UTP or Coax signals in the same conduit as high-voltage
wiring.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient tempera
ture exceeds 75°C.
- Make sure that the external power supply output voltage is in the recom
mended range.
- Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus (including DVRs) that produce heat.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The mains plug is used as the disconnect device and shall remain readily
operable.
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a mains socket outlet thru an AC to DC Power supply.
WARNING! - The mains plug is used as the disconnect device and
shall remain readily operable.
PART No. Description
Vi2400A
Single port Mini Coax Ethernet Extender
Vi2404A
4-port Coax Ethernet Extender
Vi2408A 8-port
Coax
Ethernet Extender, 19”, 1U
Vi2416A 16-port Coax Ethernet Extender,
19”, 1U
Limited Lifetime Warranty
Vigitron, Inc. warrants that all Vigitron products (“Product”), if used in accordance
with these instructions, will be free of defects in material and workmanship for
lifetime defined as the duration period of time until product end of life is announce-
ment. After which Vigitron will continue to provide warranty services for a period of 3
years. Period covering valid warranty will be determined by proof of purchase in the
form of an invoice from an authorized Vigitron dealer.
Warranty will only be provided for as long as the original end user purchaser owns
the product. Warranty is not transferrable. At Vigitron's option, defective product will
be repaired, replaced or substituted with a product of equal value. This warranty
does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used
or maintained not conforming to Product manual instructions, has been modified, or
serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an
approved agent will void this warranty. Vigitron, Inc. shall not under any circum-
stances be liable to any person for any incidental, indirect or consequential
damages, including damages resulting from use or malfunction of the product, loss
of profits or revenues or costs of replacement goods. The maximum liability of
Vigitron, Inc. under this warranty is limited to the original purchase price of the
Product only.
Technical Specifications*
RoHS
Drawings
Electrical
Ethernet Interface Standard 10/100BaseT
Ethernet Rate Auto select 10/100 Mb/s
Full speed / full duplex at maximum rated distance
Coax (data only)** 75 Ohm, 5000 ft (1,524 m) at 10BaseT
1,800 ft (548 m) at 100BaseT
Coax (with PoE)** 3,000 ft (914m) at 10 BaseT
1,800 ft (546m) at 100 BaseT
Power Supply 12 VDC, 1.8 W w/POE af/at, 1.5 W w/external power supply
Connectors Ethernet Interface: RJ-45 Connector
Extended Interface: 11” mini Coax and Female BNC
Power: IEC380-8 inlet
Environmental
Humidity 0 to 95%, non-condensing
Temperature Operating: -40°C to +75°C
Storage: -40°C to +85°C
Mechanical
Dimensions 0.83x1.6x2.2 in., 2.1x4.0x5.6 cm (HxWxL)
Weight 0.212 lb, 96 g
Material Extruded Aluminum
Accessories
12 VDC wall-mount power supply (optional)
*Specifications subject to change without notice.
**Distance figures are obtained using in house testing mirroring installations. Factors such as cabling, connections,
use of power and environmental conditions may affect actual distances and should be taken into consideration.
Ordering Information
Ethernet Status LEDs
© Copyright 2018 Vigitron, Inc.
TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205
7810 Trade Street, Suite 100, San Diego, CA 92121, USA • support@vigitron.com • www.vigitron.com
Manual_Vi2400A_1118
LED Name Color Status Function
OFF Power is OFF
ON Power is ON
OFF No Traffic
FLASHING Traffic
GREEN ON Connection is OK, 10BaseT Mode
ON Connection is OK, 100BaseT Mode
OFF No connection
FLASHING Connection is OK with Traffic
OFF No connection
ON Connection is OK
Link
(Standard Side)
Power RED
Traffic
(Extended Side) YELLOW
10/100 BaseT
(Extended Side)
Traffic
(Standard Side) GREEN
YELLOW
RED
Ethernet Switch/NVR-end Installation (Cont.)
- If the Vi2400A receives power using PoE, make certain the power adaptor
is not connected. The Vi2400A and camera will receive power from the
PSE source.
- If a PSE source such as a PoE network switch is not available, external
power must be provided to the Vi2400A.
CAUTION:
If the external power adaptor is connected with no power applied the
Vi2400A will not reference to a PoE source and the system will be
inoperative.
Extended
Ethernet
Traffic Link
Traffic
10/100
Vi2401A
Single port Coax Ethernet Extender
Note:
Single pair wire application designs need to be confirmed by Vigitron tech support.
Left View
0.97"
2.86"
0.9”
Mounting Pattern
Top View
2"
1.75”
11"
Ethernet & PoE Extender over Coax
Vi2400
TM
Made in U.S.A.
Power
Right View
Power
12DC
