Seite 1/4
www.btechavmounts.com
SINGAPORE
B-Tech AV Mounts PTE Ltd
Ruby Industrial Complex,
Singapore 347740
Tel: (+65) 68412988 Fax: (+65) 6491 5613
Email: info@btechavmounts.com.sg
EUROPE
B-Tech PRO-AV bvba
Brixtonlaan 32, Zaventem 1930,
Brussels, Belgium.
Tel: +32 (0)2 720 92 71 Fax: +32 (0)2 725 42 15
Email: info@btechproav.com
NORTH AMERICA
B-Tech Audio Video Mounts
203 Eggert Road,
Buffalo, NY 14215, USA.
Tel: (1)800 975 5812 Fax: (1)800 592 2876
Email: info@btechavmounts.com
HEAD OFFICE
B-Tech International Ltd.
Bennett House, Long March,
Daventry, Northants, NN11 4NR, UK.
Tel: +44 (0)1327 300 787 Fax: +44 (0)1327 706 562
Email: info@btechavmounts.co.uk
PAGE 1 / 4
ASIA PACIFIC
B-Tech International (Hong Kong) Ltd.
1503 Prosperity Millennia Plaza, 663 King's Road,
Quarry Bay, Hong Kong.
Tel: (+852) 2556 7337 Fax: (+852) 2556 7321
Email: info@btechavmounts.com.hk
©2010 Bennett Technologies Limited. All rights reserved.B-Tech Audio Video Mounts is a division of Bennett Technologies Limited. B-Tech, Better By Design & Mountlogic are registered trademarks of Bennett Technologies Limited.
All other brands and product names are trademarks of their respective owners. Photographs are for illustrative purposes only. E&OE.
MADE IN CHINA

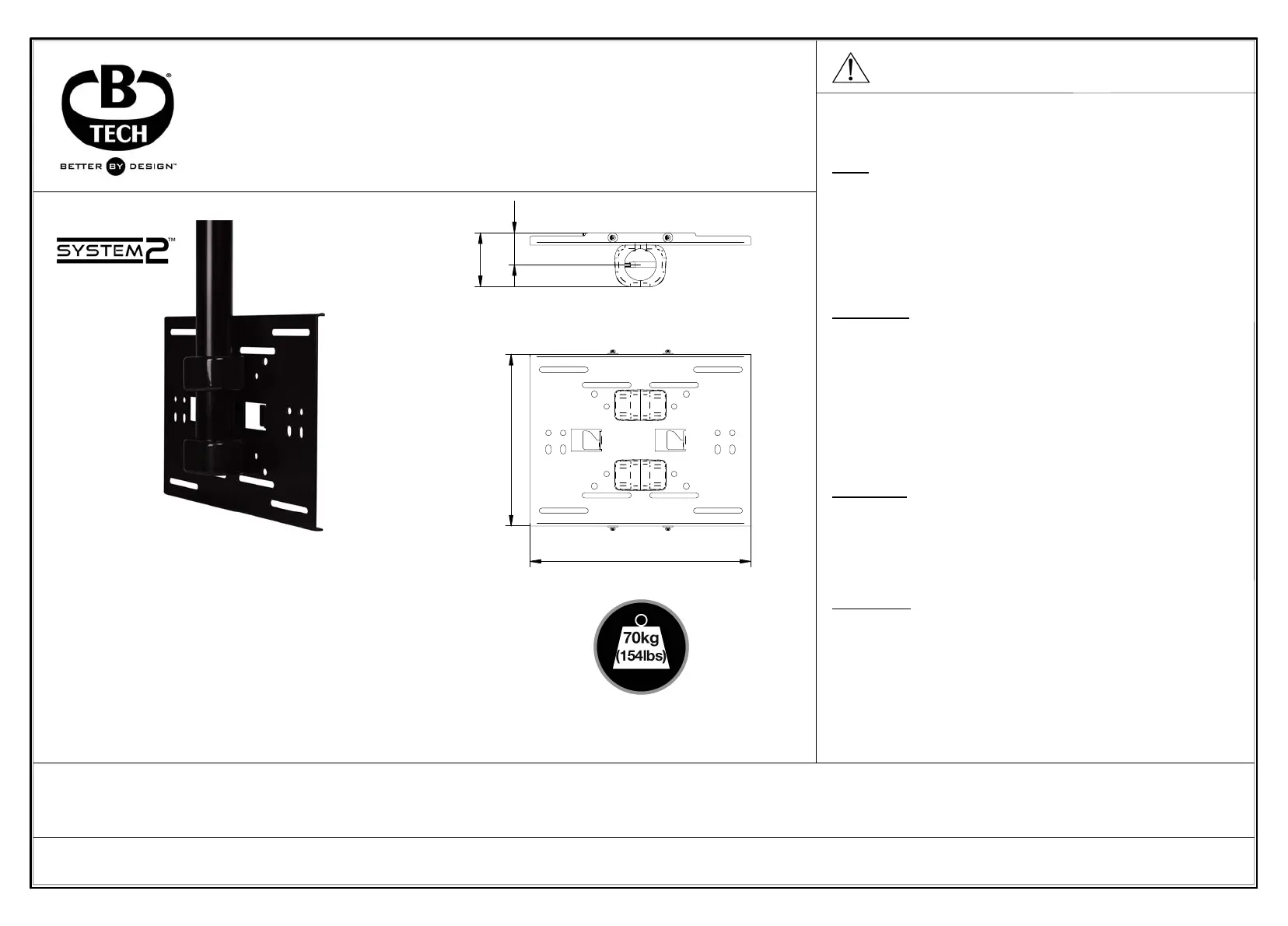

This Pack Contains 1 Flat Screen Mounting Plate & 2 50mm Collars With Covers
• Suitable for use with vertical or horizontal 50mm (2”) poles
• Suitable for back-to-back screen installations
• Mounts screen in landscape or portrait style
• 2 heavy duty collars with covers included
• Compatible with BTX24V and BTX24H
• Attaches to mounts with 150 x 150mm fixing patterns
• Security Allen key and screws provided
• Supplied with safety bolt for secure installation
• Simple hook-on installation with all mounting hardware included
• Must be used with flat screen interface kit (BT7507 / BT8600 / BT8500 / BT8501)
Registered Design No: 4010378
IP-BT8026-V1-PROBX-220710-01
360
280
87,8
52
CAUTION: This mount is intended for use only with the maximum weights
indicated. Use with flat screens heavier than the maximum indicated may
result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and
properly understood. Please keep these instructions for future reference.
B-Tech International Limited, its distributors and dealers are not liable or responsible for
damage or injury caused by improper installation, improper use or failure to observe these
safety instructions. In such cases, all guarantees will expire.
General
B-Tech International Ltd recommends that a professional AV installer or other suitably qualified
person install this product. Great care must always be taken during installation as most AV
equipment is of a fragile nature, possibly heavy and easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely,
then please consult a professional for advice and/or to install this product for you. Failure to
mount this product correctly may cause serious injury or death both during installation and at
any time thereafter.
Do not mount any AV equipment that exceeds the specific weight limit of the product you are
installing. This weight limit will be clearly stated on each product and its packaging and will
vary from product to product.
Product location
Please pay careful attention to where this product is located. Some ceilings, walls and floors
are not suitable for installation.
If located in a public or frequently populated area ensure that the product is out of the
immediate reach of people. If any AV equipment is to be suspended over the likely path or
location of people then great care should be taken to secure all parts of the installation from
falling.
If you install this product on drywall it must be securely fixed to a wooden stud, concrete block
or other permanent structure behind the drywall board. Installing on drywall boards alone will
not support the weight of most AV equipment.
When drilling holes in ceilings, walls and floors it is essential to avoid contact with electrical
cables and water or gas pipes contained within. Use of a good quality live wire detector and
hidden object locator is therefore recommended. Only drill into structures when you are sure it
is safe to do so.
Fixing hardware
It is highly recommended that all ceiling, wall and floor fixing screws be used where supplied
and that the purpose of all other fixing hardware is fully understood. In some cases more AV
equipment fixing hardware will be supplied to accommodate different models of equipment and
set up configurations.
The installer must be satisfied that any supplied fixing hardware is suitable for each specific
installation. If any fixing screws or included hardware are deemed not sufficient for a safe
installation then please consult a professional or your local hardware store.
Hazard limitation
When routing cables take advantage of any built in cable management features that the
product might provide and ensure that all cables are tidy and secure. Check to see that any
moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or
trapping of fingers or other body parts.
Particular attention to the nature of moving parts is required especially when assembling
installing and adjusting during set up.
Immediately after installations double-check that the work done is safe and secure. Double-
check all necessary fixings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its fixing points are made as
frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV
installer or other suitably qualified person.
10
No PART NAME QTY
1 MOUNTING PLATE (BT8009) 1
2 BT7051 COLLAR 2
3 M8 X 15mm GRUB SCREW 8
4 M8 X 12mm FLAT HEAD CROSS SCREW 16
5 M5 X 12mm PIN HEX SCREW 4
6 M6 METAL WASHER
(FOR PART 5) 4
7 M8 SPRING WASHER
(FOR PART 4 & 9) 17
8 BT7051 COLLAR COVER 4
9 M8 X 65mm HEX SAFETY BOLT 1
10 4mm PIN HEX KEY (LONG)
(FOR PARTS 3 & 5) 1
11 5mm HEX KEY
(FOR PART 9) 1
PAGE 2 / 4
11
Suitable for loads up to 70kg (154lbs)
9
8
7
6
5
4
3
2
1
Spare screws and
washers are provided
for use on the other
side of the collar if
two accessories need
to be attached.
Covers cannot be
used in this situation.
7
4
7
IP-BT8026-V1-PROBX-220710-01
PAGE 3 / 4
1. Attach collars to the mounting plate
Fasten both 50mm accessory collars (Part 2) to the
mounting plate (Part 1) by using the M8 cross screws
(Part 4) with the spring washers (Part 7).
Slide the collars
(Part 2) onto the
pole, until the
desired height is
achieved.
2. Fix mount to the pole
3. Fix the interface kit (sold separately)
to the flat screen
Mount a B-Tech interface kit to the flat screen. See
interface kit manual for screen fixing instructions.
Suitable interface kits are BT7507, BT8600, BT8500
& BT8501.
5. Attach collar covers4. Hook the flat screen
onto the mounting plate Fit the collar covers (Part 8) onto the 2 collars
for a neat and tidy finish.
Hook the interface (with flat
screen attached) onto the
mounting plate (Part 1), then
secure by using the 4mm hex
key (Part 10) to tighten the 4
pin hex screws (Part 5) with
washers (Part 6) at the top
and bottom of the interface
plate.
BT8500
interface
(example)
2
2
11
6
58
1
7
4
1
Fit the safety bolt
(Part 9) with spring
washer (Part 7)
through the bottom
collar and pole, then
fasten grub screws
(Part 3) to fix the
position.
3
Tools Required For Installation:
- Crosshead Screwdriver
Flat
screen
50mm (2")
pole sold
separately
9
7
1
5
6
IP-BT8026-V1-PROBX-220710-01
