This pack contains:
1 desk stand kit Caution: Do not exceed the maximum weight limit indicated for this product.
Failure to comply may cause instability and possible serious injury.
©
www.btechavmounts.com
Asia Pacific
B-Tech International (Hong Kong) Ltd.
23rd Floor, Manulife Tower, North Point, HK
Tel: (+852) 2556 7337 Fax: (+852) 2556 7321
Email: info@btechavmounts.com.hk
Europe
B-Tech PRO-AV bvba
Brixtonlaan 32, Zaventem 1930,Brussels, Belgium
Tel: +32 (0)2 720 92 71 Fax: +32 (0)2 725 42 15
Email: info@btechproav.com
North America
B-Tech Audio Video Mounts.
10 Greg Street, #108, Sparks, NV 89431, USA
Tel: (1)800 975 5812 Fax: (1)800 592 2876
Email: info@btechavmounts.com
Head Office
B-Tech International Ltd.
Bennett House, Long March, Daventry, Northants NN11 4NR, UK
Tel: +44 (0)1327 300 787 Fax: +44 (0)1327 706 562
Email: info@btechavmounts.co.uk

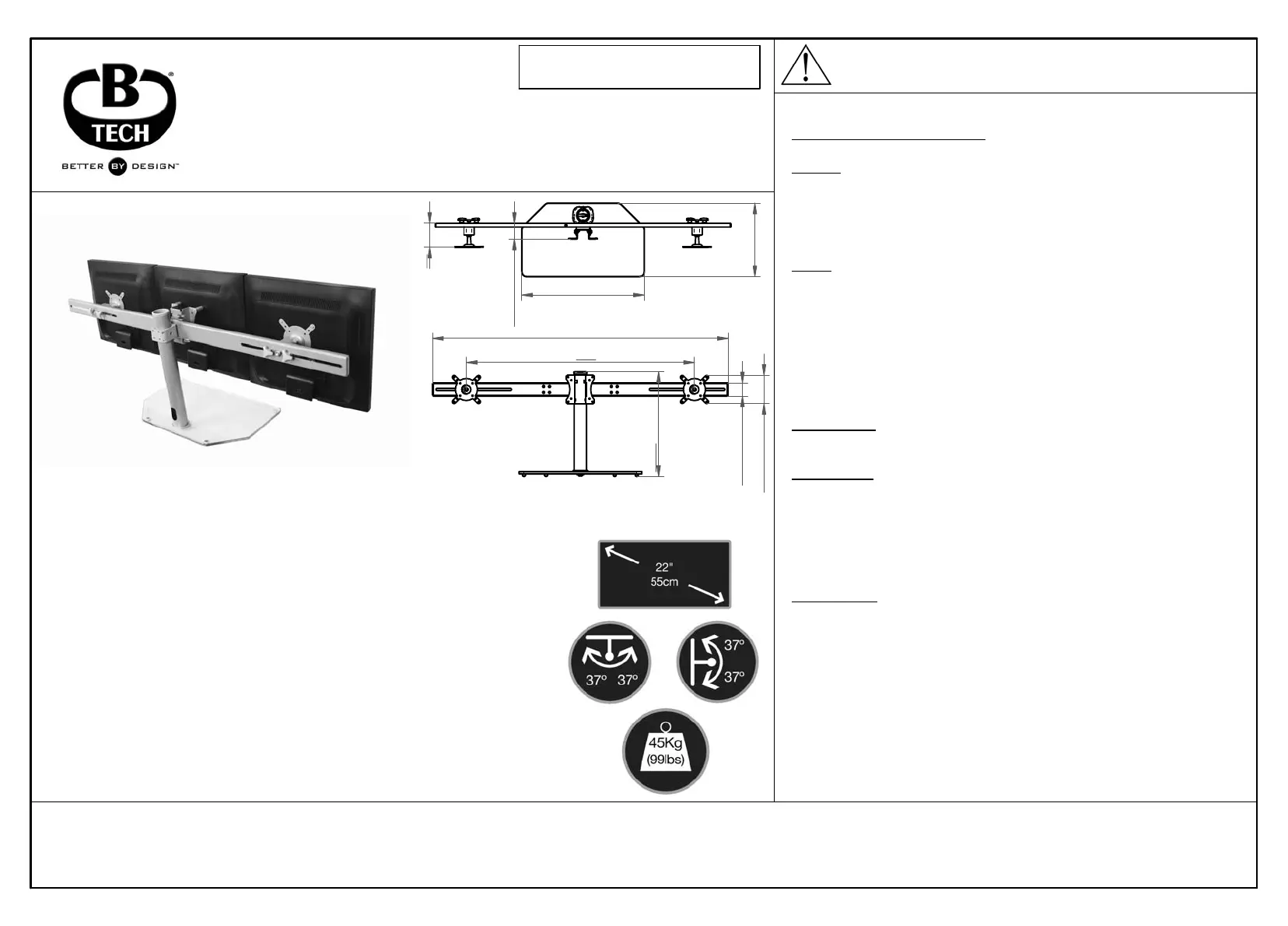

300 mm (11.8")
Designed to mount 3 flat screen monitors up to 22" (widescreen) onto
a desk
The glass base is designed to hold a keyboard on top when not in
use to keep the workspace tidy
The position of the flat screens can be adjusted along the horizontal
bar 510 – 1110mm (20” – 43.7”)
Suitable for flat screens with the following VESA fixings:
100 100mm, 75 x 75mm and 50 x 50mm
Maximum load: 45Kg (99lbs), 15Kg (33lbs) per interface mount
AViBall adjusts 37° in any direction, centre interface tilts -10°/+25°
Pole dimensions: Ø50mm (2”), 0.4M (15.7”) length
Base dimensions: W 500mm (19.7”), D 300mm (11.8”), H 20.5 (0.8”)
Base made from 10mm (0.4”) thick tempered safety glass with non-
slip rubber feet
Cable management and pole end ring included
All fixings included
Made in China
This desk mount is intended for use only with the maximum
weights indicated. Use with heavier than the maximum
indicated may result in instability causing possible injury.
1206 mm (47.5")
1110
ADJUSTMENT 510 - mm (20" - 43.7")
427,5 mm (16.8")
115 mm (4.5")
54 mm (2.1")
500 mm (19.7")
98 mm (3.8")
64,5 mm (2.5")
or 98 mm (3.8")
Important Safety Instructions.
Read first
Do not attempt to install this product until all instructions and warnings have been read and
properly understood. Please keep these instructions for future reference.
B-Tech International Limited, its distributors and dealers are not liable or responsible for
damage or injury caused by improper installation, improper use or failure to observe these
safety instructions. In such cases, all guarantees will expire.
General
B-Tech International Ltd recommends that a professional AV installer or other suitably qualified
person install this product. Great care must always be taken during installation as most AV
equipment is of a fragile nature, possibly heavy and easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely,
then please consult a professional for advice and/or to install this product for you. Failure to
mount this product correctly may cause serious injury or death both during installation and at
any time thereafter.
Do not mount any AV equipment that exceeds the specific weight limit of the product you are
installing. This weight limit will be clearly stated on each product and its packaging and will
vary from product to product.
Product location
Please pay careful attention to where this product is located.
Fixing hardware
It is highly recommended that all fixing screws be used where supplied and that the purpose of
all other fixing hardware is fully understood. In some cases more AV equipment fixing
hardware will be supplied to accommodate different models of equipment and set up
configurations.
The installer must be satisfied that any supplied fixing hardware is suitable for each specific
installation. If any fixing screws or included hardware are deemed not sufficient for a safe
installation then please consult a professional or your local hardware store.
Hazard limitation
When routing cables take advantage of any built in cable management features that the
product might provide and ensure that all cables are tidy and secure. Check to see that any
moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or
trapping of fingers or other body parts.
Particular attention to the nature of moving parts is required especially when assembling
installing and adjusting during set up.
Immediately after installations double-check that the work done is safe and secure. Double-
check all necessary fixings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its fixing points are made as
frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV
installer or other suitably qualified person.
v.1208 OR1BX
A
25 26
27
28
29 30
B
C
No PART NAME QTY
1 50mm POLE CAP (BT7057) 1
2 ACCESSORY COLLAR (BT7053) 1
3 M8 X 15 GRUB SCREW 4
4 M8 X 65 SAFETY BOLT 1
5 ACCESSORY COLLAR COVER (BT7053) 2
6 50MM POLE 0.4M LENGTH (BT7325) 1
7 WASHER (STEEL) OD60 ID10.5 T2 1
8 FOAM PAD (SELF ADHESIVE) 1
9 GLASS BASE WITH FEET (BT7322) 1
10 WASHER (PLASTIC) OD30 ID10 T2.3 1
11 M10 X 35 ALLEN SCREW 1
12 HORIZONTAL RAIL FOR 3 SCREENS (BT7321) 1
13 HANDWHEEL 4
14 M8 X 25 CAP HEAD SCREW 2
15 AVIBALL ASSEMBLY 2
16 M5 X 6 GRUB SCREW 2
17 INTERFACE PLATE (BT7588) 2
18 WASHER (STEEL) M8 OD16 T1.6 2
19 SPRING WASHER M8 7
20 M8 X 23 SQUARE END ALLEN SCREW 2
21 M8 X 12 SECURITY ALLEN SCREW 6
22 TILT PLATE 1
23 INTERFACE PLATE (BT7511) 1
24 WASHER (PLASTIC) M8 OD19 T2.3 6
25 2.5MM ALLEN KEY
(FOR PARTS 16, A & B)
1
26 4MM ALLEN KEY
(FOR PART 3)
1
27 5MM SECURITY ALLEN KEY
(FOR PARTS 4, 20 & 21)
1
28 6MM ALLEN KEY
(FOR PART 11 & 14)
1
29 CABLE TIE MOUNT (ADHESIVE) 4
30 CABLE TIE 4
REF PART NAME QTY
A M4 X 12 ALLEN SCREW (TO FIX SCREENS) 12
B M4 X 40 ALLEN SCREW (TO FIX SCREEN) 4
C SPACER OD13 ID5.5 T30 (FOR PART B) 4
PAGE 2 / 5
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18 19 20
21
19
22
23
24
21
19
24
Suitable for loads up to 45Kg (99lbs),
15Kg (33lbs) per interface mount
PAGE 3 / 5
v.1208 OR1BX
3. In line monitors.
Spacers provided (part C) can be used with the M4 X 40 Allen Screws (part B) to bring
the central monitor in line with the two monitors on either side.
33
1. Offset central monitor.
Central monitor will be offset 33mm from the left and right monitors.
Use M4 X 12 Allen Screws provided (part A).
2. Swivel left and right monitors.
Adjust the angle of the AVIball to swivel the left and right monitors.
Use M4 X 12 Allen Screws provided (part A).
A
DETAIL A
C
B
