Seite 1/4
v.1208 OR1BX

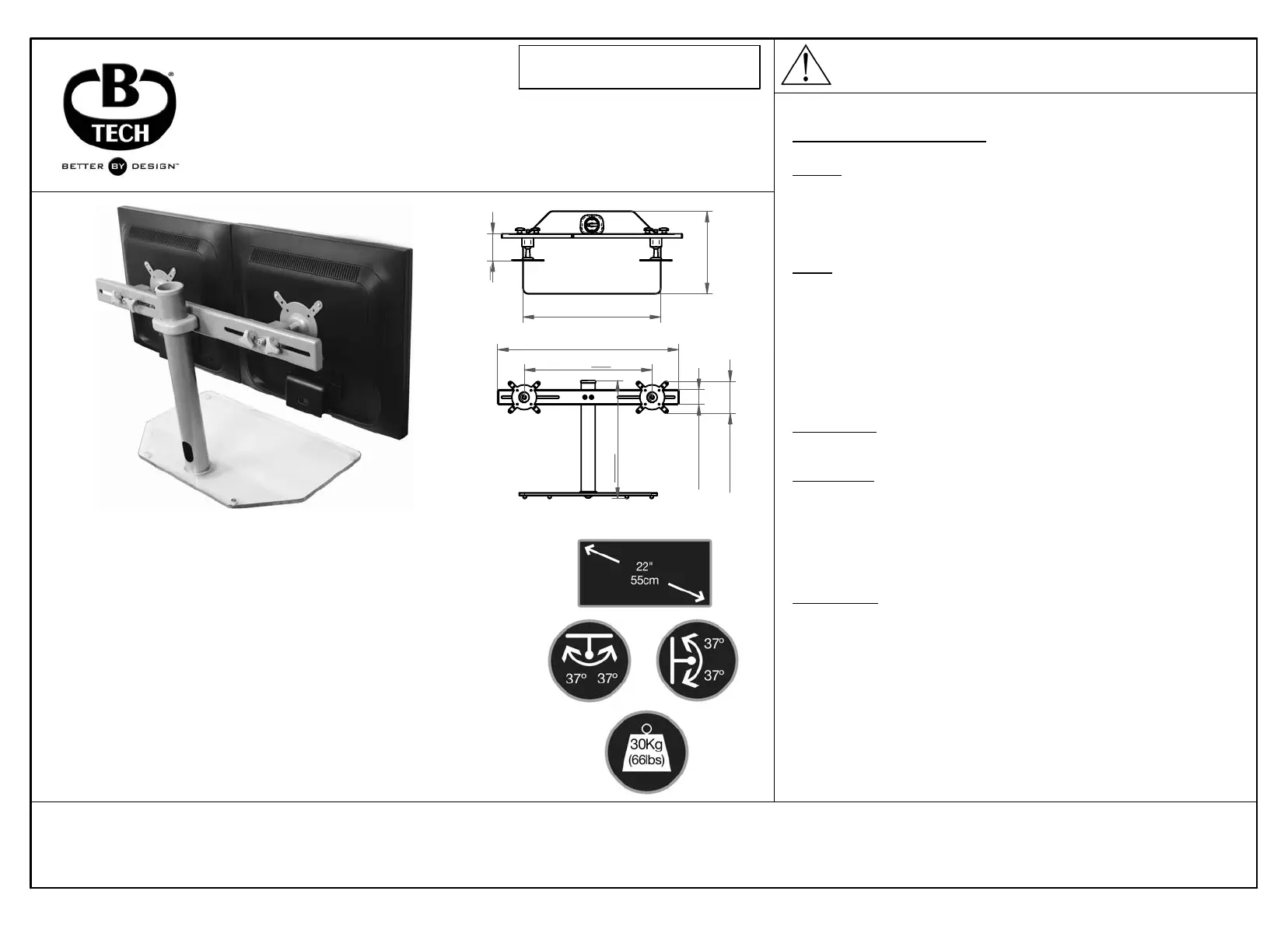

PAGE 1 / 4
This pack contains:
1 desk stand kit Caution: Do not exceed the maximum weight limit indicated for this product.
Failure to comply may cause instability and possible serious injury.
©
www.btechavmounts.com
Asia Pacific
B-Tech International (Hong Kong) Ltd.
23rd Floor, Manulife Tower, North Point, HK
Tel: (+852) 2556 7337 Fax: (+852) 2556 7321
Email: info@btechavmounts.com.hk
Europe
B-Tech PRO-AV bvba
Brixtonlaan 32, Zaventem 1930,Brussels, Belgium
Tel: +32 (0)2 720 92 71 Fax: +32 (0)2 725 42 15
Email: info@btechproav.com
North America
B-Tech Audio Video Mounts.
10 Greg Street, #108, Sparks, NV 89431, USA
Tel: (1)800 975 5812 Fax: (1)800 592 2876
Email: info@btechavmounts.com
Head Office
B-Tech International Ltd.
Bennett House, Long March, Daventry, Northants NN11 4NR, UK
Tel: +44 (0)1327 300 787 Fax: +44 (0)1327 706 562
Email: info@btechavmounts.co.uk
300 mm (11.8")
• Designed to mount 2 flat screen monitors up to 22" (widescreen) onto
a desk
• The glass base is designed to hold a keyboard on top when not in
use to keep the workspace tidy
• The position of the flat screens can be adjusted along the horizontal
bar 280 – 560mm (11” – 22”)
• Suitable for flat screens with the following VESA fixings:
100 x 100mm, 75 x 75mm and 50 x 50mm
• Maximum load: 30Kg (66lbs), 15Kg (33lbs) per AViBall mount
• AViBall adjusts 37° in any direction
• Pole dimensions: Ø50mm (2”), 0.4M (15.7”) length
• Base dimensions: W 500mm (19.7”), D 300mm (11.8”), H 20.5 (0.8”)
• Base made from 10mm (0.4”) thick tempered safety glass with non-
slip rubber feet
• Cable management and pole end ring included
• All fixings included
This desk stand is intended for use only with the maximum
weights indicated. Use with heavier than the maximum
indicated may result in instability causing possible injury.
Made in China
500 mm (19.7")
98 mm (3.8")
560
ADJUSTMENT 280 - mm (11" - 22")
656 mm (25.8")
427,5 mm (16.8")
54 mm (2.1")
115 mm (4.5")
Important Safety Instructions.
Read first
Do not attempt to install this product until all instructions and warnings have been read and
properly understood. Please keep these instructions for future reference.
B-Tech International Limited, its distributors and dealers are not liable or responsible for
damage or injury caused by improper installation, improper use or failure to observe these
safety instructions. In such cases, all guarantees will expire.
General
B-Tech International Ltd recommends that a professional AV installer or other suitably qualified
person install this product. Great care must always be taken during installation as most AV
equipment is of a fragile nature, possibly heavy and easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely,
then please consult a professional for advice and/or to install this product for you. Failure to
mount this product correctly may cause serious injury or death both during installation and at
any time thereafter.
Do not mount any AV equipment that exceeds the specific weight limit of the product you are
installing. This weight limit will be clearly stated on each product and its packaging and will
vary from product to product.
Product location
Please pay careful attention to where this product is located.
Fixing hardware
It is highly recommended that all fixing screws be used where supplied and that the purpose of
all other fixing hardware is fully understood. In some cases more AV equipment fixing
hardware will be supplied to accommodate different models of equipment and set up
configurations.
The installer must be satisfied that any supplied fixing hardware is suitable for each specific
installation. If any fixing screws or included hardware are deemed not sufficient for a safe
installation then please consult a professional or your local hardware store.
Hazard limitation
When routing cables take advantage of any built in cable management features that the
product might provide and ensure that all cables are tidy and secure. Check to see that any
moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or
trapping of fingers or other body parts.
Particular attention to the nature of moving parts is required especially when assembling
installing and adjusting during set up.
Immediately after installations double-check that the work done is safe and secure. Double-
check all necessary fixings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its fixing points are made as
frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV
installer or other suitably qualified person.
v.1208 OR1BX
1
3
5
4
6
7
8
11
10
9
2
14
12
16
17
18
19
20
21
20
22
A
23 24
25 26
15
15
27 28
20
13
No PART NAME QTY
1 50mm POLE CAP (BT7057) 1
2 ACCESSORY COLLAR (BT7052) 1
3 M8 X 15 GRUB SCREW 2
4 M8 X 65 SAFETY BOLT 1
5 ACCESSORY COLLAR COVER (BT7052) 2
6 50MM POLE 0.4M LENGTH (BT7325) 1
7 WASHER (STEEL) OD60 ID10.5 T2 1
8 FOAM PAD (SELF ADHESIVE) 1
9 GLASS BASE WITH FEET (BT7322) 1
10 WASHER (PLASTIC) OD30 ID10 T2.3 1
11 M10 X 35 ALLEN SCREW 1
12 HORIZONTAL RAIL FOR 2 SCREENS (BT7320) 1
13 WASHER (PLASTIC) M8 OD19 T2.3 4
14 HANDWHEEL 4
15 M8 X 25 CAP HEAD SCREW 2
16 AVIBALL ASSEMBLY 2
17 M5 X 6 GRUB SCREW 2
18 INTERFACE PLATE (BT7588) 2
19 WASHER (STEEL) M8 OD16 T1.6 2
20 SPRING WASHER M8 5
21 M8 X 23 SQUARE END ALLEN SCREW 2
22 M8 X 12 SECURITY ALLEN SCREW 2
23 2.5MM ALLEN KEY
(FOR PART 17)
1
24 4MM ALLEN KEY
(FOR PART 3)
1
25 5MM SECURITY ALLEN KEY
(FOR PARTS 4, 21 & 22)
1
26 6MM ALLEN KEY
(FOR PART 11 & 15)
1
27 CABLE TIE MOUNT (ADHESIVE) 2
28 CABLE TIE 2
REF PART NAME QTY
A M4 X 12 ALLEN SCREW (TO FIX SCREENS) 8
PAGE 2 / 4
Suitable for loads up to 30Kg (66lbs),
15Kg (33lbs) per AViBall mount
PAGE 3 / 4
CONTINUED...
v.1208 OR1BX
Use the Allen
screw (part 11)
with the washer
(part 10) to fix the
pole (part 6) to the
glass base (part
9). Use the 6mm
Allen key (part 26)
to tighten the
screw.
1. Attach the pole to the glass base
10
11
PLEASE NOTE:
Ensure the cable management
hole/s on the pole are not visible
from the front.
READ FIRST
-Upon opening, check
all the parts are
present as shown in
the parts list.
-It is recommended
this installation is to be
carried out by two
persons.
-It is important that all
mounting screws are
used where possible.
9
2. Mount flat screens to AViBall interface
mounts
Cover work
surface and
place screens
face down.
Fix the screens
to the AViBall
mounts using the
M4 x 12 Allen
screws provided
(part A).
Care must be taken to ensure that a suitable and secure screen fixing is made. If in any
doubt, consult a suitably qualified person or an AV equiptment installer.
A
It is recommended but
not essential that a safety
bolt is set in place before
any AV equipment is
fitted.
In order to use the
provided safety bolts,
holes have to be drilled
diametrically opposite
each other so that the bolt
can pass straight through.
The centre of the hole
must be a minimum of
20mm from the end of the
pole.
3. Drill a safety bolt hole (optional)
MINIMUM
20
O10,5
Please note: this may require more than
one person.
Fit the collar (part 2) over the pole (part 6)
and position at desired height.
4. Mount the rail onto the pole To fix the position of the collar, use the 4mm Allen
key (part 24) to tighten the grub screws (part 3).
SAFETY BOLT & SPRING
WASHER ARE OPTIONAL
6
7
8
3
3
6
2
4
20
2
