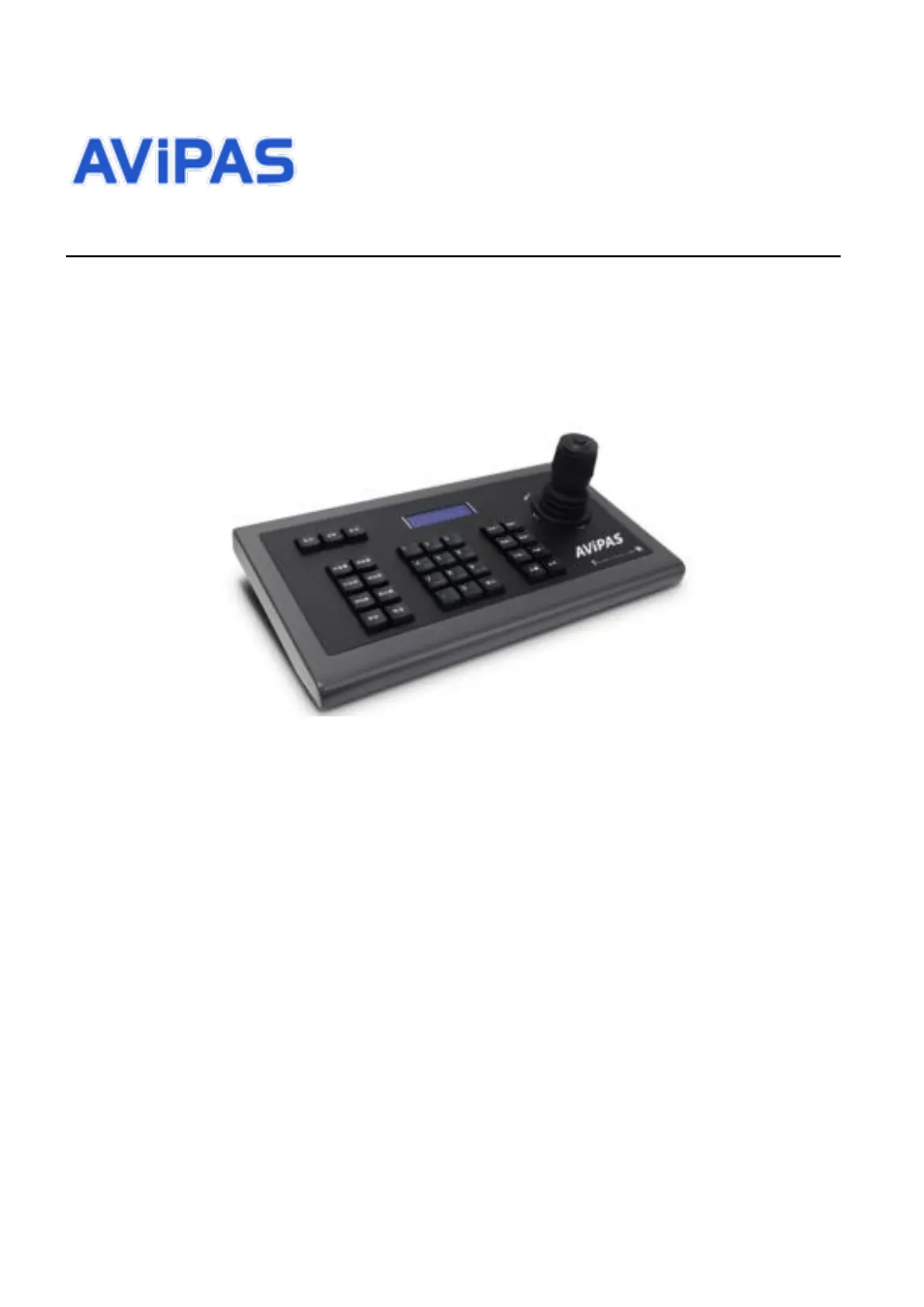

Model: AV-3104 SE
4 Serial Joystick Keyboard Controller D
User Manual
V1.0
(English)
Please read this user manual
thoroughly before using.
www.avipas.com
1
Contents
1.Brief Introduction............................................................... ................................................................................... 2 ..... .....
1.1 Notice......................................................................................................................................... .............. ..........2 .....
1.2 Functions and Features...........................................................................................................................................2
1.3 Items Included...................................................... ................................................................. ..........................2 .. .....
2.Interface Illustrations................................................................................................................................ ..... .....3 ........ ....
3.Technical Specications........ ............................................ ...................................................................... ........4 ... ....... ..... ..
4.Controller Operations ............................................................................................ ......... 5 ………........................... ........ ..
4.1 Keyboard................................................................................................................................................... .......5 .......
4.2 LCD screen display.............................................................. ............................................................. ...............5 ..... ..
4.3 Joystick control................................... ............................................................................................. ..............6 .. .......
5.Keyboard Setups......... ........................................................................................................ ......... ..........................6 .... .... ..
5.1 PTZ setup................................................................ ....................................................................... ..................6 ..... ..
5.2 System setup.................................................................................................................................... ........ ...........7 .. ..
5.2.1 Password setting............................................................................................................... .........................8 ..
5.2.2 Restore factory settings.... ...................................... .................................................. ................8 ....... ..... .......
5.3 Keyboard menu..................................................................................................................................... ................8 ..
5.4 K ard parameters................................................................................................................................ ...... 9 eybo .......
6. Troub ooting . ............ ........................................................... ................................................... ....... 9 le sh .. ............... ....... ..
7. Maintenance Service Ter ..................................................................................................................... ...... .10 ms........ .. ...
7.1 Warranty........... ................................................................................ ........................... . .......................10 .. ....... ....... ..
7.2 Repair ……………………………………………………………………………………………………………10
2
1. Product Overview
1.1 Notice
●
Please read this manual thoroughly before use, and keep it handy f or fu r reference. tu e
●
Do not use or store AV-3104 in the environment where the product is exposed to rainwater, moisture SE
vapor, salty water, oil, etc.
●
Do not place the controller close to any exothermic object for a long time.
1.2 Key features
● All metal housing, Joystick and button control
● LCD display for real-time working status
● Control for up to 255 cameras
● RS232, RS4 and RS485 serial control interface 22
● PELCO-D, PELCO-P and VISCA protocols
● 4D joystick for Pan/ Tilt/ Zoom/Lock(unlock) PTZ movements
● Variable speed control of Pan, Tilt, Zoom and Focus
● Auto/Manual for Focus Exposure and
● Selectable button sound on/o.
● Presets save, recall and clear
● OSD (on screen menu display) ON/OFF button
● BLC (Backlight compensation) ON/OFF button
● Max communication distance is up to 3940ft (1200m, w/ 0.5mm twisted pair cable).
1.3 Items included
Please check the package once get the keyboard all parts are included and are in good condi tion. you if
4-axis joystick keyboard controller
1pc
5 POS TERM Block plug, Female socket
1pc
DC-12V power adapter
1pc
RS232 cable(DB9 Female to 8pin Mini-DIN Male)
1pc
User manual
1pc
Warranty card
1pc
