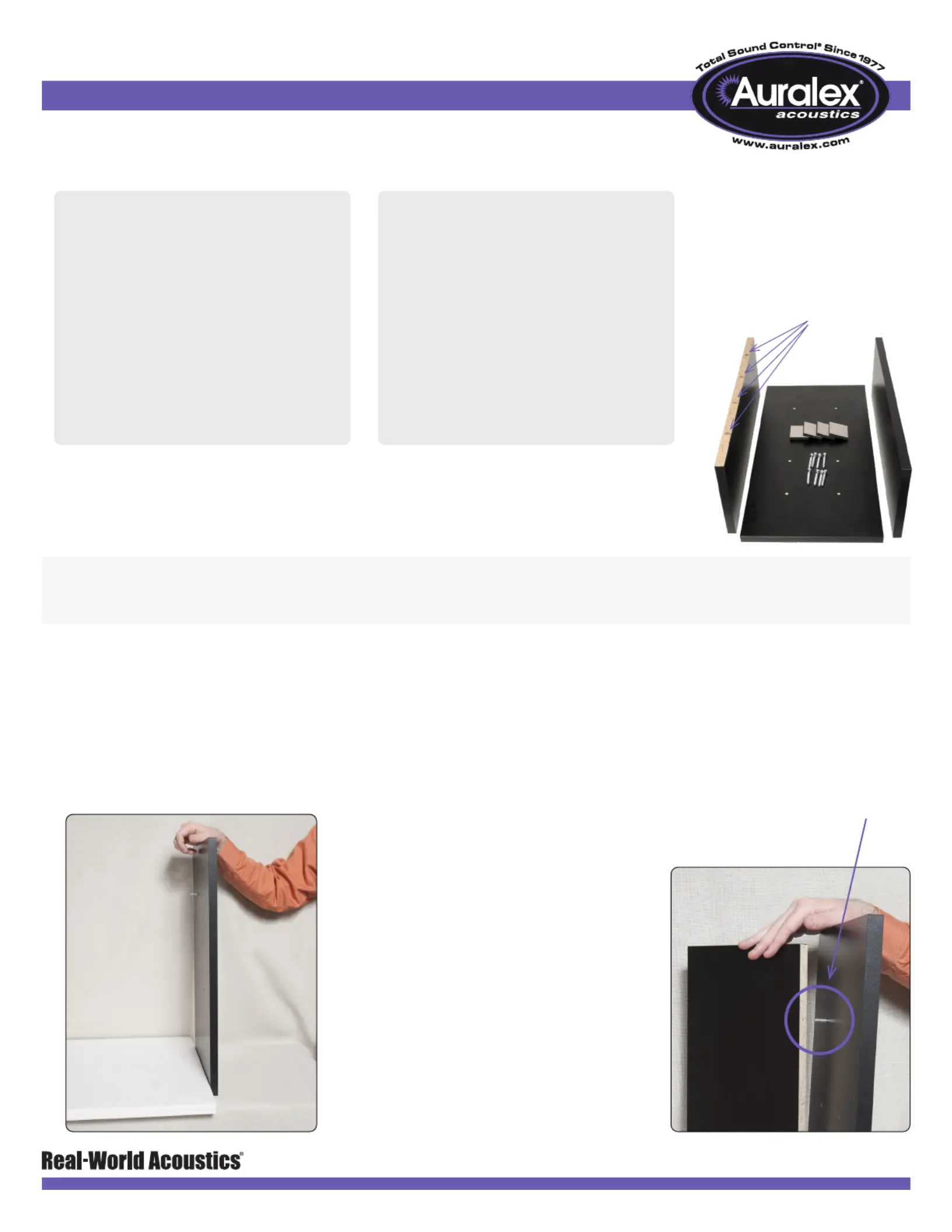

Installation & User Guide
Auralex® Acoustics, Inc.
1-800-959-3343 317-842-2600 Auralex.com| |
9955 Westpoint Drive, Suite 101, Indianapolis IN USA 46256
ProGO 26 & ProGO 44
968-213a.ProGO-26 & 44 UG (01/12/2020 - 6:28 PM)
Thank you for purchasing the Auralex® ProGO. This is a highly effective portable acoustic absorption
device that can be easily positioned anywhere in a room to achieve the desired acoustical tuning.
1. Unpack the ProGO panel assembly and set aside.
2. Retain the Expanded Polystyrene (EPS) packing
pad for stand assembly.
3. Place the 20” (50.8) cm square sheet of EPS on a flat rigid work
surface.
4. Stand the bottom panel on end with the top surface next to the EPS
pad.
5. Insert one of the supplied screws through one of the upper holes in
the base from the bottom side (the side containing the five sets of
pilot holes).
6. Position one of the upright panels on top of the EPS pad and
perpendicular to the top surface of the bottom panel.
7. Align the tip of the screw with the appropriate pilot hole in the
bottom edge of the upright panel and start by hand.
8. Insert the remaining three screws through the base panel, align
with the corresponding holes and snug by hand.
9. Tighten the screws with a power screw driver.
10. Repeat this process for the remaining upright panel.
The ProGO-26 Contains:
(1) 24” x 72” ProGO absorption panel
(1) 12” x 24” Base plate with eight through
holes. There are five sets of pilot holes on
the bottom for the addition of the optional
caster kit.
(2) 22” x 7.75” Upright panels
(8) Screws
(4) Rubber isolation feet
NOTE: The four pilot holes in the
bottom, unfinished edges of the
upright panels
TOOLS NEEDED: #3 Phillips screw driver. A power driver with adjustable clutch is recommended. Start with a lower
clutch setting to avoid stripping screw heads or the wood panels!
The ProGO-44 Contains:
(1) 48” x 48” ProGO absorption panel
(2) 12” x 24” Base plate with eight through
holes. There are five sets of pilot holes on
the bottom for the addition of the optional
caster kits.
(4) 22” x 7.75” Upright panels
(16) Screws
(8) Rubber isolation feet
(1) 20” x 20” x 1” (50.8 cm x 50.8 cm
x 2.54 cm) EPS pad
1-800-959-3343 317-842-2600 Auralex.com| |
9955 Westpoint Drive, Suite 101, Indianapolis IN USA 46256
Installation & User Guide
11. Apply the supplied rubber isolation feet to the
bottom corners of the base if casters will not be
added. Delete this step if casters will be installed
and refer to the installation guide supplied with
the ProGO caster kit.
12. Insert the ProGO panel assembly into the space between
uprights of the assembled base.
ProGO-26
ProGO-44
