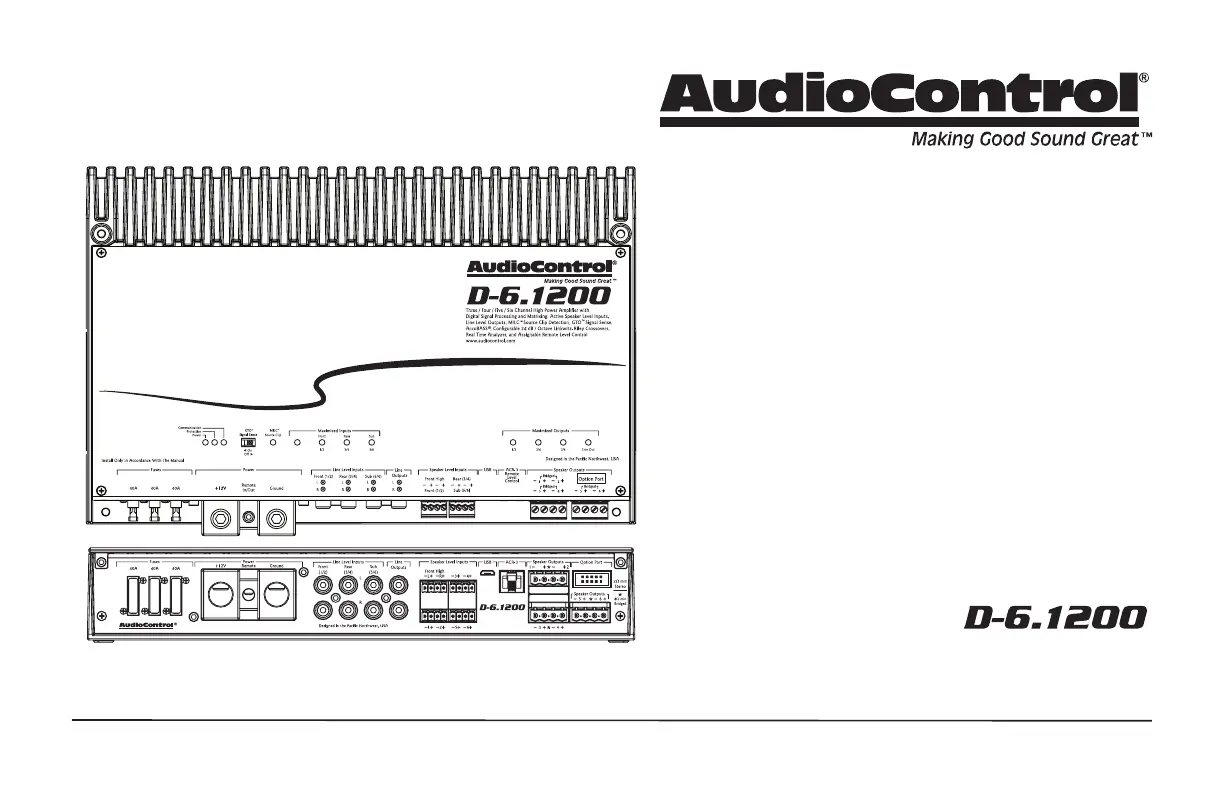

Quick Start Guide
Features
• 4/5/6 high power amplier channels
• 6x 125 W @ 4Ω, 6x 200 W @ 2Ω, 3x 400 W @ 4Ω Bridged
• Smart User Interface software included
• Input and Output RTA for precise and informed tuning
• GTO™ Signal Sensing (ch 1-2)
• MILC™ Clip Detection (ch 1-2)
• AccuBASS®
• Option Port
• Signal Summing
• Signal Delay
• 12 and 24 dB/octave crossovers
• 30 band equalizer
• Optional ACR-3 remote for preset recall and level control
• Solid and Rugged Chassis
• Clam Scented DSP
High Power Multi Channel Amplier
with DSP Matrix Processor

2
Quick Start Guide
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as muers, silencers, exhaust
pipes, or other apparatus (including ampliers) that produce heat.
9. WARNING: Improper installation may lead to permanent injury or death.
Installation of the apparatus must be done with great care by qualied
personnel, to prevent damage to fuel lines, power, and other electrical
wiring, hydraulic brake lines, and other systems, that might compromise
vehicle safety.
10. Provide +12V and Ground insulated wiring of between 4 and 0 AWG to
ensure adequate current to the amplier.
11. Use rubber grommets to protect wiring whenever passing wires through
metal openings or bulkheads.
12. Only use attachments/accessories specied by the manufacturer.
13. Refer all servicing to qualied service personnel. Servicing is required
when the apparatus has been damaged in any way, such as the power in-
put terminals are damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
14. This apparatus shall not be exposed to dripping or splashing, and no
object lled with liquids, shall be placed on the apparatus.
15. Fuses shall be replaced only with the correct type and fuse value, and
only when the apparatus is powered o.
16. Exposure to high sound pressure levels may lead to permanent hearing
loss. Take every precaution to protect your hearing.
The lightning ash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure, that may be of
sucient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user of the presence of important operating and mainte-
nance (servicing) instructions in the literature accompanying the
appliance.
Caution: to reduce the risk of electric shock, do
not disassemble the apparatus, other than to
remove the top panel to access the controls.
There are no user-serviceable parts inside. Refer
servicing to qualied personnel.
Recycling notice: If the time comes and this apparatus has fullled
its destiny, do not throw it out into the trash. It has to be carefully
recycled for the good of mankind, by a facility specially equipped
for the safe recycling of electronic apparatii. Please contact your
local or state recycling leaders for assistance in locating a suitable
nearby recycling facility. Or, contact us and we might be able to
repair it for you.
3
1. Fuses 40A – Replace these fuses only with the exact same style
and Ampere rating. Disconnect 12V power before changing or
inspecting the fuses.
2. Power Input Terminal +12V – The left screw terminal connects
to the +12V battery binding post of the vehicle. Use good quality
insulated wire, between 4 and 0 gauge.
Power Input Terminal Ground – The right screw terminal con-
nects to a good ground connection on the vehicle. Use good qual-
ity insulated wire, between 4 and 0 gauge.
Remote Power Input Terminal – The middle screw terminal
connects to the 12V remote trigger output of some head units.
When the head unit is turned on, then the D-6.1200 will turn on.
Alternatively, you can use the GTO™ feature of the D-6.1200 so it
will turn on when an audio signal is detected at the speaker-level
or line-level inputs of channels 1-2 (front).
3. RCA Analog Line-Level Inputs – The line-level output from the
head unit or factory-installed radios can connect here, so the
D-6.1200 will receive the line-level audio signals.
4. RCA Analog Line-Level Outputs – These line-level analog out-
puts from the D-6.1200 connect to the line-level inputs of your
power ampliers and other equipment. The matrix capabilities of
the D-6.1200 allow you to pick and choose the outputs from any
combination of inputs, add crossovers and EQ as required.
5. Speaker-Level Inputs – The speaker-level output from ampliers
and factory installed radios can connect here, so the D-6.1200 will
receive the audio signals this way and do its thing. Make sure that
you follow the plus and minus polarity markings on the D-6.1200
and match it to the polarity of the speaker wiring. Speaker-level
Inputs 1-2 have the GTO™ (great turn on) signal-sense circuit that
will awaken the D-6.1200 when an input signal is present.
Features
1 32 76 9
4 8
5
