Seite 1/16

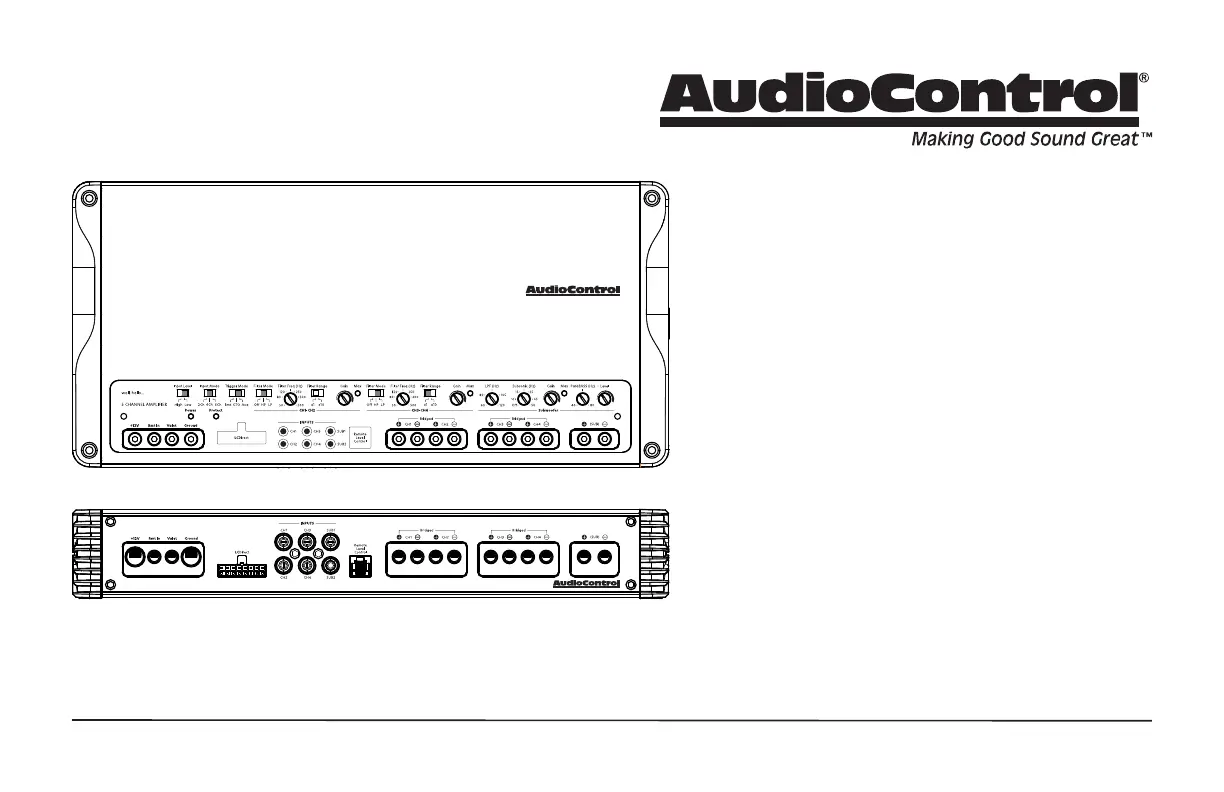

Five Channel Amplier
Quick Start Guide
Features
• 4 x 90 W @ 4 Ohms + 1 x 400 W @ 4 Ohms
• 4 x 125 W @ 2 Ohms + 1 x 600 W @ 2 Ohms
• 6 RCA Line Inputs
• GTOTM Signal Sense
• Audio Sense
• Independent -12 dB Linkwitz-Riley Crossovers
• Optional wired ACR-1 Remote Control for Subwoofer Level
• Subsonic Filter -24 dB Linkwitz-Riley
• ParaBASS® Low Frequency Contouring
Valet Mode Enabled
• LC Direct High Level Input
• Start-stop compliant
• EV compliant up to 17V
• Sleek Chassis Design
• Power House
A1100 5 TOP SS ARTWORK 2 PASS LASER ETCH
A1100.5
A1100.5
A1100.5
2
Quick Start Guide
A1100.5
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
vehicle manufacturer’s instructions.
8. Do not install near any heat sources such as muers, silencers, exhaust
pipes, or other apparatus (including ampliers) that produce heat.
9. WARNING: Improper installation may lead to permanent injury or death.
Installation of the apparatus must be done with great care by qualied
personnel, to prevent damage to fuel lines, power, and other electrical
wiring, hydraulic brake lines, and other systems, that might compromise
vehicle safety.
10. Provide +12V and Ground insulated wiring of 4 AWG to ensure
adequate current to the amplier.
11. Use rubber grommets to protect wiring whenever passing wires through
metal openings or bulkheads.
12. Only use attachments/accessories specied by the manufacturer.
13. Refer all servicing to qualied service personnel. Servicing is required
when the apparatus has been damaged in any way, such as the power in-
put terminals are damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
14. This apparatus shall not be exposed to dripping or splashing, and no
object lled with liquids, shall be placed on the apparatus.
15. Fuses inside the fuse holder at the battery shall be replaced only with the
correct type and fuse value, and only when the apparatus is powered o.
16. Exposure to high sound pressure levels may lead to permanent hearing
loss. Take every precaution to protect your hearing.
The lightning ash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the products enclosure, that may be of
sucient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user of the presence of important operating and mainte-
nance (servicing) instructions in the literature accompanying the
appliance.
Caution: to reduce the risk of electric shock, do
not disassemble the apparatus, other than to
remove the top panel to access the controls.
There are no user-serviceable parts inside. Refer
servicing to qualied personnel.
Recycling notice: If the time comes and this apparatus has fullled
its destiny, do not throw it out into the trash. It has to be carefully
recycled for the good of mankind, by a facility specially equipped
for the safe recycling of electronic apparatii. Please contact your
local or state recycling leaders for assistance in locating a suitable
nearby recycling facility. Or, contact us and we might be able to
repair it for you.
3
A1100.5
1. Power Input Terminal +12V This screw terminal connects to
the +12V battery binding post of the vehicle. Use quality insulated
4 AWG wire.
2. Remote Power Input Terminal – This screw terminal connects to
the 12V remote trigger output of some head units. When the head
unit is turned on, then the A1100.5 will turn on.
3. Valet Mode Connection - This screw terminal connects to an op-
tional switch to lower the max volume to 25% when switched on.
4. Power Input Terminal GroundThis screw terminal connects to
a good ground connection on the vehicle. Use quality insulated 4
AWG wire.
5. LC Direct The speaker-level output (20V MAX) from ampliers
and factory installed radios can connect here. Do not use these
inputs if you are using the RCA line-level inputs.
6. RCA Analog Line-Level Inputs The line-level output from an
aftermarket head unit can connect here. Do not use these inputs if
you are using the speaker-level inputs (LC Direct).
7. Remote Level Control (optional) This port connects to the
ACR-1 remote level control.
8. Speaker-Level Output TerminalsThese screw terminals
connect with speaker wire to your loudspeakers. Make sure that
the average combined speaker impedance does not dip below
2 Ohms, or 4 Ohms in bridged mono mode.
9. Subwoofer-Level Output TerminalsThese screw terminals
connect with speaker wire to the subwoofer, or multiple subwoof-
ers. Make sure that the speaker impedance does not dip below 2
Ohms.
Connection Panel Features
1 2 3 4 5 6 7 8 9
