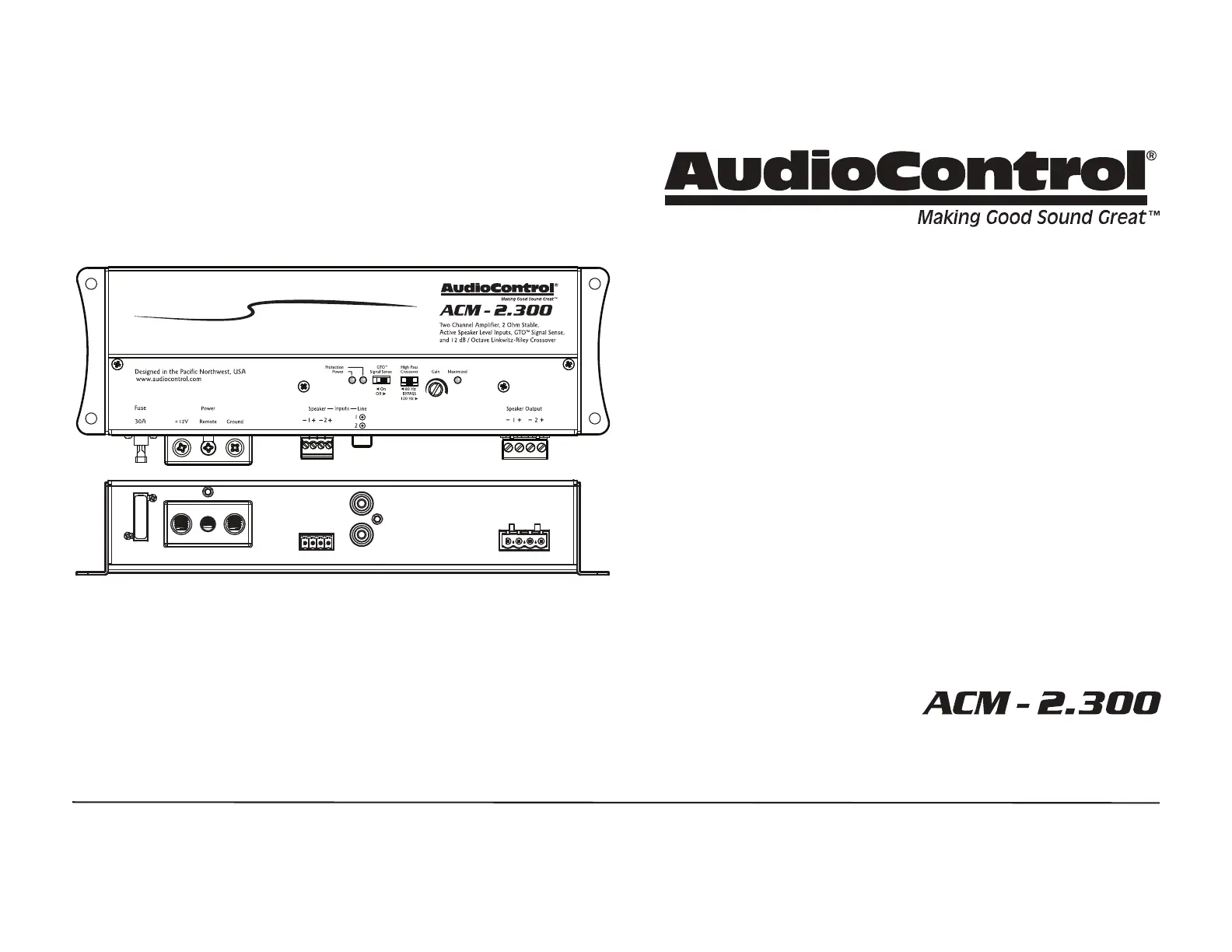

COMPACT HIGH POWER 2-CHANNEL AMPLIFIER
Quick Start Guide
Features
• Compact High Power 2-Channel Amplier
• High Current Design
• 2x100 Watts @ 4 Ohms, 2x150 Watts @ 2 Ohms
• 1x300 Watts @ 4 Ohms, Bridged Mono
• 12 dB/Octave Linkwitz-Riley Alignment Crossover
• GTO™ Signal Sense (Great Turn On)
• 2 Line-Level RCA Inputs
• 2 Active Speaker-Level Inputs for OEM integration
• Filled with home-grown audio goodness
2
Quick Start Guide
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as muers, silencers, exhaust
pipes, or other apparatus (including ampliers) that produce heat.
9. WARNING: Improper installation may lead to permanent injury or death.
Installation of the apparatus must be done with great care by qualied
personnel, to prevent damage to fuel lines, power and other electrical
wiring, hydraulic brake lines, and other systems, that might compromise
vehicle safety.
10. Provide +12V and Ground wiring of sucient size to ensure adequate
current to the amplier. For the ACM-2.300 this means 8 gauge wire or
thicker.
11. Use rubber grommets to protect wiring whenever passing wires through
metal openings or bulkheads.
12. Only use attachments/accessories specied by the manufacturer.
13. Refer all servicing to qualied service personnel. Servicing is required
when the apparatus has been damaged in any way, such as the power in-
put terminals are damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
14. This apparatus shall not be exposed to dripping or splashing, and no
object lled with liquids, shall be placed on the apparatus.
15. Fuses shall be replaced only with the correct type and fuse value, and
only when the apparatus is powered o.
16. Exposure to high sound pressure levels may lead to permanent hearing
loss. Take every precaution to protect your hearing.
The lightning ash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure, that may be of
sucient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user of the presence of important operating and mainte-
nance (servicing) instructions in the literature accompanying the
appliance.
Caution: to reduce the risk of electric shock, do
not disassemble the apparatus, other than to
remove the top panel to access the controls.
There are no user-serviceable parts inside. Refer
servicing to qualied personnel.
Recycling notice: If the time comes and this apparatus has fullled
its destiny, do not throw it out into the trash. It has to be carefully
recycled for the good of mankind, by a facility specially equipped
for the safe recycling of electronic apparatii. Please contact your
local or state recycling leaders for assistance in locating a suitable
nearby recycling facility. Or, contact us and we might be able to
repair it for you.
3
1. Fuse 30A – Replace the fuse only with the exact same style and
Ampere rating. Disconnect 12V power before changing or inspect-
ing the fuse.
2. Power Input Terminal +12V – This screw terminal connects to
the +12V battery binding post of the vehicle. Use quality insulated
wiring of the recommended wire gauge, such as wire gauge 8 or
thicker. Thinner wire may cause an overheating hazard due to the
large currents involved.
3. Remote Power Input Terminal – This screw terminal connects
to the 12V remote trigger output of some head units. When the
head unit is turned on, then the ACM-2.300 amplier will turn on.
Alternatively, you can use the GTO™ feature of the amplier so it
will turn on when an audio signal is detected at the speaker-level
or line-level inputs.
4. Power Input Terminal Ground – This screw terminal connects to
a good ground connection on the vehicle.
5. Speaker-Level Inputs – The ACM-2.300 amplier is supplied with
a standard 4-conductor plug that allows for easy installation and
removal. The speaker-level output from ampliers and factory
installed radios can connect here. Make sure that you follow
the plus and minus polarity markings on the ACM-2.300 and
match it to the polarity of the speaker wiring. Do not use the RCA
Line-level inputs if you are using the speaker-level inputs.
Connection Panel Features
1 2 3 4 5 6 7
