AtomoSynth Koe M6.
Analog semi modular synthesizer.
Thank you for purchasing the AtomoSynth, KOE M6 desktop edition. Analog semi modular
synthesizer. In order to enjoy long and trouble free use, please read this manual carefully and use the
instrument correctly. After reading this manual, please keep it for later reference.
Precautions
•Using the unit in the following locations can result in a malfunction.
•In direct sunlight.
•Locations of extreme temperature or humidity.
•Excessively dusty or dirty locations.
•Locations of excessive vibration.
•Close to magnetic fields.
•Please use the included power supply, if you are forced to replace it, use a 15V DC. 2A 5.5mm
barrel plug center positive power supply.
•To avoid breakage, do not apply excessive force to the switches or controls.
•If the exterior becomes dirty, wipe it with a clean, dry cloth.
•Do not use liquid cleaners such as benzene or thinner or cleaning compounds or flammable
polishes.
•Keep foreign matter out of your equipment
•Never set any container with liquid in it near this equipment. If liquid gets into the equipment, it
could cause a breakdown, fire, or electrical shock.
•Be careful not to let metal objects get into the equipment.
Basic operation:
•Connect the included power supply to mains and the power supply output to the Koe power
input.
•Turn on the unit by sliding the power switch to the right.
•Please avoid connecting the power supply to mains while the power switch is in the “on”
position (to the right).
•Connect the “AUDIO” output to your mixer or amplifier. Note that the audio output is not
intended to be used with headphones.
•Connect a voltage source (e.g. sequencer, keyboard)to the 1V/Oct input and a gate source to
the Gate input.
•If the Delay module does not start when the unit is turned on, disconnect any cable connected
to the Delay_CV input connector, turn off and then turn the unit on again.
MIDI channel configuration.
•Connect a midi controller (keyboard, sequencer, computer with a usb to midi adaptor) to the
“MIDI” input using the included breakout cable adaptor.
•Push the “Midi Learn” button once, the LED will light.
•Send a midi note from your controller, the red LED will go dark and the Koe will set at the same
midi channel to the controller.
MIDI CC configuration.
•Connect a midi controller (keyboard, sequencer, computer with a usb to midi adaptor) to the
“MIDI” input using the included breakout cable adaptor.
•Push the “Midi Learn” button once, the LED will light.
•Move the desired knob or control in your midi controller, the red LED will go dark and the CC
output will be configured to that midi cc control.
MIDI synchronization of the random generator module.
•Push the “Midi Learn” button for one second until the mode LED flashes 3 times with white
light. The random generator will be synchronized with the incoming midi clock, and the Rate
knob becomes a clock rate multiplier.
•To reverse it and return to the internal clock, push the “Midi Learn” button for one second until
the mode LED lights in white continuously for one second.

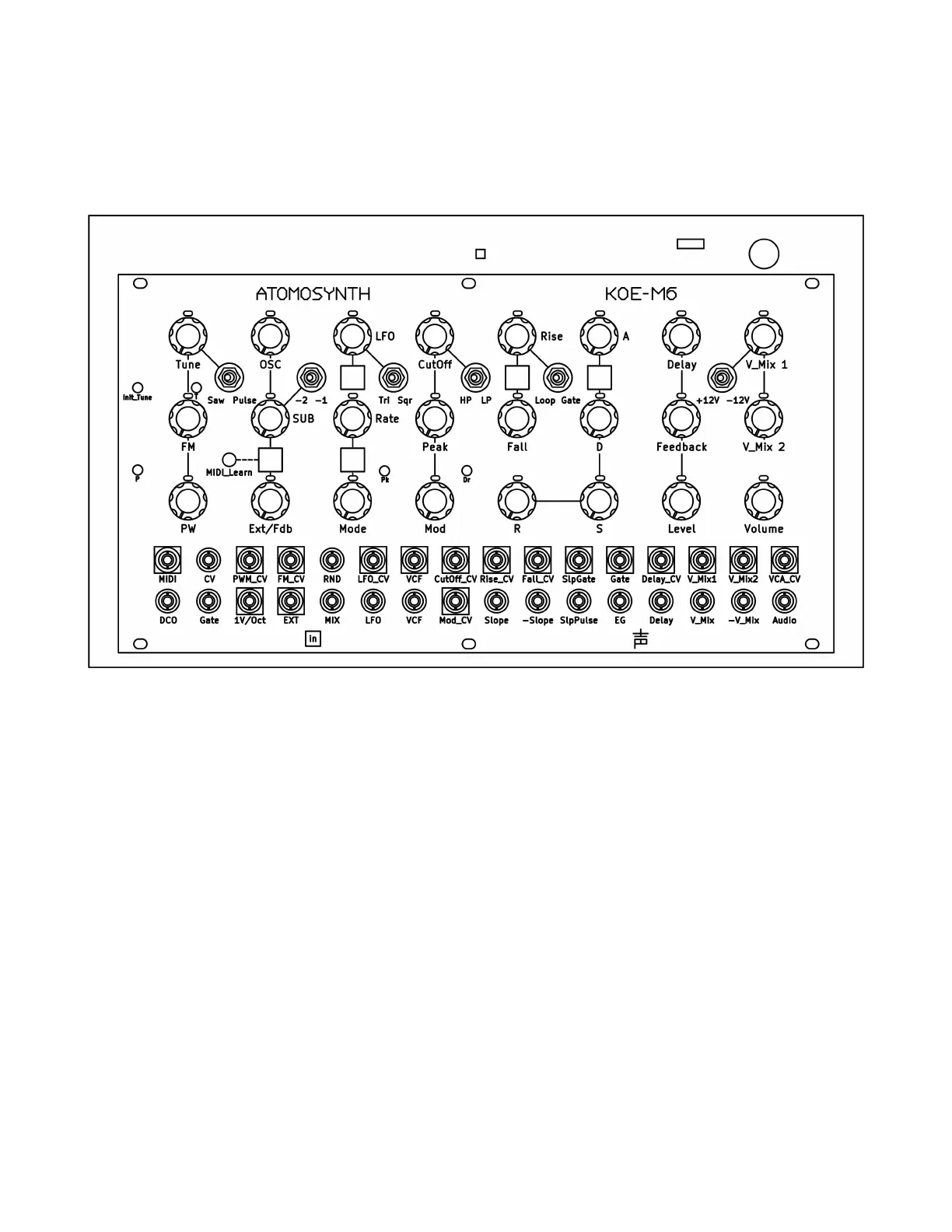

Internal Module Controls and connectors:
Oscillator:
•Tune knob: It adjusts about one octave above or below the central pitch.
•Wave switcher: it sets the output of the oscillator to Saw or Pulse waveform.
•FM knob: It adjusts the level of frequency modulation applied to the oscillator, it is internally
connected to the LFO.
•PW knob: it adjusts the width of the pulse waveform.
•PWM_CV input connector: it adjusts the pulse width by voltage.
