Seite 1/9

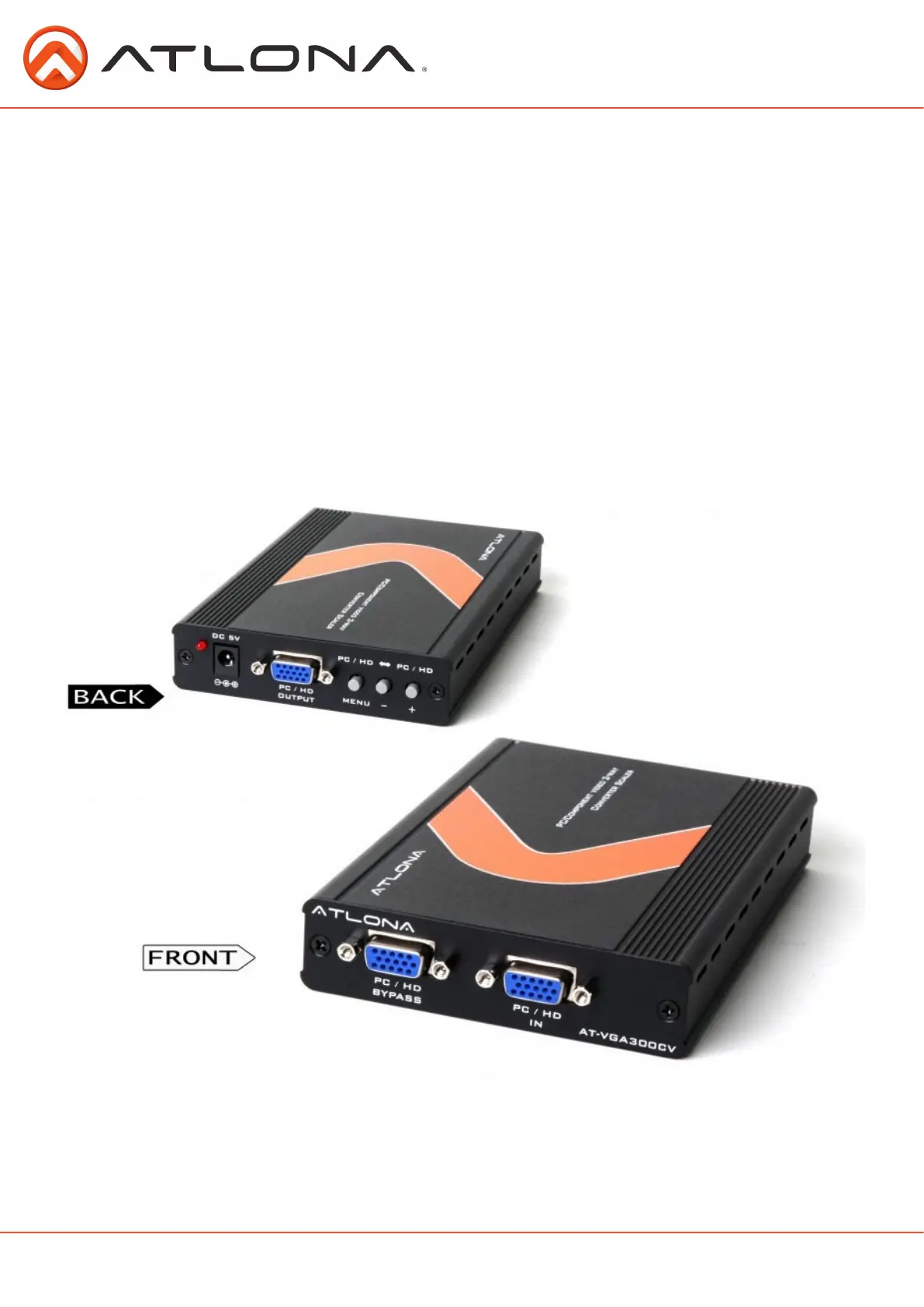

AtlonA
1. Introduction .................................................. 1
2. Package Includes .................................................. 1
3. Features .................................................. 1
4. Speciî‚¿cation .................................................. 1
5. Panel Descriptions .................................................. 2
5.1 Front Panel .................................................. 2
5.2 Rear Panel .................................................. 2
6. OSD Operation .................................................. 3
7. Connection Diagram .................................................. 3
7.1. PC to Component Video .................................................. 3
7.2. Component video to PC .................................................. 4
8. Support Resolution .................................................. 4
9. Resetting the Unit .................................................. 4
10. Safety Information .................................................. 5
11. Warranty .................................................. 6
12. Atlona Product Registration .................................................. 7
1
The Atlona AT-VGA300CV is a very advanced scaler box, designed to convert any PC/Laptop input to
component video or Component video input to VGA output. The Atlona scaler is capable of accepting a
wide-range of PC or HDTV resolutions up to WUXGA/1080P. This scaler/converter has a comprehensive
on-screen menu which allows user to select from a variety of resolutions, picture adjustments ets.
• 1x AT-VGA300CV
• 1x 5v Universal Power Supply
• 1x 3ft VGA to Component Breakout Cable
• 1x User Manual
• Scales any PC or HDTV resolutions to PC or HDTV resolution up to WUXGA or 1080p
• Provides output picture adjustment on contrast, brightness, hue, saturation, sharpness, rgb (color
tone) level and aspect ratio size.
• Has a loop-out for connecting to a local monitor.
• Supports high resolution output:
PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA
SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p.
• Converts PC (VGA) signal from PC or Laptop to Component Video
• Converts Component Video signals from DVD’s, Video Games ets. to VGA inputs on Computer
monitors, Projectors, Plasma Screens
Input ports 1 x HD15 (Could be used for PC or Component Video)
Output ports 1 x HD15 (Could be used for PC or Component Video)
Loop-out port 1 x HD15 (Could be used for PC or Component Video)
Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certiî‚¿ed)
Dimensions (mm) 157(d) x 102(w) x 25(h)
Weight(g) 332
Chassis Material Aluminum
Silk Skin Color Black
Operating Temperature Operating from 0°C ~ 48°C
