Seite 1/12
1

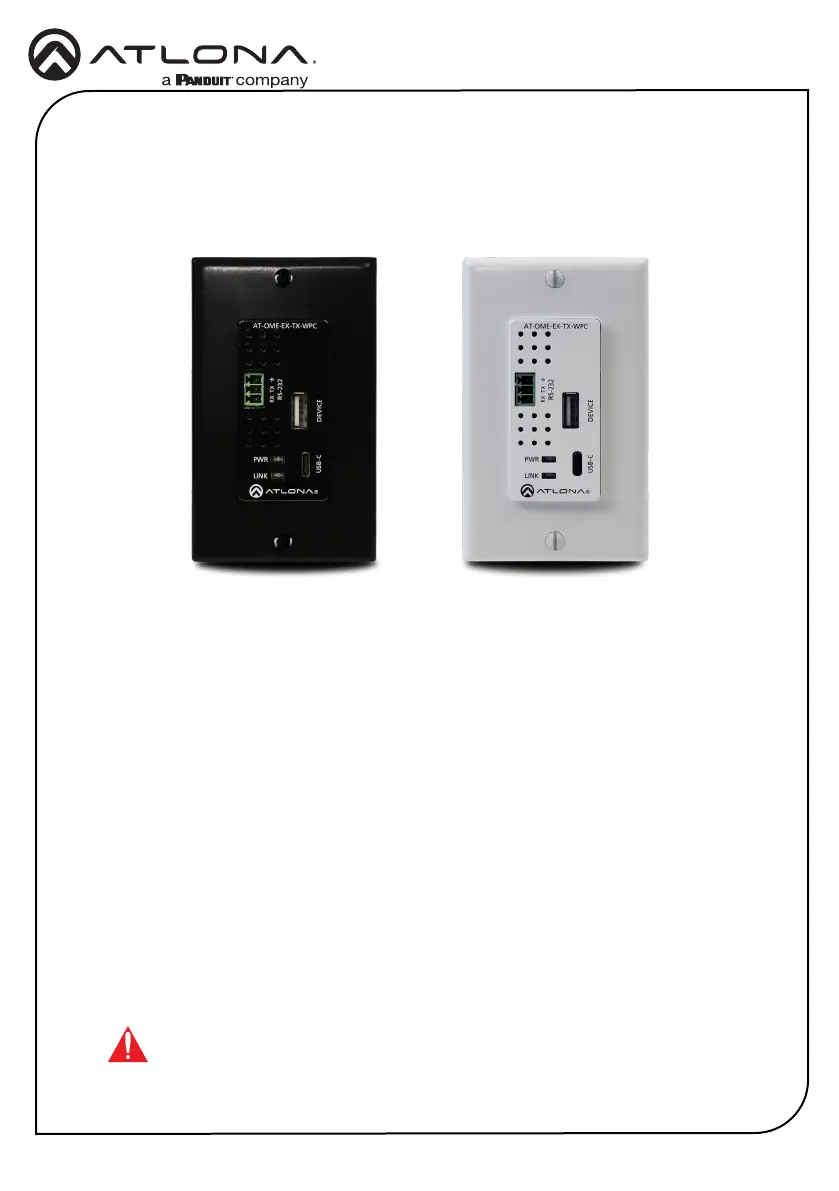

Installation Guide
AT-OME-EX-TX-WPC
Omega™ 4K/UHD
Wallplate Transmitter for USB-C with HDBaseT Output
and USB
AT-OME-EX-TX-WPC
The Atlona AT-OME-EX-TX-WPC is an HDBaseT transmitter with USB-C input. It sends
video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330
feet (100 meters). It features a US one-gang, Decora-style wallplate form factor, and includes
interchangeable black and white wallplates and faceplates. Part of the Omega™ Series of
integration products for modern AV communications and collaboration, the OME-EX-TX-WPC
is HDCP 2.2 compliant and extends RS-232 control signals. The USB-C input is ideal for AV
interfacing with newer Mac®, Chromebook™, and Windows® PCs, as well as smartphones
and tablets. With a matching HDBaseT receiver, the integrated USB extension addresses the
challenge of connecting between USB devices at remote locations, and is ideal for software
video conferencing and touch or interactive displays. The OME-EX-TX-WPC includes a PC host
interface over USB-C, plus a USB 2.0 interface for a peripheral device such as a speakerphone,
microphone, or keyboard and mouse*. This transmitter is ideal for use with Omega Series
receivers as well as switchers with HDBaseT inputs.
* The AT-OME-EX-TX-WPC is not compatible with the AT-UHD-HDVS-300 system for extending
USB.
IMPORTANT: Visit http://www.atlona.com/product/AT-OME-EX-TX-WPC for
the latest îś±rmware updates and User Manual.
1 x AT-OME-EX-TX-WPC
1 x White faceplate
1 x White Decora® wallplate
1 x Black faceplate
1 x Black Decora® wallplate
4 x Mounting screws
1 x USB-C to USB-C cable, 2 meters
1 x Installation Guide
Package Contents
2
Installation Guide
AT-OME-EX-TX-WPC
LINK
PWR
USB-C DEVICE
RX TX
RS-232
AT-OME-EX-TX-WPC
HDBaseT
OUT
6
2
1
3
54
1 RS-232
Connect an RS-232 control system to this
port. Connect the included 3-pin captive
screw block to this receptacle. Refer to
RS-232 (page 3) for more information.
Note that this port is covered by a plate
and must be removed to expose the RS-
232 port.
2 DEVICE
Connect a USB device, such as a
speakerphone, to this port. This port
provides 5 W of power.
3 PWR
This LED indicator glows solid green
when the unit is powered. Refer to
LED Indicators (page 6) for more
information.
4 USB-C
Connect a USB-C cable from this port to
a UHD/HD source.
5 LINK
This LED indicator glows solid amber to
indicate that the HDBaseT signal integrity
is good. Refer to LED Indicators (page
6) for more information.
6 HDBaseT OUT
Connect a category cable from this port to
the port of the AT-OME-EX-HDBaseT IN
RX or other PoE-compatible receiver.
3
Installation Guide
AT-OME-EX-TX-WPC
LINK
PWR
USB-C DEVICE
232
AT-OME-EX-TX-WPC
2. Use wire strippers to remove a portion of the RS-232 cable jacket.
3. Remove at least 3/16” (5 mm) from the insulation of the RX, TX, and GND wires.
4. Insert the TX, RX, and GND wires into correct terminal using the included 3-pin captive
screw connector.
5. Connect the opposite end of the cable to the control system.
NOTE: Typical DE-9 connectors use pin 2 for TX, pin 3 for RX, and pin 5 for
ground. On some devices functions of pins 2 and 3 are reversed.
RS-232
GND
RX
TX
DE-9 (RS-232) port
The AT-OME-EX-TX-WPC provides an port which allows communication between a RS-232
control system and an RS-232 device. This step is optional.
1. Gently remove the RS-232 cover from the faceplate using the tip of a small regular
screwdriver.
LINK
PWR
USB-C DEVICE
RX TX
RS-232
AT-OME-EX-TX-WPC
RS-232 cover
