Seite 1/12
AtlonA
1. Introduction ................................................................. 1
2. Features ................................................................. 1
3. Package Contents ................................................................. 1
4. Operation Controls and Functions ................................................................. 2
4.1 Front Panel ................................................................. 2
4.2 Rear Panel ................................................................. 3
4.3 OSD Operation ................................................................. 4
5. Connection and Installation ................................................................. 4
................................................................. 5
................................................................. 5
6.2 Support Resolution ................................................................. 5
7. Resetting the Unit .................................................................. 5
8. Safety ................................................................. 6
9. Warranty ................................................................. 7
10. Atlona Product Registration ................................................................. 8

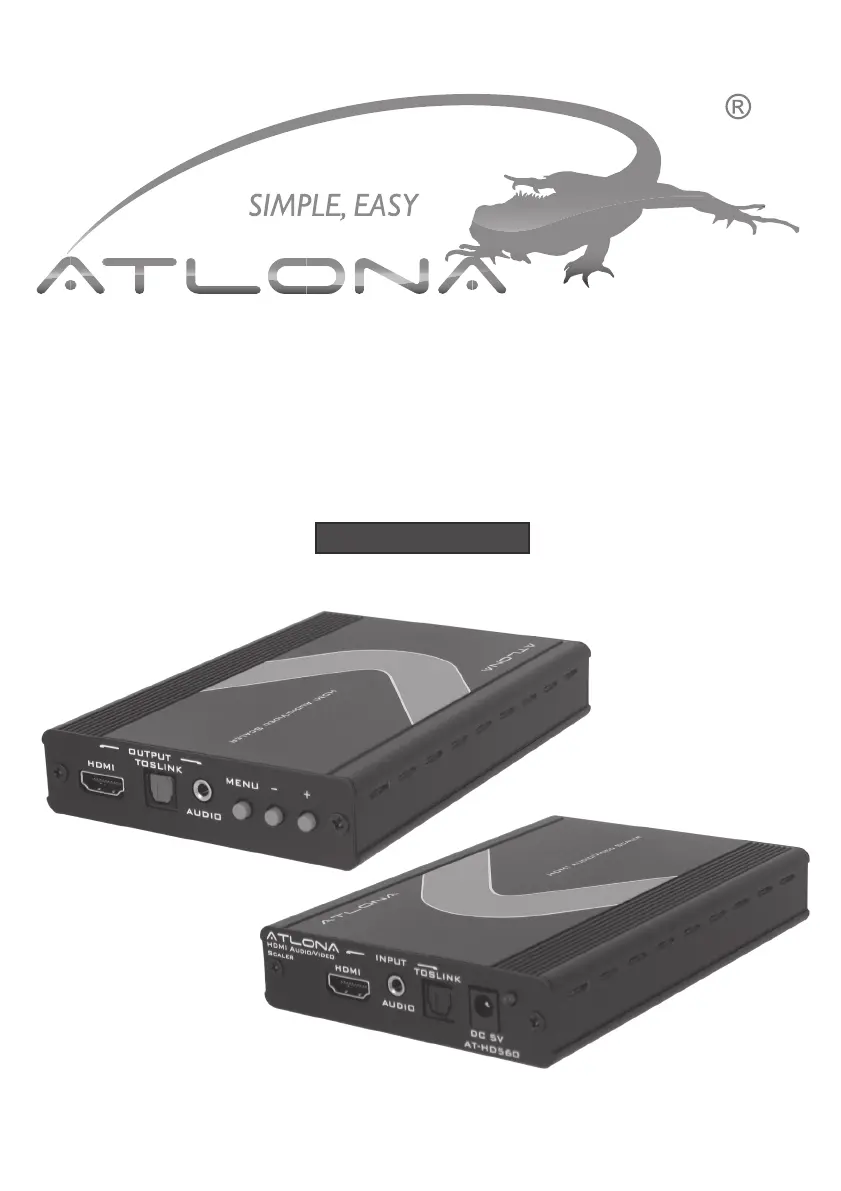

This is a compact Atlona AT-HD560 HDMI™ to HDMI™ Scaler Box. It accepts HDMI™ input
with a separate Toslink or analog audio and scale it to HDMI™ (at a number of selectable
resolutions) with additional Toslink and analog audio output.
This Scaler Box has a comprehensive OSD menu that allows user to select a variety of out-
put resolutions and adjust for best picture quality. It is ideal for using between incompatible
HDMI™ source and display by changing picture resolution and frame rate of HDMI™ source
to match the native resolution of the HDMI™ display.
1. HDMI™ to HDMI™ Scaler Box
2. 5VDC Power Supply Adaptor
3. Operation Manual
1
1. HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant.
2. Scales any PC (VGA ~ WUXGA) /HD (480i ~ 1080p)resolutions to/from another PC/HD resolutions.
3. Automatically detect the factory setting of the connected display and output the corre
sponding resolution and refresh rate, when the NATIVE output is selected.
4. Supports 50/60Hz frame rate conversion.
5. Supports 3-D motion video adaptive, 3-D de-interlacing, and 3:2 / 2:2 pull-down detection
and recovery.
6. Provides output picture adjustment on contrast, brightness, hue, saturation, sharpness,
RGB level, and scan size.
7. Supports high resolution input/output:
PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA
HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, and 1080p
8. Supports digital and analog audio input and output.
9. Image of the color bar:
“If user is seeing a color bar, it means that there is no input signal present. The color bar will
be active for 15min and after the Atlona device will go to the stand-by mode and disconnect
from the display. As soon as incoming video signal will resume, the Atlona device will
establish a new connection with the display”
