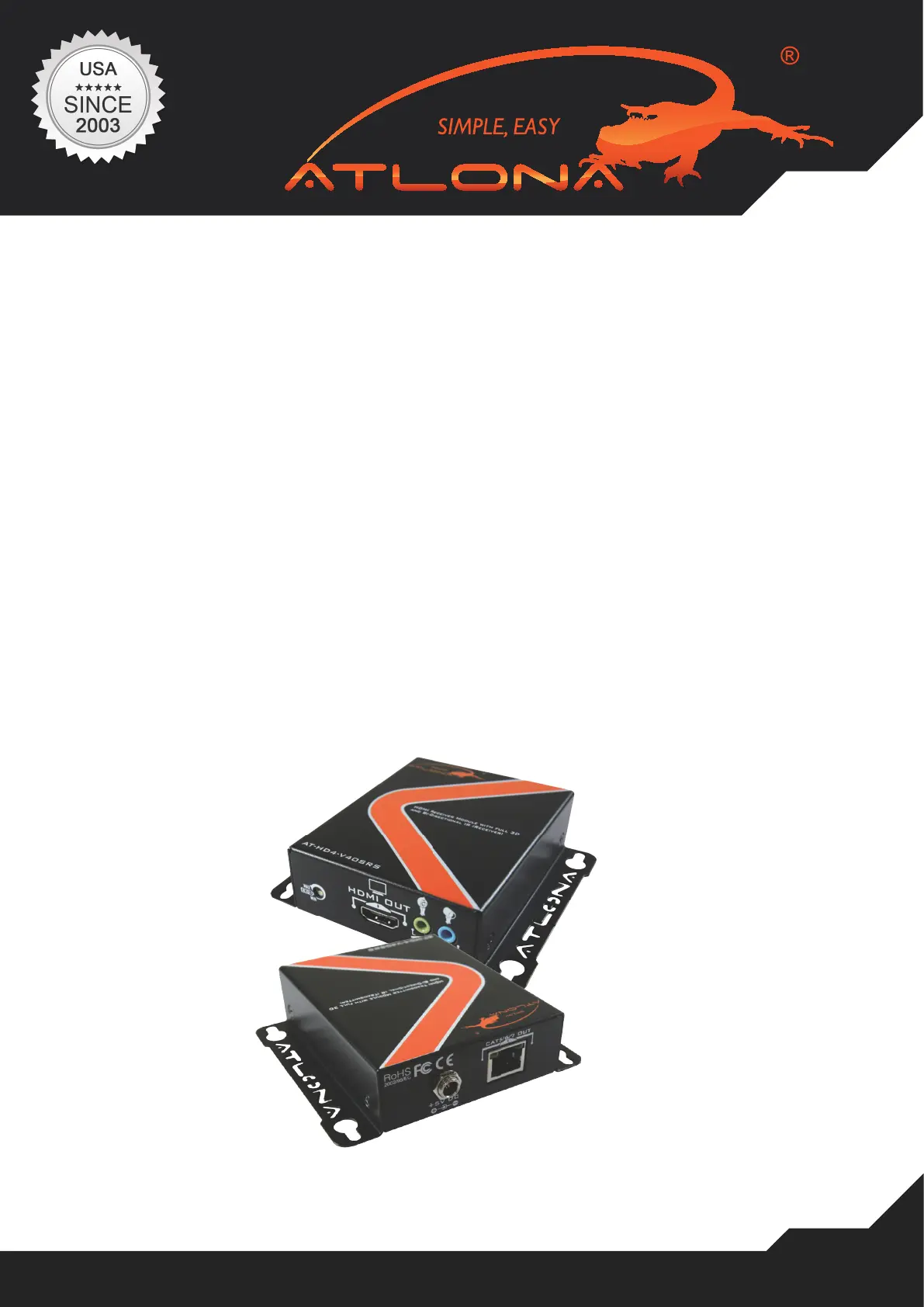

Atlona HDMI with Bi-Direction IR
Extender over Single CAT5, 6, and 7
up to 130 Feet
AT-HD4-V40SRS
User Manual
1. Introduction .................................................. 3
2. Package Contents .................................................. 3
3. Features .................................................. 3
.................................................. 4
5. Panel Descriptions .................................................. 5
5.1. Transmitting Module .................................................. 5
5.1.1. Front Panel .................................................. 5
5.1.2. Rear Panel .................................................. 5
5.2. Receiving Module .................................................. 6
5.2.1. Front Panel .................................................. 6
5.2.2. Rear Panel .................................................. 6
6. IR Pass-through .................................................. 7
6.1. IR Extenders .................................................. 7
6.2. IR Sockets .................................................. 7
.................................................. 7
6.4. Supported IR Data Format .................................................. 8
7. Installation .................................................. 8
8. EDID Learning .................................................. 8
.................................................. 9
9.1. HDMITM .................................................. 9
9.2. CAT5 [RJ45] .................................................. 9
10. Connection Diagram .................................................. 10
11. Performance Guide .................................................. 10
12. Notice .................................................. 11
13. Safety Information .................................................. 12
14. Warranty .................................................. 13
15. Atlona Product Registration .................................................. 14
Table of Contents
INTRODUCTION
The Atlona AT-HD4-V40SRS is an HDMI with Bi-Directional IR Extension Kit. The extenders are designed to
handle full 1080p up to 130ft and 1080i/720p up to 200ft. The HD4-V40SRS are capable of supporting very high
bandwidth and there are able to handle all 7 x 3D formats.
The Atlona HD4-V40SRS are based on the latest HDMI technology and therefore are capable of fully supporting
HDCP 2.0, Deep Color and DTS-HD or Dolby TrueHD audio. In addition, AT-HD4-V40SRS are also equipped
with bi-directional IR pass-through, which allows users to control the sources from the remote location as well as
sending IR signal from a control system to a remote location. Perfect for Control4, RTI, HAI or any other control
system users or dealers.
The AT-HD4-V40SRS includes two modules: transmitting module and receiving module, where the transmitter
module converts HDMI with IR to RJ45 and the receiver module converts it back to HDMI and IR. The receiver
module is featured with 8-step equalization control, to allow users to adjust the equalization strength to the re-
ceived HDMI signals accordingly, and therefore optimize the transmission distance between source and display.
PACKAGE CONTENTS
• 1x AT-HD4-V40SRS (Transmitting and Receiving Modules)
• 1x IR blaster
• 1x IR receiver
• 2x 5V power supply unit
• 1x User’s manual
FEATURES
• Extends the transmission range up to 130ft (40m) at full 1080p or 1920x1200 or 200ft (60M) at 1080i/720p
• Supports all latest Audio formats such as Dolby True HD, DTS-master, etc…
• 3D Compatible (all 7 formats), including the most popular e.g., Frame Packing, Side-by-Side, Top-to-Bottom,
etc...
• 7 x Embedded EDID functions and Learning EDID function available. Learning function allows user to trick
the source to think that it connected to the display rather than going though extenders.
a lot of EDID issues which may happened in a complicated installations with different components involved.
• Supports Bi-Directional IR pass-through up to 60Khz, allows users not only send IR signals from remote
location but also to remote location from a control system. Great for Control4 or RTI installers.
• Supports VESA DDC and Hot-Plug Detect (HPD)
• HDCP compatible
• DVI 1.0 compliant, user will need to use DVI/HDMI adapter
• Supports Deep Color
• Allows cascading
• Wall mounting housing design for easy and robust installation
• Locking Power connector
* The claimed transmission distance is subject to the grade of installed cable(s), source devices and displays.
* For Cat.X transmission, the cable(s) should be solid, not stranded. Any keystone jack along the transmission
3
