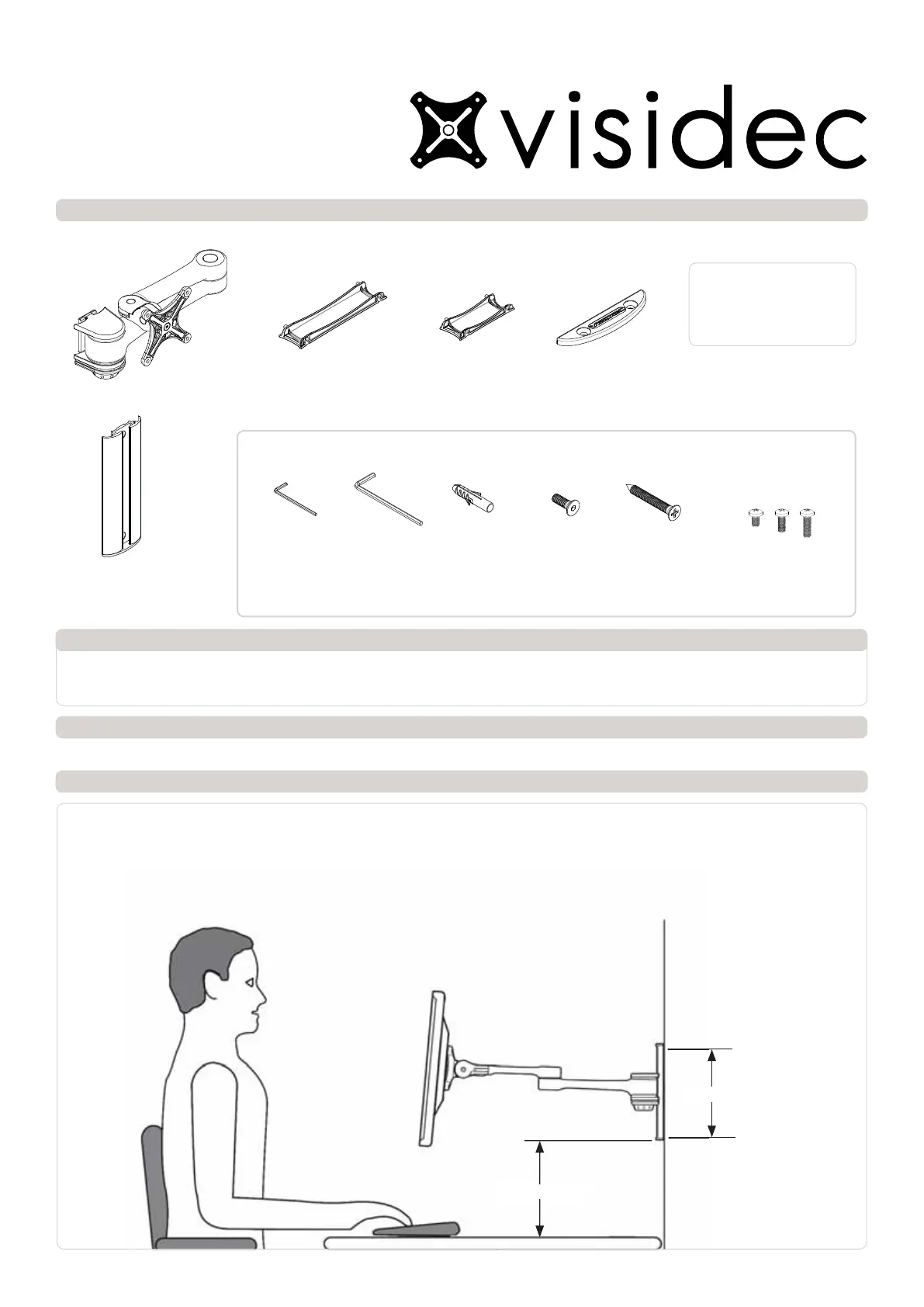

Installation Instructions
VF-AT-W
Component Checklist
Focus | Articulated Arm | Wall
M4x10/12/16mm (x4)
Phillips Head
Mounting Screws
Primary Arm
Cable Cover
Secondary Arm
Cable Cover
End CapArm Assembly
Wall Plate
5mm
Allen Key
Nylon Anchor
Plug (x2)
M4 x 12mm
Countersunk
Screw (x2)
M6 x 50mm
Countersunk
Screw (x2)
2.5mm
Allen Key
Display Mounting
Screws
HARDWARE
! IMPORTANT - Install Visidec Focus Articulated Arm Wall as per installation instruction.
! This product supports a maximum load of 8kg (17.6lbs).
! The manufacturer accepts no responsibility for incorrect installation.
IMPORTANT INFORMATION:
Step 1. Check Components
Check what you have received against the component checklist and hardware above.
Step 2. Position Wall Plate
As a guide, it is recommended that the bottom of the Wall Plate be positioned approximately 140mm (5 1/2”)
above the desktop.
For further Ergonomic Guidelines, please refer to the end of the document.
Note: The Focus
Articulated Arm Wall
provides vertical
adjustment of 128mm.
Tools Required:
• Power Drill
• 5.5mm (1/4”) Drill Bit
• 8mm (5/16”) Drill Bit
• Phillips Head Screwdriver
128mm (5”)
140mm (5 1/2”)
Step 3. Installing the Wall Plate
Step 4. Mount Arm Assembly
3.1 Choose the appropriate installation procedure depending on your wall type.
4.1 Unlock the Locking Dial before
inserting the Arm Assembly into the
Wall Plate.
4.2 Slide the Arm Assembly to the
preferred height and lock to secure
the arm.
Lock
Unlock
4.3 Secure the End Cap
with the supplied M4x12mm
Countersunk Screws and
2.5mm Allen Key.
2.5mm Allen Key
End Cap
Wall Plate
Nylon
Anchors Timber
Stud
8mm (5/16”)
Hole 5.5mm
(1/4”) Hole
M6 x 50mm
Countersunk
Screw
M6 x 50mm
Countersunk
Screw
Wall Plate
Arm Assembly
Locking Dial
Locking Dial
Wall Plate
M4x12mm
Countersunk Screw
Masonry Timber Stud
Step 5. Mount Display
Step 6. Adjust Height
M4 Phillips Head
Mounting Screws
Option 1: 75x75mm Hole Pattern 100x100mm Hole PatternOption 2:
Note: Extend Arms to
achieve 100x100mm
hole pattern.
5.1 Unlock Lock Dial ensuring both Screen
and Arm Assembly are supported.
5.2 Lift/Lower Screen to the desired height.
Move both Screen and Arm assembly together.
Step 7. Cable Management
7.1 After plugging in your cables, install the Cable Covers.
A. Insert Cable Covers up
into Lock Slots.
B. Push Cable Covers away
from Elbow Joint to secure
in place.
Elbow Joint
‘click’
‘click’
Lock Slot
5.3 Lock the Lock Dial firmly.
Note: Ensure enough cable
slack is given to allow for
movement.
