Seite 1/2

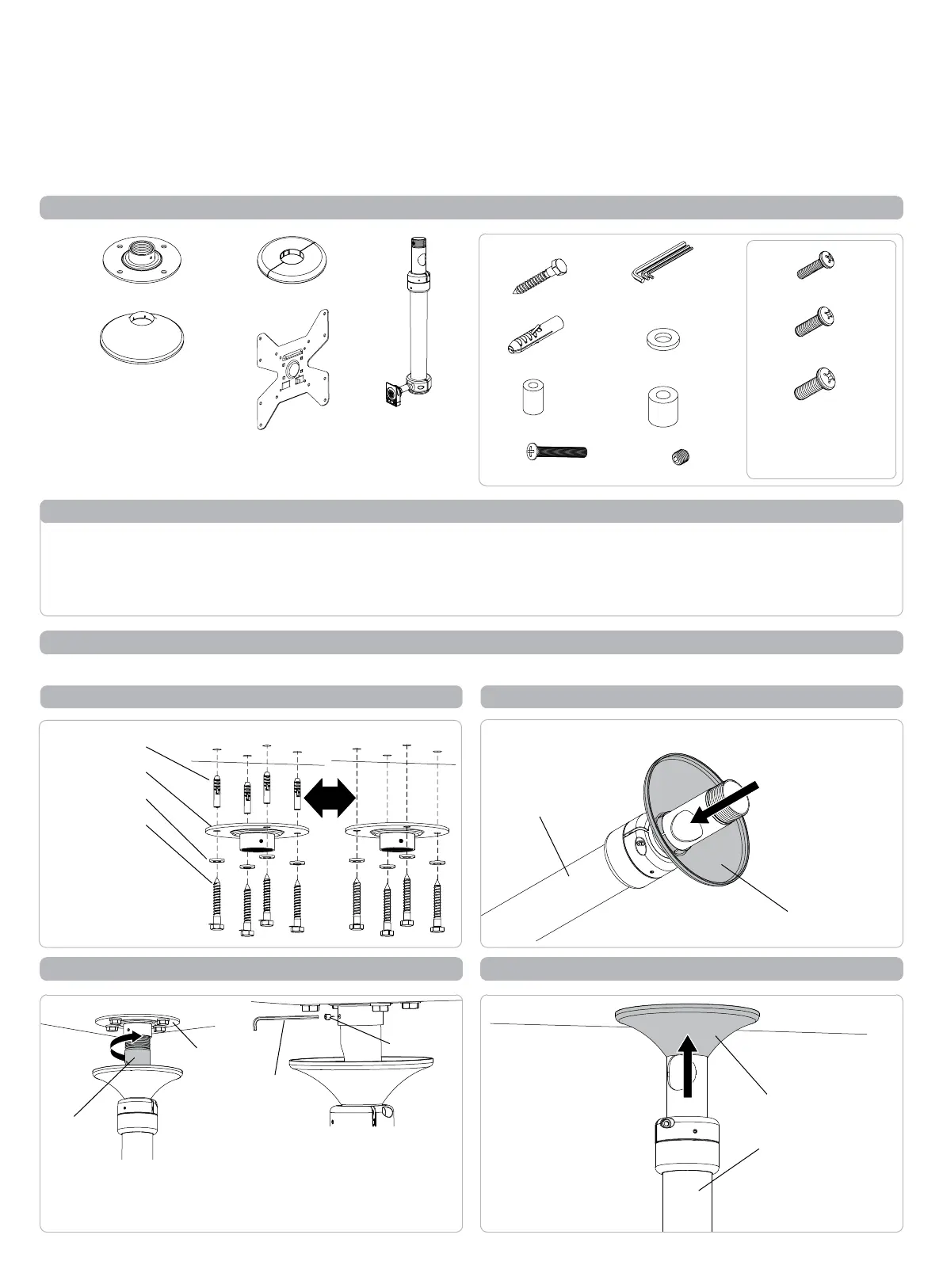

Component Checklist
Mounting Plate
Pole Assembly
VESA Plate
Mounting Plate Cover
Coach Screw (x4)
Nylon Anchor (x4)
M4/5/10 Washer
(x4 each)
Set Screw
M5/6 Spacer (x4)
M4/5 Spacer (x4)
(optional) Security Screw
2.5/3/5mm
Allen Key
M4x16/25mm (x4 each)
M5x16/25mm (x4 each)
M6x16/30mm (x4 each)
Pole Assembly
Mounting Plate Cover
PUSH
Screw Pole Assembly
A.
into Mounting Plate by
twisting top half of the
Pole Assembly only.
Pole
Assembly
Mounting Plate
TWIST
3mm
Allen Key
Set Screw
Insert Set Screw into the
B.
Mounting Plate to lock the
Pole Assembly in position.
Pole Assembly
Mounting Plate
Cover
PUSH
TH-1040-CTS
TH-1040-CTL
Ceiling Tilt Short Mount / Ceiling Tilt Long Mount
IMPORTANT INFORMATION:
Step 1. Check Components
Check you have received all parts against the Component Checklist and Hardware above.
Step 2. Install Mounting Plate
Step 4.
Attach Pole Assembly to Mounting Plate
! IMPORTANT - Install 1040 Ceiling Tilt Mount (Short/Long) as per Installation Instructions.
! This product supports a maximum load of 25kg (55lbs).
! This product supports VESA mounting hole configurations 75x75mm, 100x100mm, 200x100mm, 200x200mm.
! The manufacturer accepts no responsibility for incorrect installation.
Step 5. Position Mounting Plate Cover
Step 3. Install Mounting Plate Cover
Display Mounting
Screws
Hardware
Tools Required:
Power drill
•
7mm
(¼”)
drill bit
•
12mm
(½”)
masonry drill bit
•
Phillips head screw driver•
17mm (11/16
”) Socket Wrench or Shifter
•
Masonry Ceiling
Timber Ceiling
Using the Mounting
Plate
as a template, mark
out
and drill
4x Ø7mm
(¼”)
holes,
Ø12mm
(½”)
for masonry
ceilings,
70mm (2.75”) deep.
OR
Nylon Anchor
Mounting Plate
Coach Screw
M10 Washer
False Ceiling Cover
TH-1040-CTSW
TH-1040-CTLW
Installation Instructions
Set Screw
Cable
Access Port
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without noticed. Published 29.09.11 Š
Step 6. Set Height of Pole
Step 9. Cable Management
A.
Whilst supporting the lower half of Pole
Assembly loosen
the
Socket Cap Screws (x2).
B.
Slide Pole Assembly
to the desired height.
C.
Tighten the Socket Cap
Screws (x2) to set the height.
Step 8. Attach Display to Pole Assembly
A.
Feed cables down the Pole
Assembly through the Cable
Access Port.
B.
Pull cables out from lower
half of the Pole Assembly
and
connect to Display.
Step 10. Height Adjustment
Pole Joint
LOOSEN
TIGHTEN
FIRMLY
Socket Cap
Screw
5mm Allen Key
ADJUST
HEIGHT
A.
Loosen Socket Cap
Screws (x2) on the Donut.
TILT
PAN
Step 7. Attach VESA Plate to Display
TOP
Step 11. Final Adjustment
A. Pan,
Tilt and Rotate
the Display as
required.
D.
If necessary, centralise the
Pole Joint by tightening the
Set Screws (x2) to suit.
2.5mm
Allen Key
VESA plate
Mounting
Screws
B. Slide
the height of the
Donut
as required. Tighten
Socket Cap Screws to lock.
Step 12. Install False Ceiling Cover
PORTRAIT TO
LANDSCAPE
Choose the appropriate
mounting hardware to suit the Display.
Spacers
(optional, for recessed
mounting holes)
B. PUSH
HOOK
A.
(optional) Once Display
is attached, insert
Security Screw using
Phillips-head screwdriver
C.
Security
Screw
Socket Cap
Screw
5mm
Allen Key
VESA Ball Mount
Tension Plate at rear
3mm Allen Key
B.
If necessary tighten the VESA
Ball
Mount by adjusting the
Tension Plate. Using the 3mm
Allen Key adjust screws evenly.
Donut
SLIDE
False Ceiling
Cover
CLICK
Lower Pole
If the Lower Pole hangs below a suspended ceiling, clip the False
Ceiling Cover over the Lower Pole, and push up to the ceiling.
PUSH
